| Prod Model: |
P3000 |
| Phase: |
Single |
| Power Source: |
DC Power Source |
Product Description

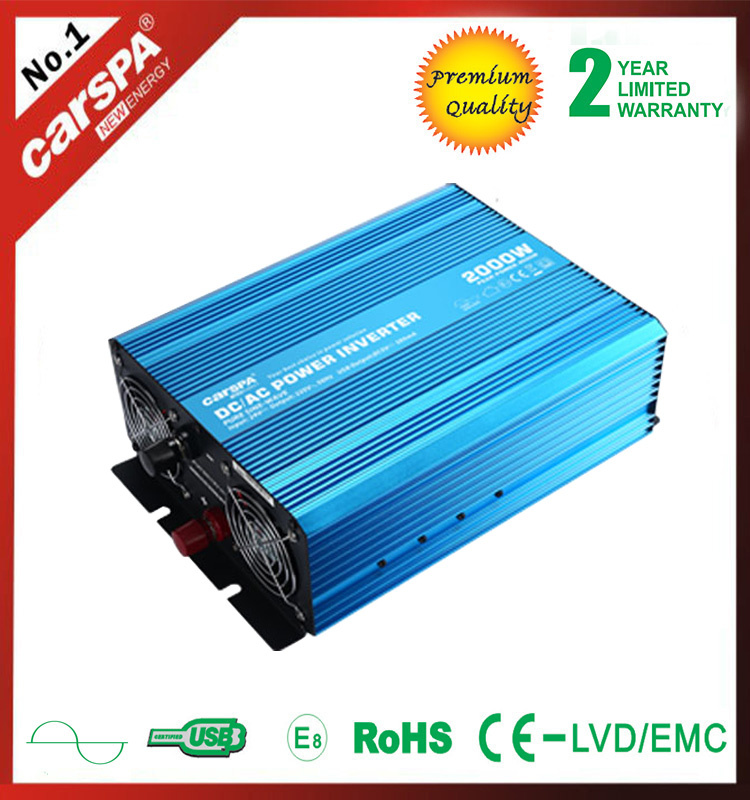

48v dc input 220c ac 3000w solar power inverter
CARSPA - P series new pure sine wave power inverter, it is featured as high reliability, and lower failure rate. It is better for use with air conditioner, motor, Air compressor, fridge etc. inductive loads.
Products Features:
1. Input& Output fully insolated
2. 100% pure sine wave output waveform: clear power for sensitive loads.
3. Small and light: with the technology of CPU centralized control and SMD inside.
4. Save the power and improves the working efficiency.
5. Low noise but high efficiency while working.
6. True sine wave output (THD less 2% typ.)
7. Advanced microprocessor.

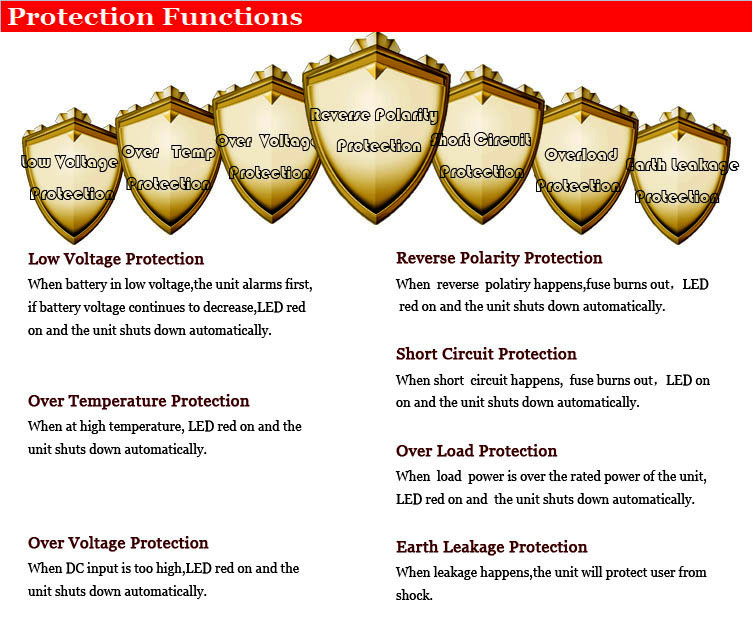

8. Input polarity reverse/under voltage alarm/under voltage shutdown/over voltage protections.
9. Output short circuit/ overload, over temperature, earth leakage protections.
10. Remote control: by external switch.
Usage:
Ideally suitable for Journeys, camping, Tents, boat trip, working on the way and everywhere, where is no electricity! Simply connect our PS series power inverter with 12/24/48V batteries, for example as in a car, motorcycle, and camper, trucker, boat and use 100-120V or 220-240V electrical appliances.
| Model | P3000U-121 | P3000U-241 | P3000U-481 | P3000U-122 | P3000U-242 | P3000U-482 |
| Input voltage | 12V | 24V | 48V | 12V | 24V | 48V |
| Input voltage range | DC11-15V | DC22-30V | DC44-60V | DC11-15V | DC22-30V | DC44-60V |
| Output voltage | 100~120V AC | 220~240V AC |
| Output frequency | 50/60Hz or 50/60 switch selectable |
| Output power | 3000W |
| Surge power | 6000W (for few seconds) |
| USB port | 5V 500mA or 1000mA (optional) |
| Output waveform | True sine wave |
| Unit Size | 37.2* 23* 10.8cm |
| N.W. / pcs | 5kg |
| Certification | CE, ROHS,E8 |
| Protection | Over-voltage protection, low-voltage alarm, under-voltage protection, over-heat protection, overload protection, short circuit protection, reverse polarity protection etc. |
Notes: 1. if you need 36V dc input, please tell our sales when placing order. 2. We also can offer OEM and ODM service. |
Why choose us1.Professional Manufacturer---12 years experience.
2.High Quality Products---Hot selling in European market.
3. Reliable Service---We serve for our clients with a golden team.
4. Powerful R&D Team---We have R&D centers in Shanghai & Shenzhen, which can provide the ODM service for you.
5. Advanced Technology---We have adopted the SMT & used the imported components.
6. Factory Management---5S System Management provides us with clean, ordered and joyful working environment.
7. Imported Main Components---We used the main components from oversea market, such as USA, JAPAN, TAIWAN, etc. FAQ
Question 1: Can I get one for sample?Yes,we are professional manufacturer mainly in power inverter for about 12 years.Our factory is located in Yueqing,Zhejiang,China.
Question 2: What's the price and MOQ?
Yes, we accept sample order or trial order for testing first.
Question 3: What's you delivery time?
Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.
Question 4: How about your payment and shipment?
It depends on your quantity, but usually, 7 days for sample order, 30-45days for batch order.
Question 5.How about your warranty?
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc. express;for batch order, by sea or by air( through our forward)
Payment: We accept T/T, Western Union,Paypal etc. terms of payment.Question 6.Do you have you own factory?
we provide1.5 and 2 years warranty for different products and whole life technical support.
Through unremitting efforts over manny years, the scale has leaping development. In 2010, we moved to our new building, and we changed our company name to "Zhejiang Carspa New Energy Co., Ltd" (former name is Wenzhou Carspa Electronics Technology Co., Ltd) in 2011.
We have research center in Shenzhen (Shenzhen Sunpulse Industrial Co., Ltd), and in 2012, we establish our own import & export company ( Wenzhou Sunpulse Import & Export Co., Ltd).
We are a high and new technology manufacturer and exporter in China which is mainly specialized in researching, developing, manufacturing and marketing of power inverter which including mini car inverter, smart inverter, modified sine wave power inverter, pure sine wave power inverter, battery charger, pure sine wave inverter with charger, modified sine wave inverter with charger, domestic and industrial use UPS, DC voltage booster, negative booster, stabilizer, air purifier & ozone sterilizer and other car electrical products, solar modules, PV on grid inverter, microinverter, High-tech off grid inverter, solar charge controller, solar and wind system and other solar related products. Also, we deal with some other low voltage electric appliances and power supply products.
Established in 2004, Carspa Company located in wenzhou, the largest manufacturing base of low voltage electric equipment in China, and has developed very quickly in this field. With the powerful technology support and advanced production and inspection devices, Carspa products have exported to many regions and many countries. Along with several leading experts, our company has developed a sound operation system consists of manufacturing, studying, researching, marketing, and servicing.
Our company has obtained ISO9001 quality certificate, CE-EMC/LVD, RoHS, E-MARK, SONCAP etc. Certification. And we have won numerous honors at home and abroad for our good quality, competitive prices and considerate services. Our motto is '' Harmony, Sincerity, Creativity and Win-Win ". We have been constantly pursuing to promote the development of the technology of the renewable energy, we try to make great efforts for saving global energy resources, making our future brighter.
We accept OEM and small trial orders, contact us now for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual benefit cooperation relationship with you.
