48V DC Power System / Switch Mode Power Supply
| Price: |
US $ 200-300/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
SPS30-48 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
19 Inches |
| High: |
1u |
| Warranty: |
1 Year |
| Input Voltage: |
220V |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Separate-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
RoHS |
| Output Type: |
DC Voltage |
| Output Power: |
1600W |
Product Description

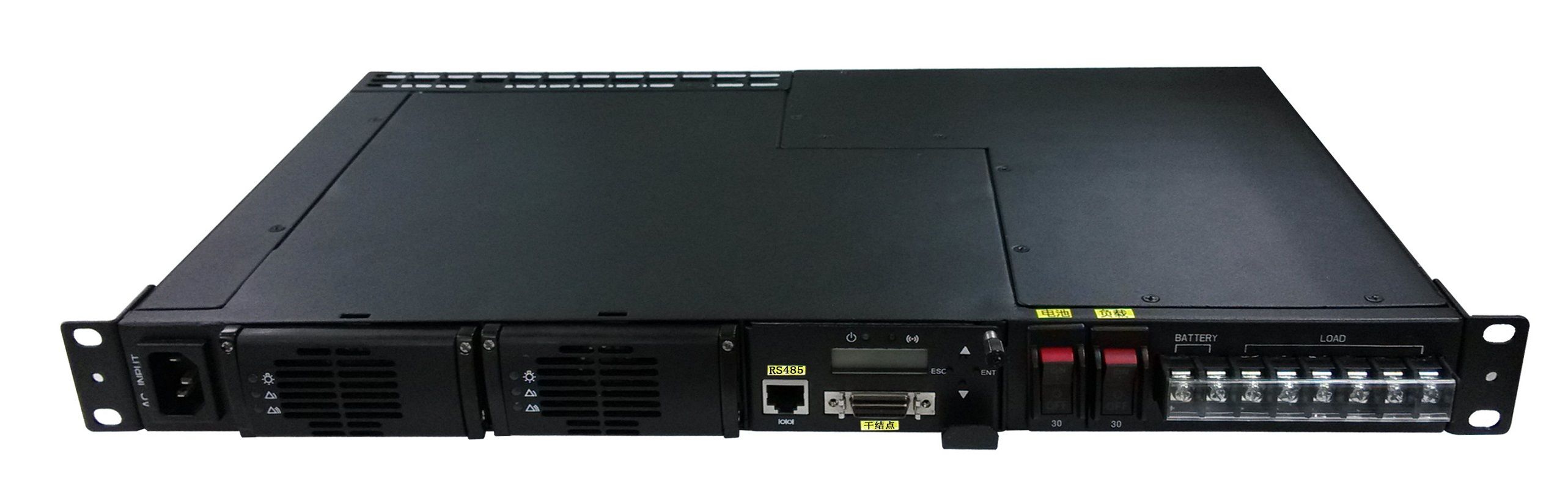

48V DC power system / switch mode power supply
Switching Power Supply
Capacity: 1600W
SWITCH POWER SUPPLY
1. AC Input: 176~300Vac
2. DC output: 42/53.5/58 Vdc
3. Output power: 1600w
4. Output current: 30A
5. LCD display
Main Features:
1. Small Footprint 1U
2. Universal AC Input range
3. Up to 92 % Efficiency
4. Operation temperature range from -40°C to +75°C
5. Active Load Sharing
6. Advanced Internal Monitoring
Application:
Telecommunication networks
Broadcasting and railway networks
Enterprise networks
Sizes:
44.3 * 482.6 * 255mm (front terminal )
44.3 * 482.6 * 280mm (back terminal )
Configuration:
2 rectifiers + 1 controller + 1 dc distirubtion
Standards:
UL60950 /EN60950
EMC EN55022
RoHS
| Specification | SPS30-48 | SPS40-48 | SPS75-48 | SPS100-48 | SPS120-48 | SPS150-48 |
| Input voltage | 176~300Vac | 176~300Vac | 176~300Vac | 176~300Vac | 176~300Vac | 176~300Vac |
| Output voltage | 42~58 Vdc | 42~58 Vdc | 42~58 Vdc | 42~58 Vdc | 42~58 Vdc | 42~58 Vdc |
| Output current (A) | 30A | 40A | 75A | 100A | 120A | 150A |
| Rated output power: | 1600W | 2400W | 4000W | 5800W | 6000W | 8000W |
| Load regulation | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
| Voltage regulation | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% |
| Operating temperature | -40~75degC | -40~75degC | -40~75degC | -40~75degC | -40~75degC | -40~75degC |
| Relative humidity | 90% RH | 90% RH | 90% RH | 90% RH | 90% RH | 90% RH |
| Dimension | 44.3*482.6*255mm | 44.3*482.6*255mm | 44.3*482.6*280mm | 44.3*482.6*409.2mm | 44.3*482.6*287.8mm | 88.1*482.6*315.5mm |
| Communication | RS232/RS485 | RS232/RS485 | RS232/RS485 | RS232/RS485 | RS232/RS485 | RS232/RS485 |
| Standard | JL60950/EN60950, EN55022, RoHS | JL60950/EN60950, EN55022, RoHS | JL60950/EN60950, EN55022, RoHS | JL60950/EN60950, EN55022, RoHS | JL60950/EN60950, EN55022, RoHS | JL60950/EN60950, EN55022, RoHS |
