Shenzhen Sanyi Technology Co., Ltd. >> 48V2a 48V3a 48V4a Desktop Poe Power Adapter

48V2a 48V3a 48V4a Desktop Poe Power Adapter

48V2a 48V3a 48V4a Desktop Poe Power Adapter
Price: US $ 4-5/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: AD-S1240B
Usage: CCTV
Output Type: AC or DC
Connection: Desktop
Type: OEM/ODM
Brand: Sanyi Power

Product Description

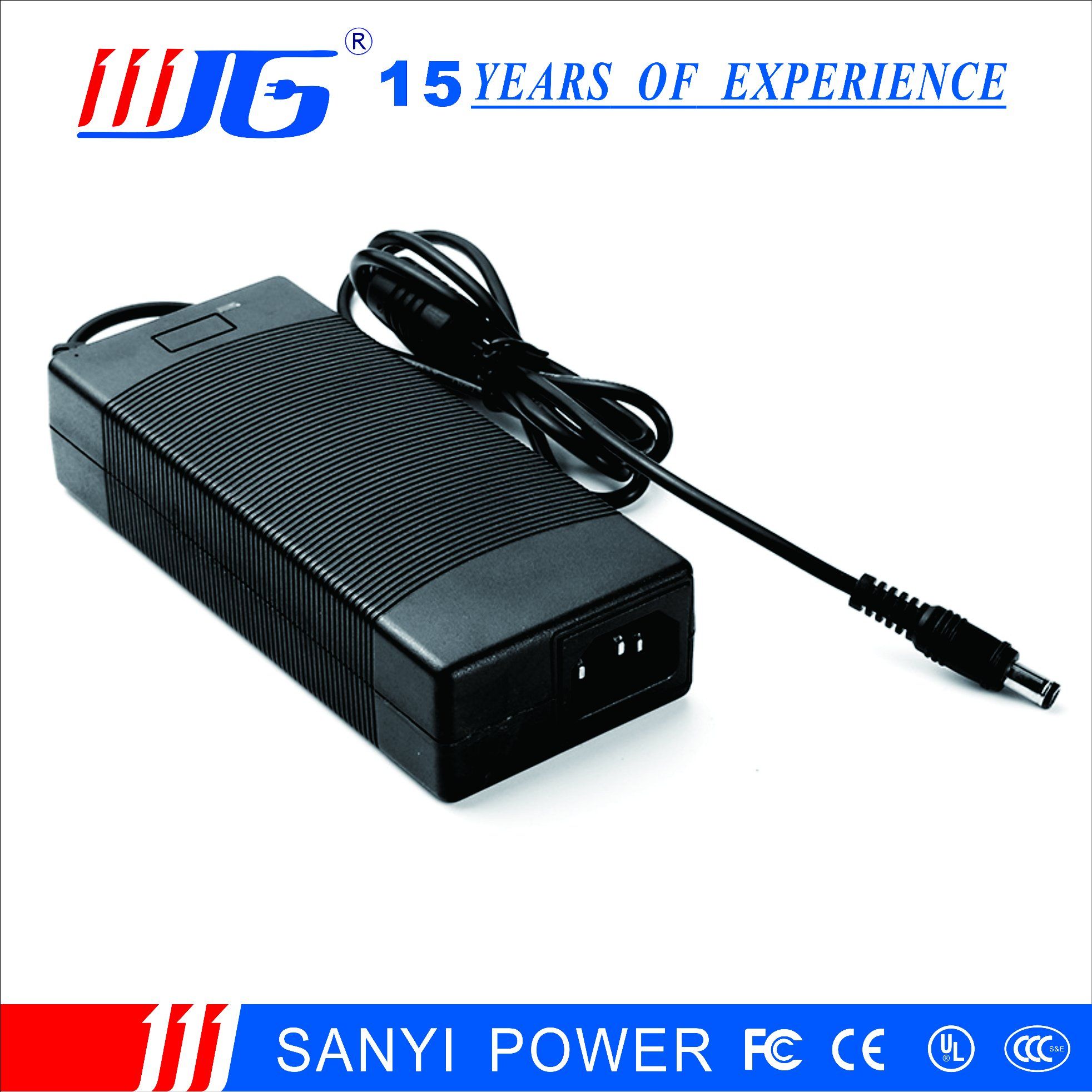

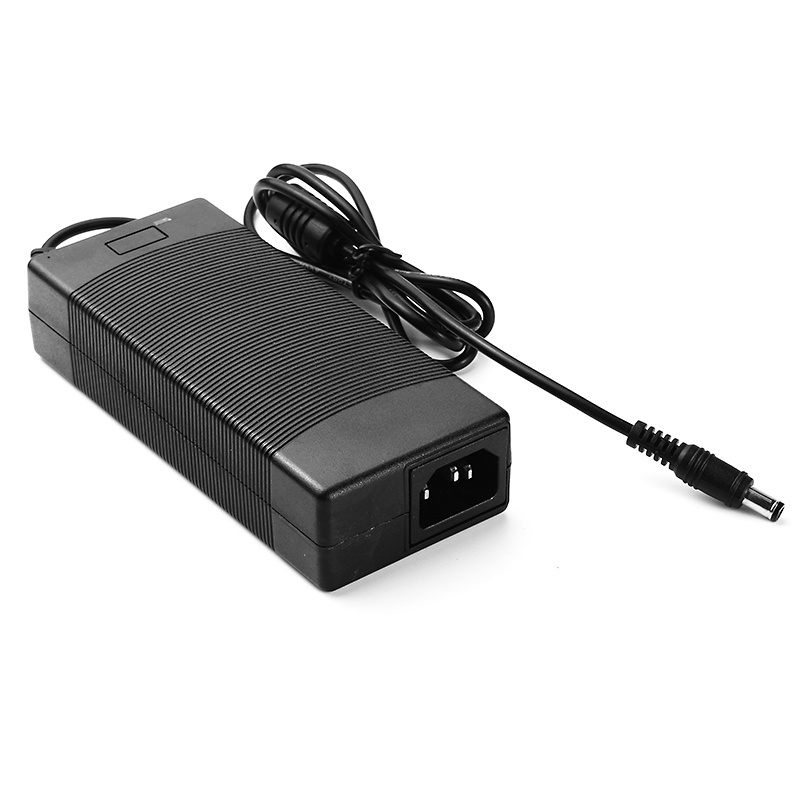

48VDC 2A/3A/4A POE Switch Power Supply Adapter
1.Product Description:
Product POE Switch  Power Adapter
Input VoltageAC 110V-240V 50/60Hz
Output VoltageDC48V
Output adjust range±10%
Output Power96W/144W/192w
Short circuit protectionRated output power: 110%~240%
Protection type:Hiccup mode,recovers automatically after fault condition is removed
Over current protectionRated output Voltage:115%~135% Protection mode: diode clamp
Efficiency ≥80%
Working frequency 50/60Hz
Surge current<50A
AC leakage current<10mA
High pressureInput -output 1.5KV,input -housing 1.5KV
Insulation resistance>=50MΩ
StandardGB4943,EN60950
Input3-PIN AC
Working  environment 0ºC~+50ºC
Weight 0.3kg
Valum130*60*32mm
2.Model:

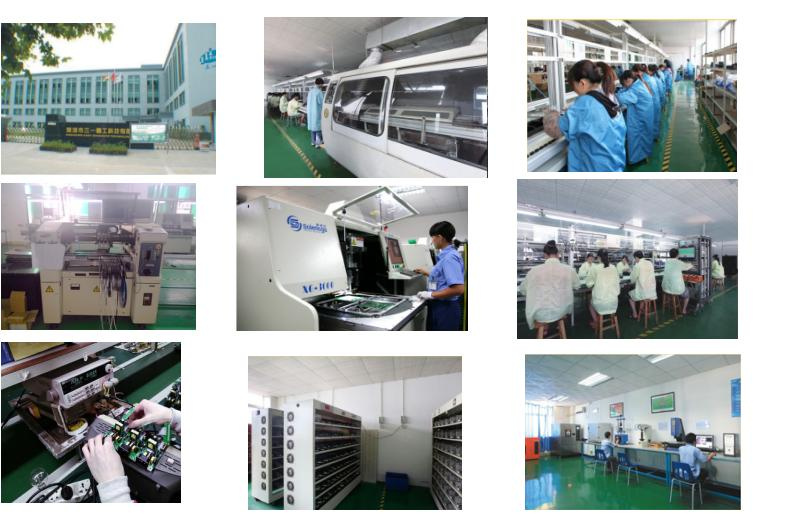

3.Factory Profiles



4.Certificate

5.Contact
SHENZHEN SANYI TECHNOLOGY CO.,LTD
Web: www.szsanyi.com
Attn:Ruby


Phone:+86 15207552952
Tel: +86 755 28986673
Add: Floor 4, Block 1,HongJiaTai Industrial Area, XinTun Village,AiLian Community,  LongGang District,Shenzhen 518172,China

SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.

We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.

We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
