48VDC Power System/ Switch Mode Power Supply /Rectifier System (CE, SGS, ISO)

48VDC Power System/ Switch Mode Power Supply /Rectifier System (CE, SGS, ISO)
Price: US $ 200-300/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union
Prod Model: C4830
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High: 1u
Product Name: Switch Mode Power Supply
Warranty: 1 Year
Input Voltage: 220V
Connection Mode: Parallel Switching Power Supply
Starting Mode: Separate-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CCC
Output Type: DC Voltage
Output Power: 1600W
Brand: Jetpower

Product Description

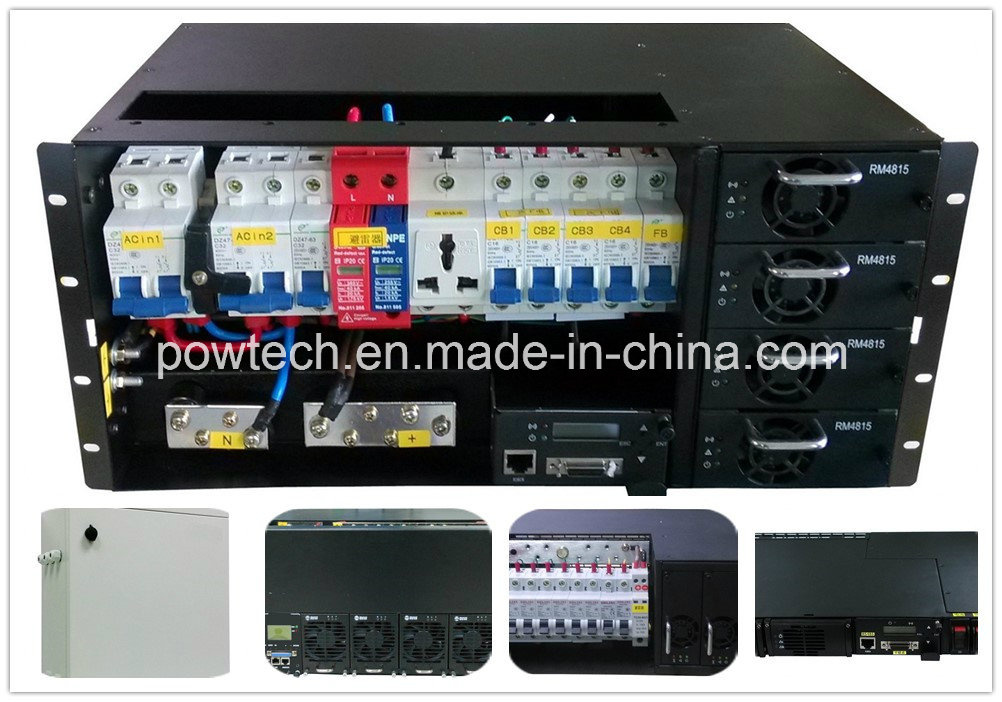

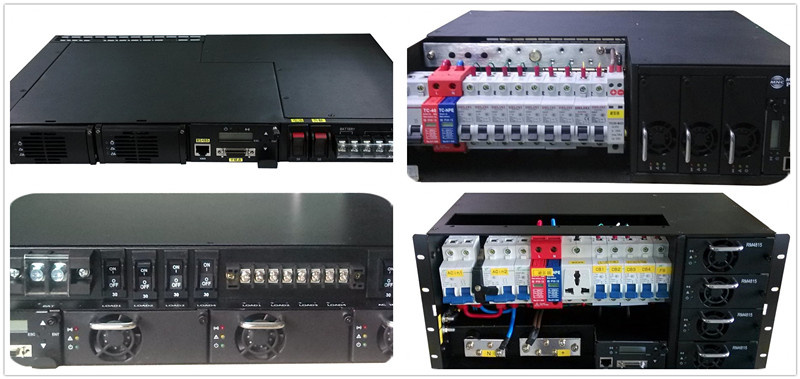

48VDC Power System/ Switch Mode Power Supply /Rectifier System (CE, SGS, ISO)

Capacity: 1600~12600W

1. AC Input: 176~300Vac
2. DC output: 42/53.5/58 Vdc
3. Output power: 1600w
4. Output current: 30A, 60A, 90A, 120A, 200A, 210A
5. LCD display


Main Features:

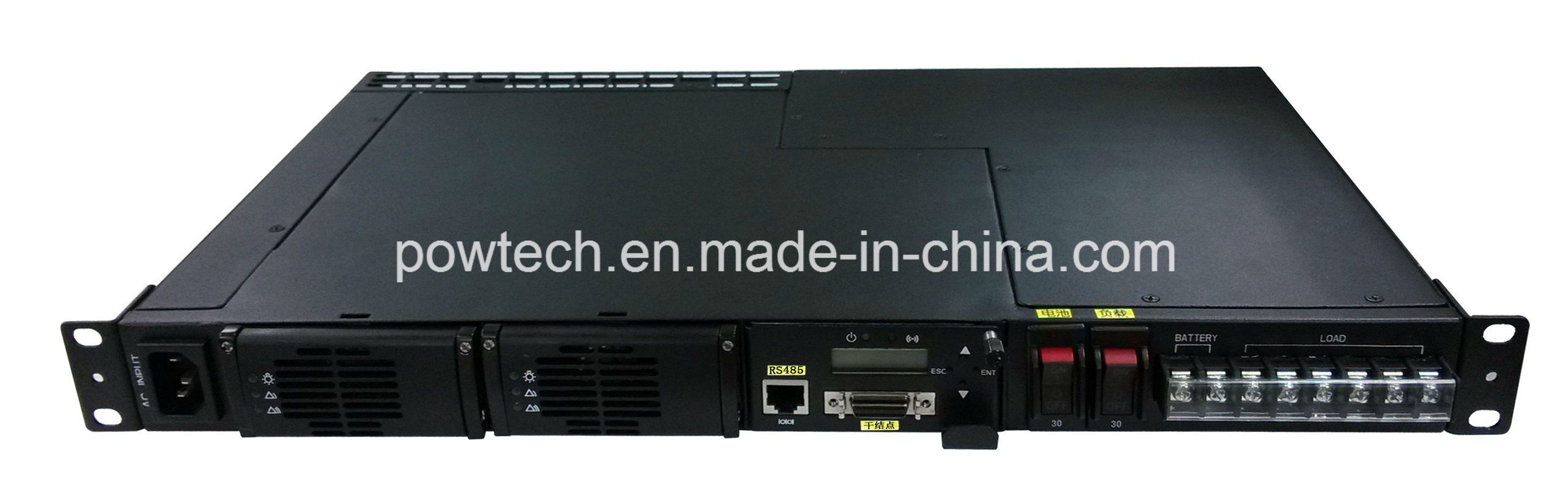

        1U rectifier power shelf up to 1600W

Application

Configuration:
2 rectifiers + 1 controller + 1 dc distirubtion

Standards:
UL60950 /EN60950
EMC EN55022
RoHS





1 Input
Input Voltage176~300Vac full load
90-176Vac Derating load
Frequency45 Hz-65 Hz
Inrush Current (maximum)38A
Power Factor≥0.99
Efficiency≥91%








2 Output
Vo range42/53.5/58 (Vdc)
Vo Regulation -0.5/+0.5 (%)
Output Current75A
Current Share-5/+5 (%)






3 Environment
Operating Temperature-40 ºC - 75 ºC
Humidity10% - 90% Non Condensing
CoolingForced Air





4 Configuration
ControllerSC Controller
RectifierCR2000-48
DC Distribution1*75A Load
1*75A Battery
1*LVD control
4*Alarm Relay Output(programmable)
5 Other information
Dimension44.3*482.6*250mm(front access)
44.3*482.6*280mm(rear access)
StandardsSafety UL60950/EN60950
EMI EN55022
Environment RoHs Compliant
CommunicationRS232/RS485
Rectifier No2




Founded in 1994, POWTECH invested by Taiwan, is an independently owned international corporation dedicating to develop, produce & distribute JETPOWER brand power supplies and OPTELEC brand optical cables.

The first JETPOWER branded online high frequency UPS was developed in 1994. Driven by customer requirements, we have developed OFF LINE UPS, Line-interactive UPS, Industrial Online UPS, outdoor UPS, telecom inverter, power inverter and home inverter. Through a decade of great efforts, we have made our JETPOWER branded power supplies widely applied in the fields of finance, telecom, electric power, petrochemistry, custom and military field etc, and have been honorably commented by clients. Besides, we also cooperate with many famous power supply companies by OED/ODM, and now our products have been sold worldwidely, including Europe, South America, Africa, Middle East, Asia etc.

As the fast development of power supply, We also expand our business to optical cable and accessories. In 2006, we have set up our own OPTELEC brand to develop, manufacture and distribute ADSS cable, OPGW cable, optical cable, Fusion Splicer, OTDR, Terminal tool kit, ADSS fittings, OPGW fittings, link fittings, wire mesh cable tray, preformed cable tray, cable trunking, cable ladders, STG modules, STG magazines and accessories. Till now, our OPTELEC brand optical cable and accessories have been used in more than 20 countries' telecom lines' construction and power transmission lines' construction.

Powtech has passed the ISO9001 international quality system certification and has established a complete quality system from material source, process, assembling to testing. All Powtech products have been approved by KEMA, SGS and CE (LVD/EMC) or by customer-appointed safety agencies.

Not only do we pride ourselves on competitive price, Advanced technology and top quality products but also we have value-added technical support. We can dispatch our engineer to customer's site for site installation and training, Or we can provide online service to solve any problem during installation & operation. On the priniciple that there is no customer too big or too small, Every customer deserves most professional service. POWTECH people anticipate growing and prospering with you, Embarking on a way of success.
