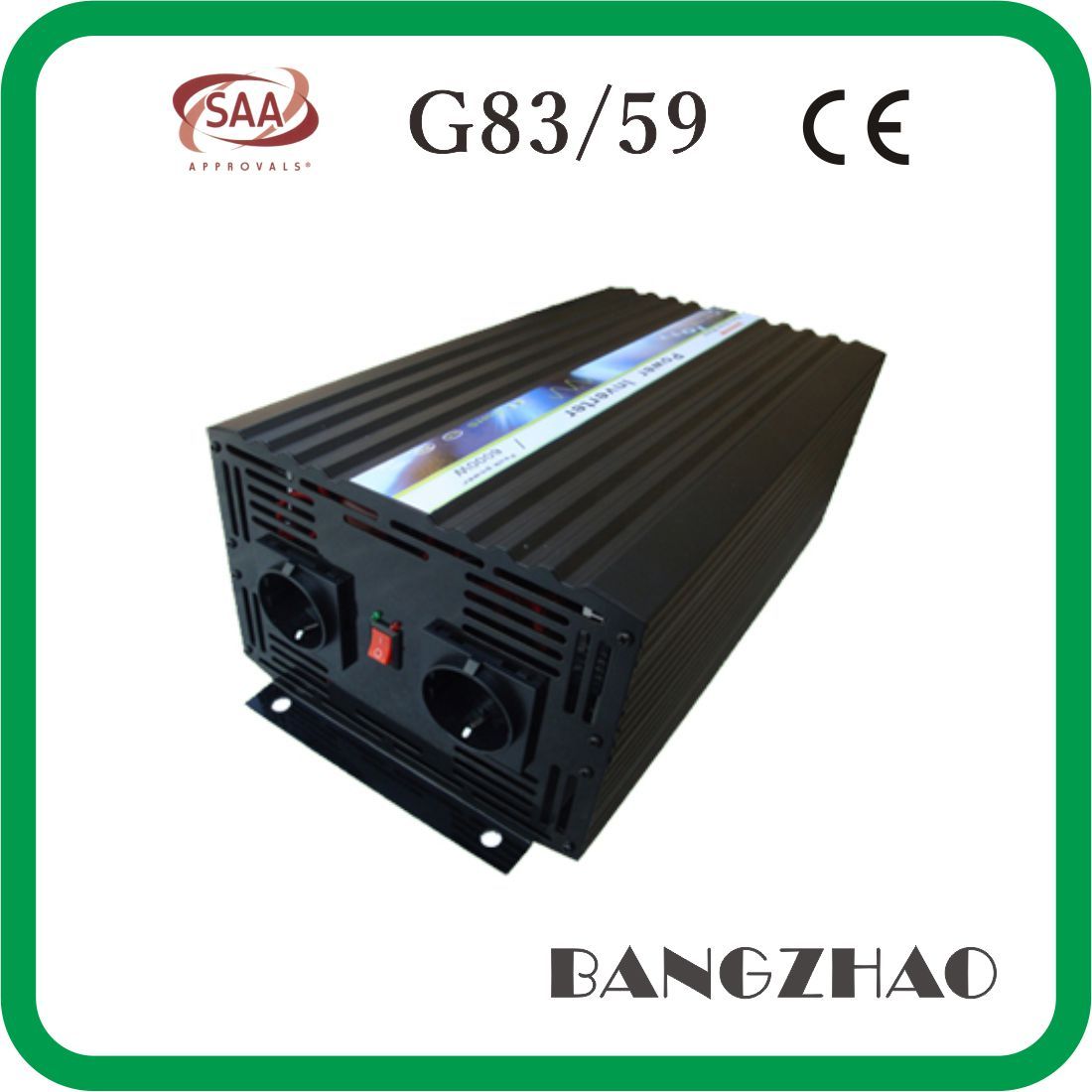

48VDC to AC Sine Wave Inverter with Charger

Prod Model:	BZH-3000W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Wave Form:	Pure Sine Wave
Input Voltage:	12V,24V,48V Optional
Output Voltage:	110V,120V,220V,230V,240V Optional
Color:	Black

Product Description

48VDC to AC Sine Wave Inverter for Solar Home System
Products Features:
-       High Transform efficiency, fast start
-       Pure sine wave output waveform
-       Strong adaptability and stability
-       With automatic over-current and output short circuit protection to avoid damage the equipment
-       Safe and reliable with built in fuse


Function details:


Model	BZH-3000-121	BZH-3000-241	BZH-3000-481	BZH-3000-122	BZH-3000-242	BZH-3000-482
Rated Power	3000W	3000W	3000W	3000W	3000W	3000W
Max. Continuous Power	6000W	6000W	6000W	6000W	6000W	6000W
DC input voltage	12V	24V	48V	12V	24V	48V
AC output voltage	110VAC			220VAC
No-load current	1.3A	0.65A	0.32A	1.3A	0.65A	0.32A
AC output frequency	50Hz/60HZ
AC output waveform	Pure Sine Wave
Waveform distortion	THD<2%(linear load="" p="">
Efficiency	>85%	>88%	>90%	>85%	>88%	>90%
DC input voltage range	10.5-15V	21-30V	42-60V	10.5-15V	21-30V	42-60V
Low Voltage Alarm	10.5+/-0.3V	21+/-0.3V	42+/-0.3V	10.5+/-0.3V	21+/-0.3V	42+/-0.3V
Low Voltage Shutdown	10+/-0.3V	20+/-0.3V	40+/-0.3V	10+/-0.3V	20+/-0.3V	40+/-0.3V
Over Voltage Protection	15.5+/-0.5V	31+/-1V	62+/-2V	15.5+/-0.5V	31+/-1V	62+/-2V
Low Voltage Recovery	12+/-0.5V	24+/-1V	48+/-2V	12+/-0.5V	24+/-1V	48+/-2V
Over Voltage Recovery	14.8V	29.5V	59V	14.8V	29.5V	59V
Protective Function	Low/Over voltage: LED  Red light, automatic recovery
	Over load: LED  Red light, automatic recovery
	Over temperature : LED  Red light, automatic recovery
	Short circuit: LED  Red light, automatic recovery
	Input reverse connection: Fuse burn-out
Working Temp.	0ºC-40ºC
Storage Temp. Humidity	-30ºC-70ºC
Dimension	480*240*140mm
Wight	10.5kg

Q 1. What's the payment term?
A. We accept TT,Western Union,Paypal,MoneyGram.

Q 2.How's the delivery time ?
A. Is due to order quantity, usually it will take about 3-7days for sample production,

Q 3.Tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use honeycomb carton and pallet or  wooden case for protection.

Q 4.Would you accept to use our logo ?
A.It's no problem to do OEM.

Q 5.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 2000pcs  and big capacity near 500pcs.

Q 6.Where is your market?
A. Our products are popular in Australia,South America,Philippines,Italy, America, Pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 7. What is the warranty period ?
A. Normally 1 year.

OEM Services
1.Logo
Please offer us your own high resolution logo in JPG format,there should be two colors at most in the logo and there should be no gradient effect in the logo.
2.Label
Please offer us your own model numbers.
3. Manual
Please offer us the finished manual file that can be printed directly.

Lead Time
1.Sample orders will be delivered from our factory within 3-7 working days.
2.General orders will be delivered from our factory within 15-30working days.
3.Big orders will be delivered from our factory within 45 working days at most

Shipment
1.By EMS,DHL,FedEx,TNT,UPS or other express.
2.By our forwarding agent(by air or by sea).
3.By your own forwarding agent.
4.By domestic forwarding agents to any city in China.
