| Prod Model: |
Y2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frane: |
71-132 |
| Power: |
0.25kw-5.5kw |
| Core Wire: |
Copper |
| Mounting: |
B3, B35, B5, B14 |
| Protection Class: |
IP44 |
| Insulation Class: |
F |
| Application: |
Universal |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Species: |
Yl |
| Number Of Poles: |
2, 4 |
| Certification: |
CE |
| Brand: |
Qizhen |
Product Description

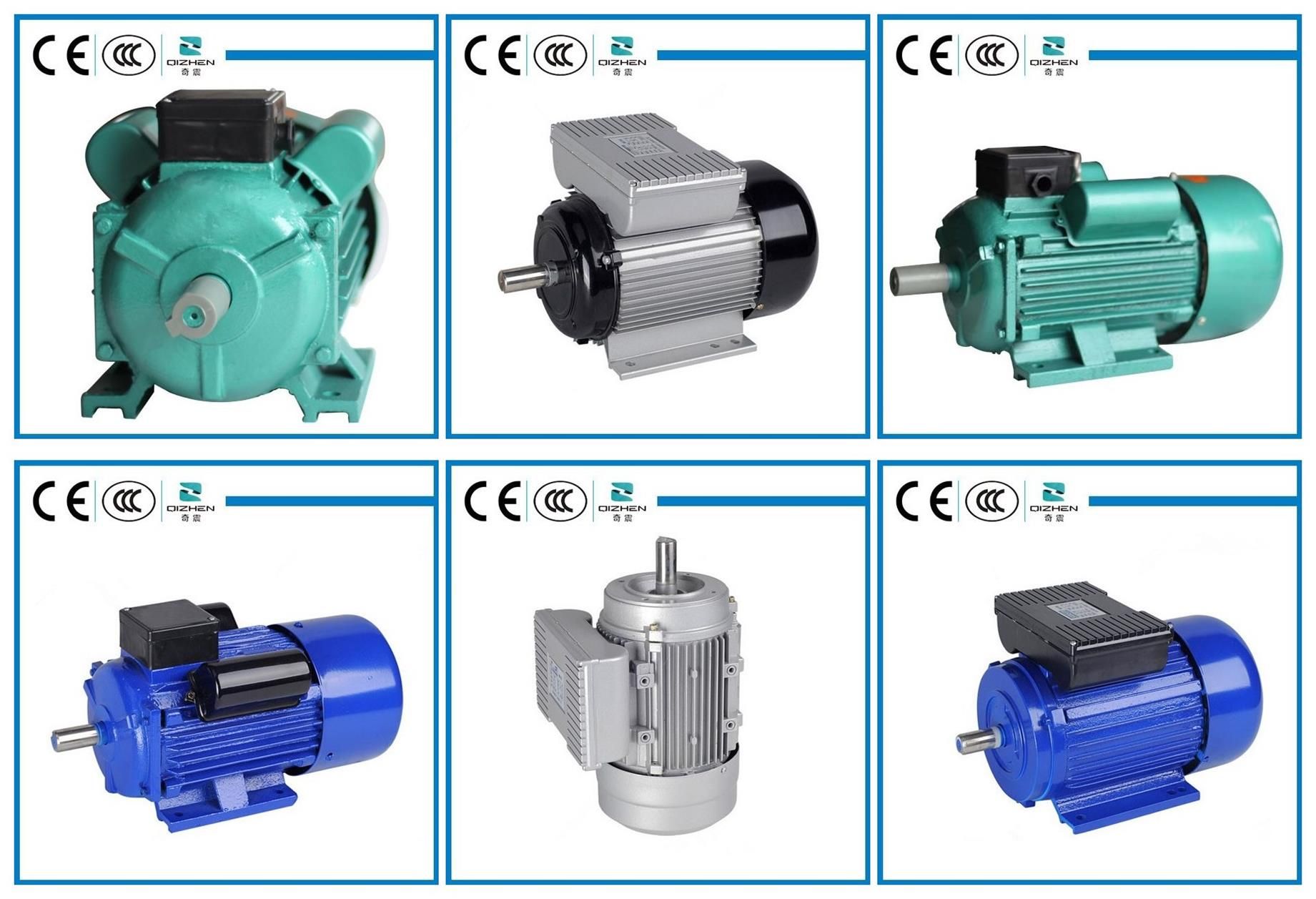

4KW 220V single phase two-value capacitor electric motor for air compressor
YL series electric motor is designed and manufactured in according with national standard, newly developed by our company with the advantages of low noise, compact structure, light weight, easy maintenance, etc.
Details:
- Protection Class: IP44/IP54/IP55
- Rated Voltage: 115/230,220V
- Rated Frequency: 6 0 Hz(50Hz)
Application Scope:
These motors are widely used in air compressors, pumps, fans, refrigeration, medical instruments,small-size machines, etc, especially for occasion where only single-phase power supply is available.
Technical Data:
Model | Power ( KW) | Current ( A) | Speed (r/min ) | Efficiency Eff % | power factor | locked rotor torque
Rated torque | LRC
A |
| YL 711-2 | 0.37 | 2.2 | 2800 | 67 | 0.92 | 1.8 | 16 |
| YL 712-2 | 0.55 | 3.9 | 2800 | 70 | 0.92 | 1.8 | 21 |
| YL 801-2 | 0.75 | 4.9 | 2800 | 72 | 0.95 | 1.8 | 29 |
| YL 802-2 | 1.1 | 7.0 | 2800 | 75 | 0.95 | 1.8 | 40 |
| YL 90S-2 | 1.5 | 9.4 | 2800 | 76 | 0.95 | 1.7 | 55 |
| YL 90L-2 | 2.2 | 13.7 | 2800 | 77 | 0.95 | 1.7 | 80 |
| YL100L1-2 | 3 | 18.2 | 2800 | 79 | 0.95 | 1.7 | 110 |
| YL112M-2 | 4 | 26.6 | 2850 | 77 | 0.82 | 2.2 | 175 |
| YL 711-4 | 0.25 | 2.0 | 1400 | 62 | 0.92 | 1.8 | 12 |
| YL 712-4 | 0.37 | 2.8 | 1400 | 65 | 0.92 | 1.8 | 16 |
| YL 801-4 | 0.55 | 4.0 | 1400 | 68 | 0.92 | 1.8 | 21 |
| YL 802-4 | 0.75 | 5.1 | 1400 | 71 | 0.92 | 1.8 | 29 |
| YL 90-4 | 1.1 | 7.3 | 1400 | 73 | 0.95 | 1.7 | 40 |
| YL 90-4 | 1.5 | 9.7 | 1400 | 75 | 0.95 | 1.7 | 55 |
| YL 100L1-4 | 2.2 | 13.9 | 1400 | 75 | 0.95 | 1.7 | 80 |
| YL 112M-4 | 3 | 18.6 | 1400 | 77 | 0.95 | 1.7 | 110 |
| YL132S-4 | 4 | 27.1 | 1400 | 78 | 0.77 | 2.2 | 175 |
| YL132M-4 | 5.5 | 31.2 | 1400 | 78 | 0.79 | 2.2 | 200 |
Packing :
To avoid damp, inner layer wrapped with plastic paper
To lessen vibration, middle layer filled with foam
To avoild squeeze, motor are packed with plywood or wooden case Customized package is also accept Pre-sales service:
- We value every inquiry sent to us, ensure quick competitive offer within 12 hours.
- We cooperate with customer to design and develop the new products.
Provide all necessary document.
- We are a sales team, with all technical support from engineer team.
- 100% test after each process and final test before packing
After sales service:
- We respect your feed back after receive the goods.
- We provide 12-24 months warranty after goods arrive.
- We promise all spare parts available in lifetime use.
Our Company
1.We are professional manufacturer with more than 17 years experience in Electric motor
2. We are Alibaba Assessed Gold Supplier and Trade Assurance.
3. Every year 500,000 to 600,000pcs of electric motor were exported to others countries.
4.we test the material before production and three to four times when producing to ensure the goods in good quality,also we produce according to your quirement
5.Best production capability,best quality control,best service
6.we can be your OEM manufacturer with your authorization of brand.
There are some questions you may come up with :
1. Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.
2. Q: Is it all right to make customers' own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
3. Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
4. Q: How long is your warranty?
A: One year after receive B/L.
5. Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
