| Prod Model: |
YC63~YC160 |
| Frane: |
71-132 |
| Power: |
0.25kw-5.5kw |
| Core Wire: |
Copper |
| Motor Housing: |
Cast Iron |
| Mounting: |
B3, B35, B5, B14 |
| Protection Class: |
IP44 |
| Insulation Class: |
F |
| Application: |
Universal |
| Operating Speed: |
High Speed |
| Number Of Stator: |
Single-Phase |
| Rotor Structure: |
Squirrel-Cage |
| Casing Protection: |
Closed Type |
| Starting Mode: |
y-δ Starting |
| Species: |
YC |
| Number Of Poles: |
2, 4 |
| Certification: |
CE |
| Brand: |
Qizhen |
Product Description

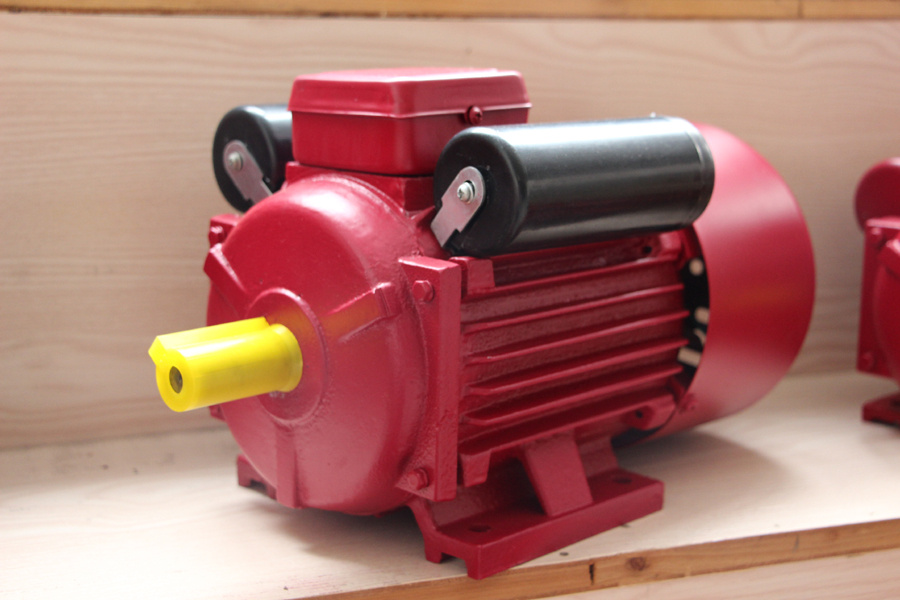

OEM Single Phase Dual Capacitor Electric Motor With CE Certificate
YC series single phase dual -capacitor induction electric motor is designed and manufactured in according with national standard, with the advantages of low noise, compact structure, light weight, easy maintenance, etc.
Details:
Core Wire:100%Copper
Protection Class: IP44/IP54/IP55
Cooling Type: IC0141
Insulation Class: B or F
Operation Type: S1
Rated Voltage: 115/230,220V
Rated Frequency: 6 0 Hz(50Hz)
Application Scope:
These motors are widely used in air compressors, pumps, fans, refrigeration, medical instruments,small-size machines, etc, especially for occasion where only single-phase power supply is available.
Technical Data:
Model | Power ( KW) | Current ( A) | Speed (r/min ) | Efficiency Eff % | power factor | locked rotor torque
Rated torque | LRC
A |
| YL 711-2 | 0.37 | 2.2 | 2800 | 67 | 0.92 | 1.8 | 16 |
| YL 712-2 | 0.55 | 3.9 | 2800 | 70 | 0.92 | 1.8 | 21 |
| YL 801-2 | 0.75 | 4.9 | 2800 | 72 | 0.95 | 1.8 | 29 |
| YL 802-2 | 1.1 | 7.0 | 2800 | 75 | 0.95 | 1.8 | 40 |
| YL 90S-2 | 1.5 | 9.4 | 2800 | 76 | 0.95 | 1.7 | 55 |
| YL 90L-2 | 2.2 | 13.7 | 2800 | 77 | 0.95 | 1.7 | 80 |
| YL100L1-2 | 3 | 18.2 | 2800 | 79 | 0.95 | 1.7 | 110 |
| YL112M-2 | 4 | 26.6 | 2850 | 77 | 0.82 | 2.2 | 175 |
| YL 711-4 | 0.25 | 2.0 | 1400 | 62 | 0.92 | 1.8 | 12 |
| YL 712-4 | 0.37 | 2.8 | 1400 | 65 | 0.92 | 1.8 | 16 |
| YL 801-4 | 0.55 | 4.0 | 1400 | 68 | 0.92 | 1.8 | 21 |
| YL 802-4 | 0.75 | 5.1 | 1400 | 71 | 0.92 | 1.8 | 29 |
| YL 90-4 | 1.1 | 7.3 | 1400 | 73 | 0.95 | 1.7 | 40 |
| YL 90-4 | 1.5 | 9.7 | 1400 | 75 | 0.95 | 1.7 | 55 |
| YL 100L1-4 | 2.2 | 13.9 | 1400 | 75 | 0.95 | 1.7 | 80 |
| YL 112M-4 | 3 | 18.6 | 1400 | 77 | 0.95 | 1.7 | 110 |
| YL132S-4 | 4 | 27.1 | 1400 | 78 | 0.77 | 2.2 | 175 |
| YL132M-4 | 5.5 | 31.2 | 1400 | 78 | 0.79 | 2.2 | 200 |
OUR COMPANY| professional manufacturer with more than 17 years experience |
| Alibaba Assessed Gold Supplier and Trade Assurance |
| 500,000 to 600,000pcs of electric motor were exported annually |
| several tests to ensure the quality |
| Best production capability,best quality control,best service |
| we can be your OEM manufacturer with your authorization of brand. |
Frequently asked Question
Q: What is your MOQ of this item?
A: Our MOQ is a full 20ft container, but for the first time cooperation, we accept samples order to check quality.
Q: Is it all right to make customers' own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
Q: What are your payment terms?
A: 30% T/T deposit, 70% balance before shipment or L/C at sight.
Q: How long is your warranty?
A: One year after receive B/L.
Q: What is the delivery time?
A: 25-30 days after receiving your L/C or T/T deposit.
Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.
Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.
With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.
In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
