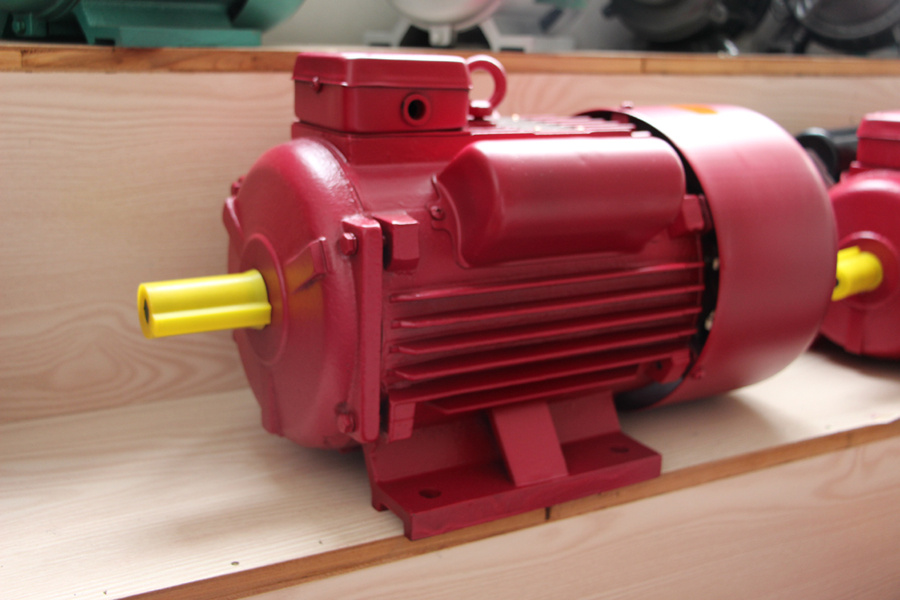

YL series double-value capacitor motor

YL series double-value capacitor motor
Price: US $ 45/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T
Prod Model: YL63~YL160
Frane: 71-132
Power: 0.25kw-5.5kw
Core Wire: Copper
Mounting: B3, B35, B5, B14
Protection Class: IP44
Insulation Class: F
Application: Universal
Operating Speed: High Speed
Number Of Stator: Single-Phase
Rotor Structure: Squirrel-Cage
Casing Protection: Closed Type
Starting Mode: y-δ Starting
Species: Yl
Number Of Poles: 2, 4
Certification: CE
Brand: Qizhen

Product Description

YL series single phase capacitor start and capcitor running electric motor are suitable for air compressor, water pump and other equipment requiring high torque.
This series electric motor features by its high starting performance, overload capability, power factor and efficiency, low noise, light weight, little shape and easy maintance.

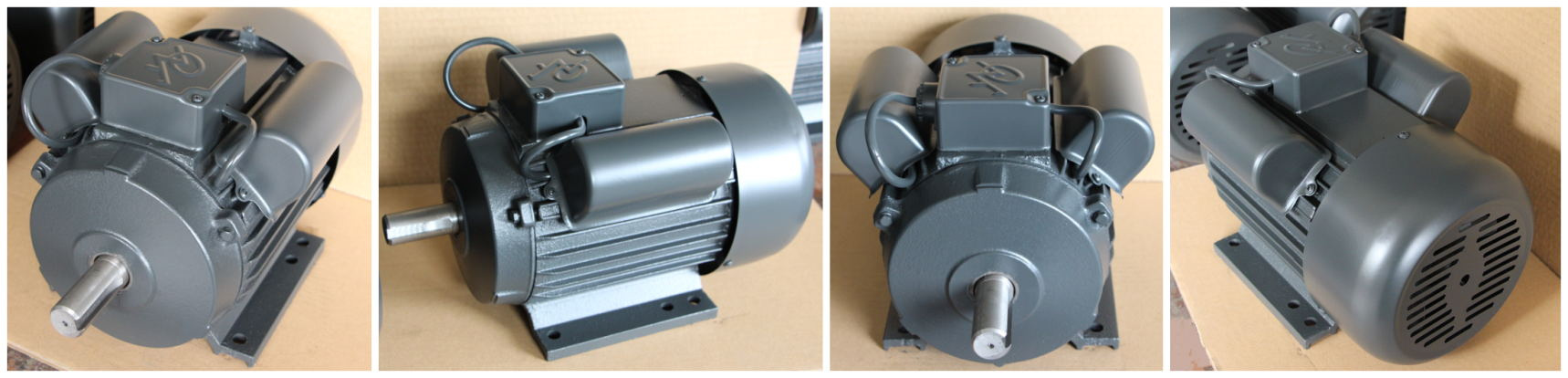

YL Series Single Phase Electric Ac Induction Motor



Protection Class:IP44/IP54/IP55          Cooling Type:IC0141
Insulation Class:B or F                         Operation Type:S1
Rated Volt.:115/230,220V                  Rated Frequency:60Hz(50Hz)
Shell Material:casting iron, aluminum alloy(only used below 100).
Core Wire: 100% copper wire

Technical Data (220V/50Hz)

Model

Power
( KW)

Current    ( A)

Speed
(r/min )

Efficiency
  Eff %

power factorlocked rotor torque
Rated torque
 LRC
   A
YL 711-20.372.22800670.921.816
YL 712-20.553.92800700.921.821
YL 801-20.754.9280072 0.951.829
YL 802-21.17.02800750.951.840
YL 90S-21.59.4280076 0.951.755
YL 90L-22.213.72800770.951.780
YL100L1-2318.22800790.951.7110
YL112M-2426.62850770.822.2175
YL 711-40.252.01400620.921.812
YL 712-40.372.81400650.921.816
YL 801-40.554.01400680.921.821
YL 802-40.755.11400710.921.829
YL 90-41.17.31400730.951.740
YL 90-41.59.71400750.951.755
YL 100L1-42.213.91400750.951.780
YL 112M-4318.61400770.951.7110
YL132S-4427.11400780.772.2175
YL132M-45.531.21400780.792.2200

Packing :

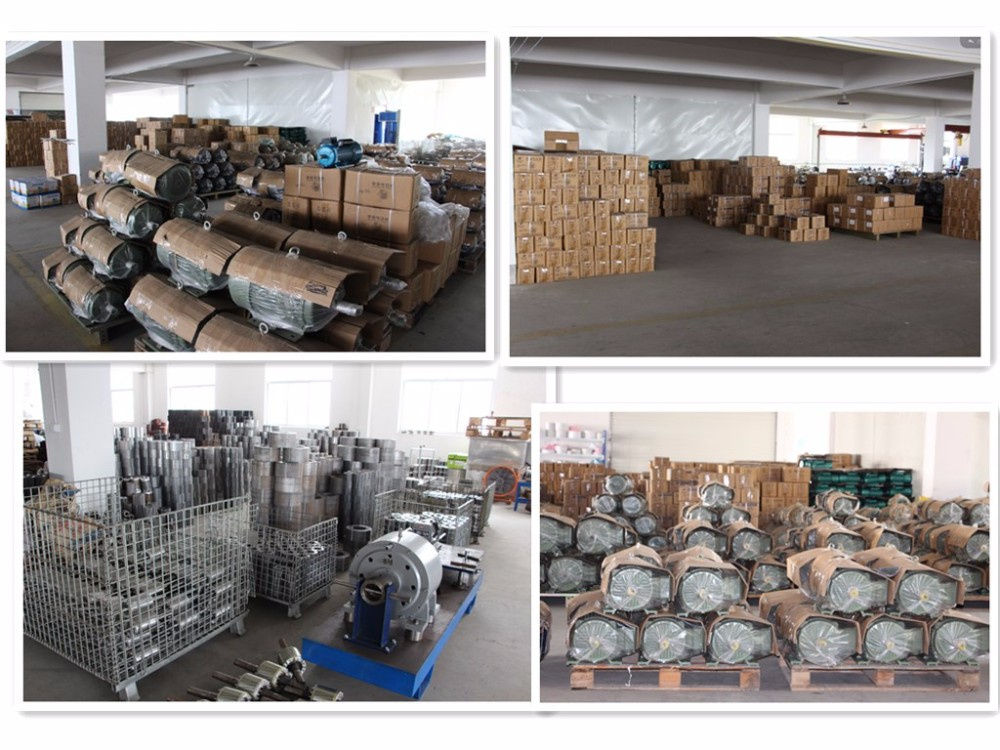

Company  infromation

    professional manufacturer with more than 17 years experience
    Alibaba Assessed Gold Supplier and Trade Assurance
    500,000 to 600,000pcs of electric motor were exported annually
   several tests to ensure the quality
   Best production capability,best quality control,best service
   we can be your OEM manufacturer with your authorization of brand.


Established in 2014, Taizhou Qizhen Mechanical and Electrical Technology Co., Ltd is a new well-known professional electric motor and pump manufacturer in Zhejiang, which is an enterprise integrating R&D, production, import and export. Our products are widely exported to overy fifty countries and regions such as east Europe, South America, Southeast Asia and Middle East, Africa; Meanwhile, we have kept well touch with dozens of trade companies at home and abroad for cooperation relationship.

Our main products include electric motor type with Y series, Y2 series and YS series of three-Phase asynchronous electric motors, YC series, YL series, JY Series and YY series of single-Phase electric motors, and other derived electric motors, such as YCT series electromagnectrism speed regualating motors, YEJ series electromagnetic-brake motor, YVF2 variable-frequency speed regualating motor, YB2 explosion proof electric motor, YD Double-speed electric motor, YSF/YT series energy-saving induction motor and so on.

With own R&D center, our company has rich technology power, advanced developing measures, highly effective production facilities, overall test conditions and complete modern management system. In the meantime, we have thoroughly carries out IEC standard.

In the aspect of enterprise spirit, our company has advocated management philosophy "Realistic, concrete, effective, innovative ", and always insisted on the principle "People are the basis, Quality is the key to win ". Believing in "First-class enterprise image, design idea and product quality ", our company will pursue greater development for a more brillian future. Also, we are willing to strengthen cooperation and interchange with all customers and be always the creator of every customer, Value with the aim of "Meet the demands of the consumer and go beyond the expection of the customers
