| Prod Model: |
LK-F5PCCB001 |
| Insulation: |
PE |
| Length: |
Customized |
| Color: |
Customized |
| Application: |
Fiber Optic Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Type: |
Cat 6 |
| Certification: |
UL |
| Model: |
Cat5e |
| Brand: |
Lulink |
Product Description
Sepecification:

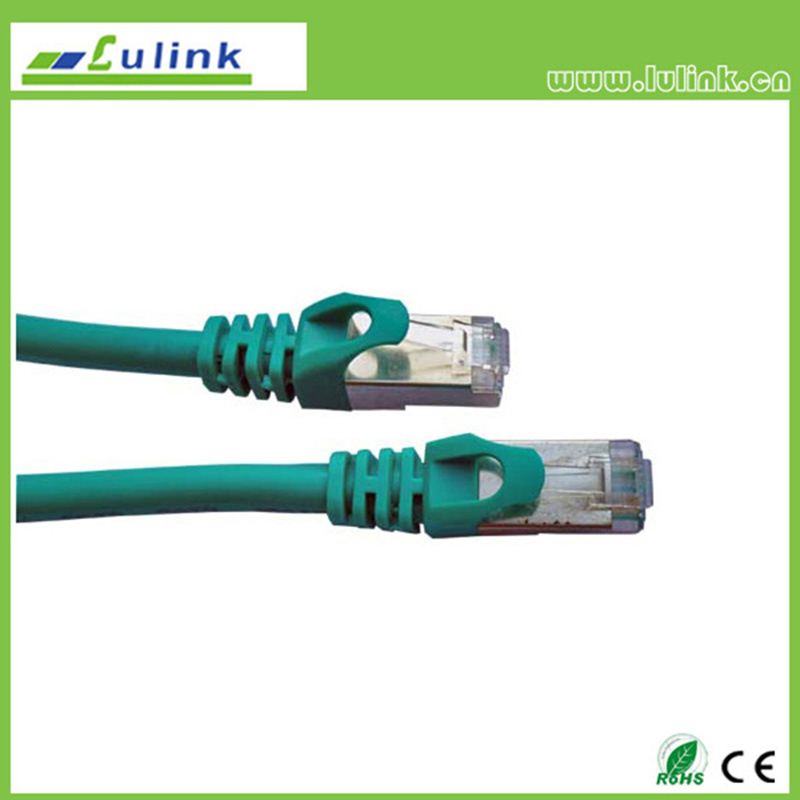

| ITEM | LK-F5PCCB001 | CAT5E FTP 7/0.20 Patch cable |
| Connector | | RJ45 plug x2pcs, FTP, Gold plated for the pins. |
| No. of Cond. | 4 Pair |
| Conductor | Material | Bare Copper Wire Stranded |
| | Construction | 24AWG; 7 / 0.20 ± 0.008 mm |
| Insulation | Material | Polyethylene |
| | Thickness | 0.19±0.02 mm |
| | Diameter | 0.98± 0.05 mm |
| Inner Layer | Direction | S |
| | Pitch REF | 30mm underneath |
| Outside Layer | Direction | S |
| | Pitch REF | 100±10mm |
| Shielding1 | Material | Aluminum Mylar Spirally Wrapped |
| | Coverage | 100% coverage with 25% overlapping |
| Shielding2 | Material | Mylar Spirally Wrapped |
| | Coverage | 100% coverage with 25% overlapping |
| Drain wire | Material | Aluminum Magnesium metal |
| | Construction | 1 / 0.40 ± 0.008 mm or 7/0.12± 0.008 mm |
| | Material | PVC |
| Jacket | Thickness | 0.50 mm(Min. Thickness: 0.40mm) |
| | Diameter | 5.8±0.20 mm |
| | Color | Optional |
| Marking: | | Optional |
| ELECTRICAL PROPERTIES | |
| Conductor Resistance | Max. 93.8 ohms/km at 20ºC |
| Insulation Resistance | Min. 100 mega ohms-km at 20ºC |
| Dielectric Test | 500V AC /1 min ; No Breakdown |
| Impedance | 100 ohms ± 15% |
| Temperature Rating | 75ºC |
| Voltage Rating | 30V |
