| Prod Model: |
SWA Armoured Power Cable |
| Product Name: |

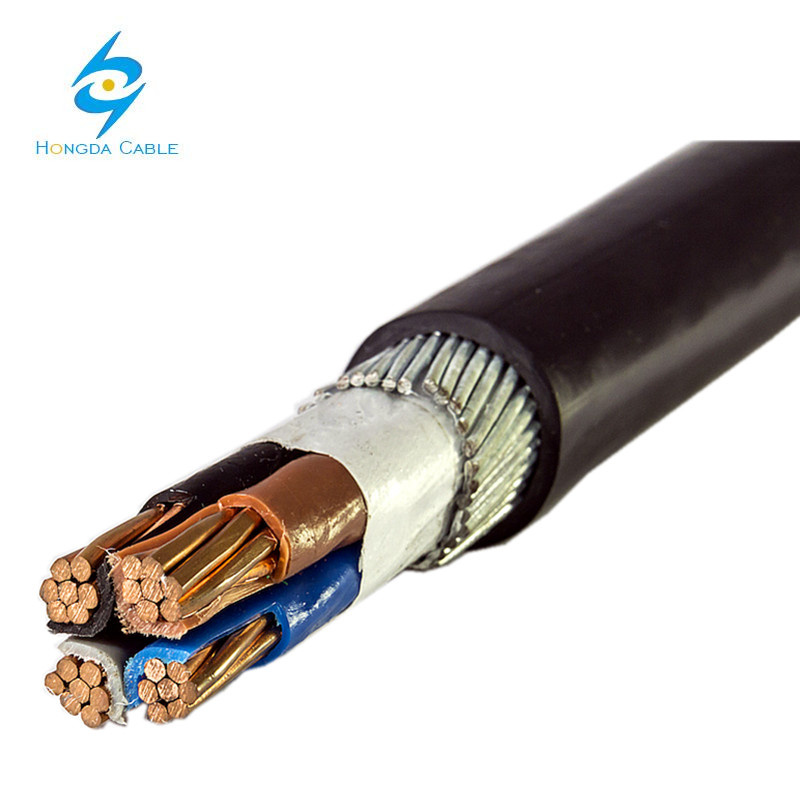

4X35mm2 4 Core 35mm2 Swa Armoured Power Cable |
| Conductor: |
99.99% Copper |
| Armour: |
Steel Wire(Swa) Armoured |
| Packaging: |
Wooden Drum |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Model: |
Cu XLPE Swa PVC |
| Brand: |
OEM |
Product Description
1. Standard:
According to Chinese national standard GB 12706 and GB12666.6(Equal to IEC60502 and IEC60331),
also can do by standard of ASTM,BS,GB,DIN and AS/NZS or other standards as request.
2. Rated Voltage
0.6/1KV

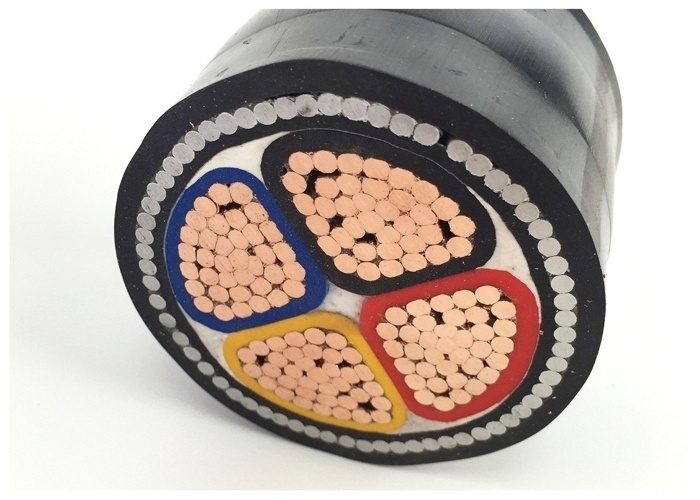

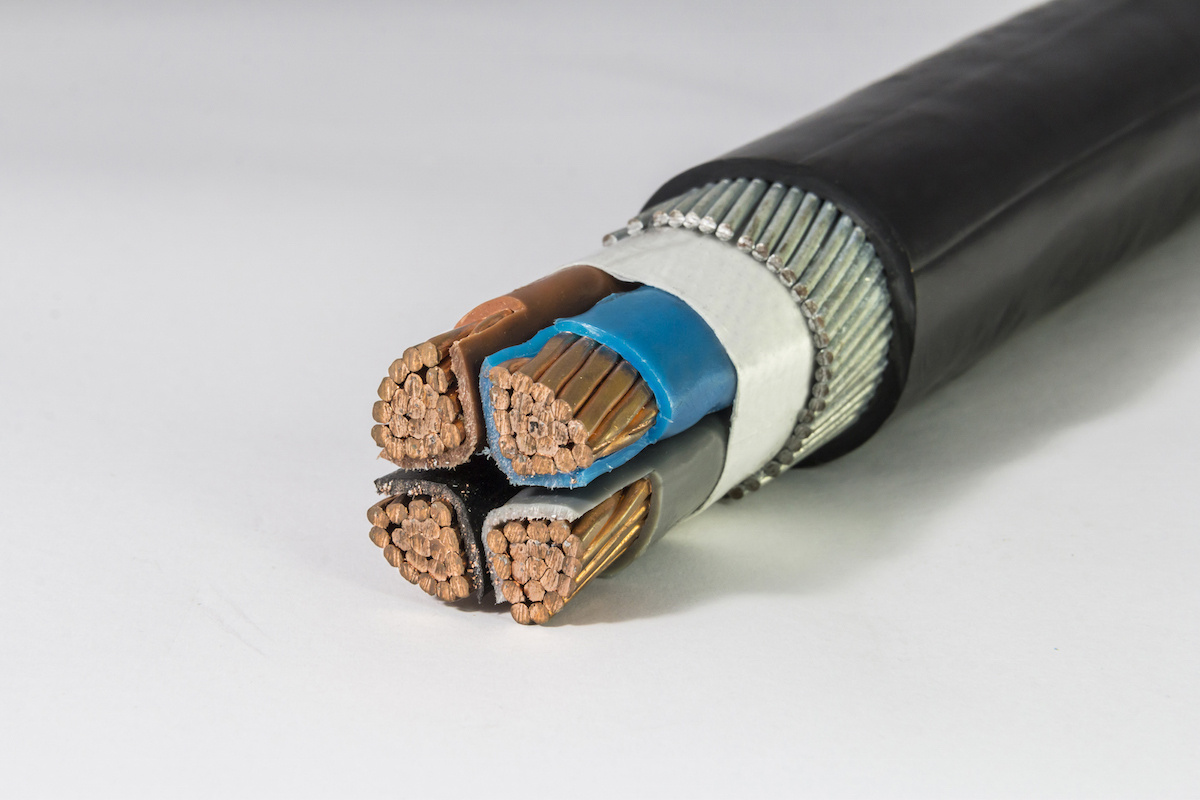

3. Construction:
Conductor:Copper or Aluminium
Insulation:XLPE
Inner sheath:PVC
Armoured:Galvanized steel wire
Outer Sheath:PVC
4. Characters:
a.Max Long-time operating temperature of PVC insulated cable is 70°C XLPE insulated cable is 90°C
b.Installing temperature of cable should not be less than 0°C
c.Max short-circuit temperature is not exceed 160°C(XLPE Cable is 250°C),Not more than5 Sec.
d.Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5. Advantages:
a. Excellent electric and mechanical characteristics
b. Best Resistance chemical corrosion and heat-ageing,environment stress and flame-retardant
c. Simple in structure
d. Convenient to use
e. Light weight,perfect bending properties
Core NO. & Nominal Cross-section Area as reference:
No. of Core | 1 | 2 | 3 | 3+1 | 4 | 3+2 | 4+1 |
Section Area (mm2) | 4~500 | 2.5~500 | 2.5~300 | 4~300 | 2.5~300 | 2.5~300 | 4~300 |
NO. Of Cores
Rated voltage
Nominal thickness of insulation
Thickness of sheath
Diameter of conductor
Approx. Overall diameter
Max cable weight
Nominal cross sectional area of conductor etc.
All above can do as every different standards OR as your special request

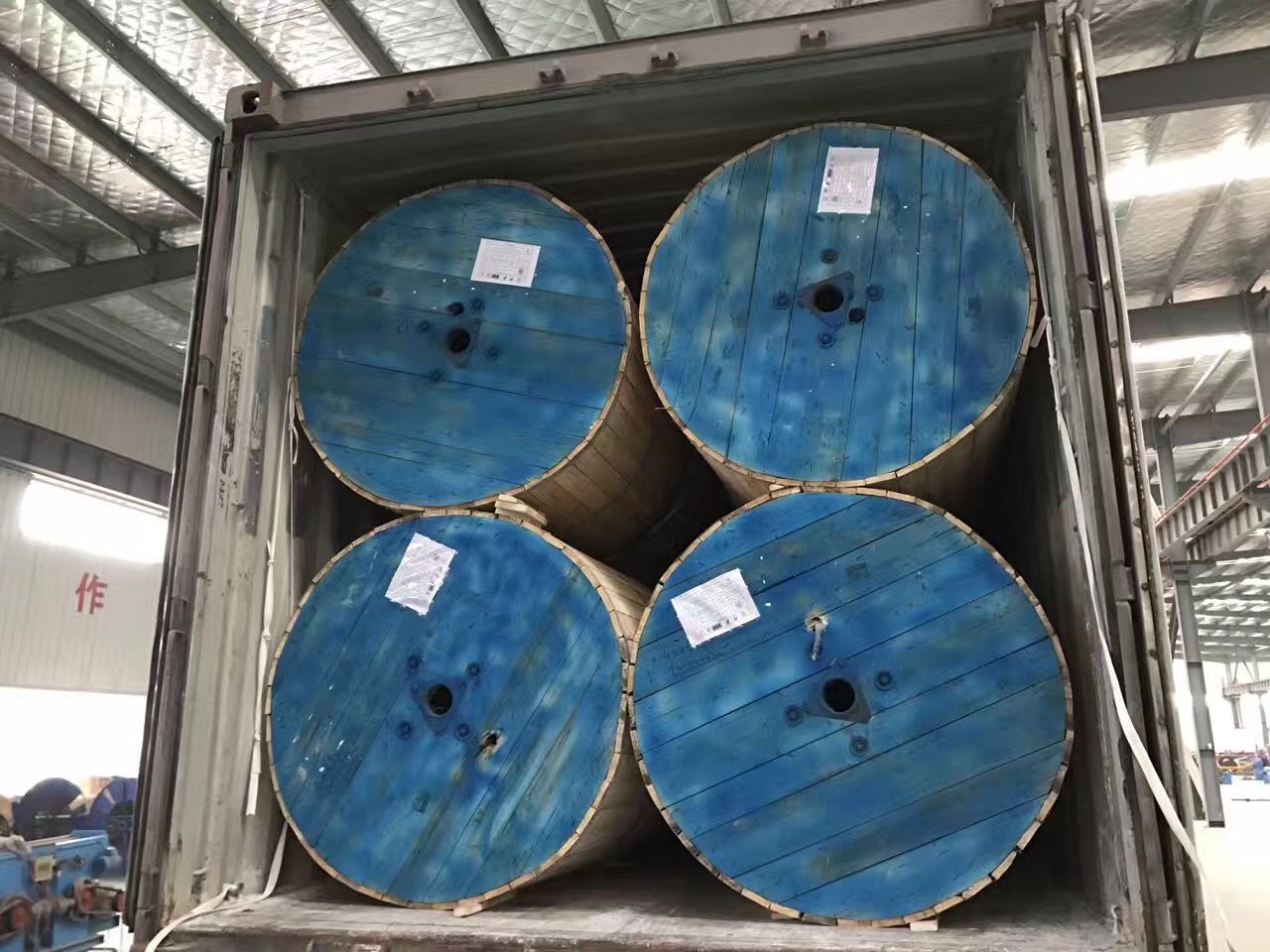

Packing shipping
Why Choose Us ?

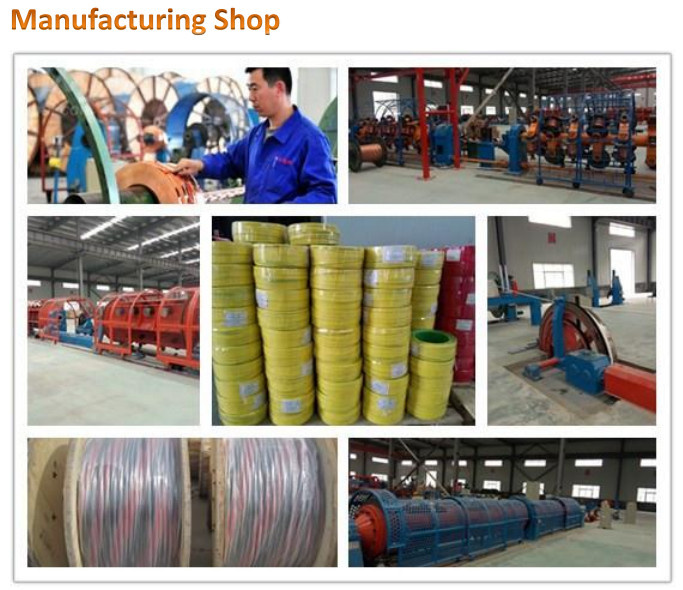

1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 30% T/T in advance,70% T/T balance before shipment
If you have another question, pls feel free to contact us below
Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.
Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.
Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).
Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
