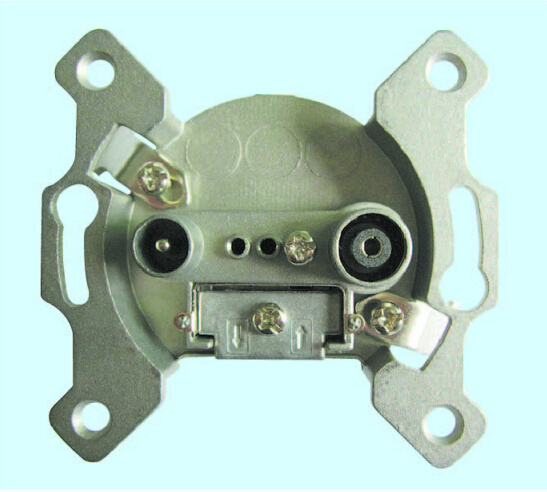

5-1000MHz CATV Wall Socket (SHJ-TWS005)

Name: 5-1000MHz CATV Wall Socket (SHJ-TWS005)
Brand: all-electronics-online.com
SKU: 755143525
Availability: InStock
Rating: 4.9 (145 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHJ-TWS005
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	TV/TV+FM/TV+Sat/TV+FM+Sat/TV+FM+Sat+Sat
Frequency:	5-2450MHz
Material:	Zinc Alloy
Interface Type:	Screw Thread
Grounding:	Non-Grounding
Application:	Residential/General-Purpose
Hole-Digit:	2 Digits
Color:	Grey
IP Rating:	IP67
Certification:	CE
Customized:	Customized
Condition:	New
Shell Material:	Zinc Alloy

Product Description

10years Professional TV Wall Socket Manufacture

1. High Quality Products
2. Competitive Price
3. Fast Delivery Time
4. CE, ROHS Certificate
5. OEM/ODM
6. Customized according to your requirements.

ParameterFrequency RangeSpecifications

IN-OUT5-2400MHz6.5dB MAX (Insertion Loss)

IN-SAT5-862MHz18dB MIN (Rejection)

950-2400MHz7.5dB MAX (Insertion Loss)
5-68MHz7.0dB MAX (Insertion Loss)
IN-TV120-862MHz7.5dB MAX (Insertion Loss)
950-2400MHz20dB MIN (Rejection)
IN-FM88-108MHz8.0dB MAX (Insertion Loss)
Return Loss 10dB MIN
Power PassingIN-SAT/IN-OUT500mA (Max)

Parameter	Frequency Range	ITEM:T	ITEM:8	ITEM:10	ITEM:12	ITEM:14	ITEM:16
IN-OUT	5-860MHz		3.0dB MAX	2.7dB MAX	2.5dB MAX	2.0dB MAX	1.8dB MAX
IN-TV	5-68MHz	1.5dB MAX	8.5dB MAX	11.0dB MAX	12.5dB MAX	15.0dB MAX	17.5dB MAX
IN-TV	125-860MHz	2.5dB MAX	9.0dB MAX	11.5dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-FM	87.5-108MHz	2.5dB MAX	9.0dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
ISOLATIONS	5-860MHz	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
ALL PORTS
Return Loss	5-860MHz	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN
ALL PORTS
