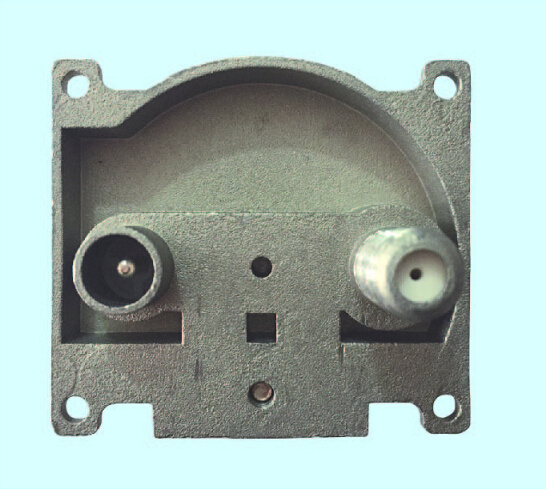

5-2400MHz TV Wall Socket Outlet

Name: 5-2400MHz TV Wall Socket Outlet
Brand: all-electronics-online.com
SKU: 755144265
Availability: InStock
Rating: 4.6 (22 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2000/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	SHJ-TWS019
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Zinc Alloy
Frequency:	5-2400MHz
Grounding:	Isolated Ground
Type:	Without Switch
Application:	Residential/General-Purpose
IP Rating:	IP68
Shell Material:	Zinc Alloy
Brand:	OEM
Number Of Holes:	2

Product Description

Product Specification:

1. Frequency: 5-2400MHZ
2. It is used for TV and SAT TV
3. Zinc Alloy Material
4. We are professional factory
5. High Quality, Competitive Price and Fast Delivery
6. Welcome OEM

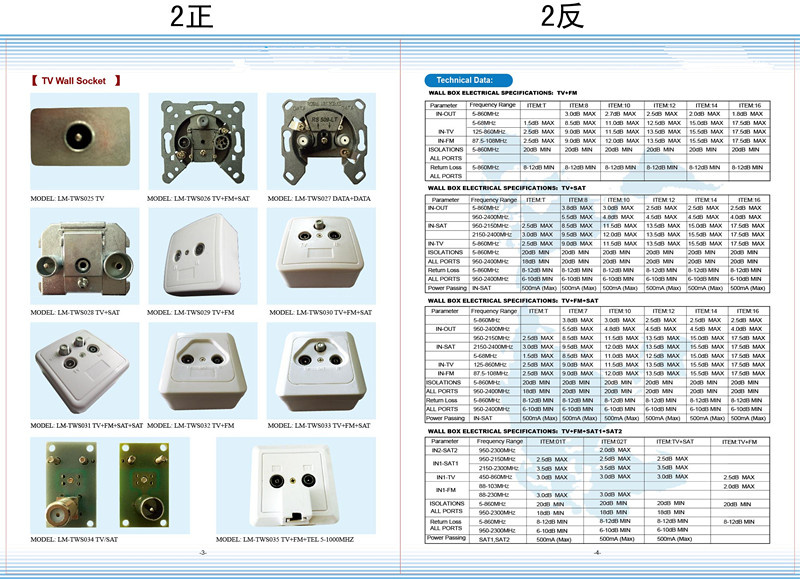

TV+SAT

Parameter	Frequency Range	ITEM:T	ITEM:8	ITEM:10	ITEM:12	ITEM:14	ITEM:16
IN-OUT	5-860MHz		3.8dB MAX	3.0dB MAX	2.5dB MAX	2.5dB MAX	2.5dB MAX
IN-OUT	950-2400MHz		5.5dB MAX	4.8dB MAX	4.5dB MAX	4.5dB MAX	4.0dB MAX
IN-SAT	950-2150MHz	2.5dB MAX	8.5dB MAX	11.5dB MAX	13.5dB MAX	15.0dB MAX	17.5dB MAX
IN-SAT	2150-2400MHz	3.0dB MAX	9.5dB MAX	12.0dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
IN-TV	5-860MHz	2.5dB MAX	9.0dB MAX	11.5dB MAX	13.5dB MAX	15.5dB MAX	17.5dB MAX
ISOLATIONS	5-860MHz	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
ALL PORTS	950-2400MHz	18dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN	20dB MIN
Return Loss	5-860MHz	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN	8-12dB MIN
ALL PORTS	950-2400MHz	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN	6-10dB MIN
Power Passing	IN-SAT	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)	500mA (Max)

Changzhou Shengshijia Electronic Co., Ltd is located in the south of Changzhou city, it has very convienent transportation not only by air or by sea. It is only need one hour to Shanghai by train.

We are the professional supplier for CCTV Camera Complete Solution in China. Such as vehicle/police car PTZ camerea, highway/railway PTZ camera, Thermal PTZ Camera, Explosion-proof camera, long distance night vision laser/thermal PTZ camera, all kinds of camera can be installed analog camera or 2.0MP, 3.0MP, 5.0MP camera module. AHD, SDI. We provide complete kit solution including camera, DVR/NVR, controller keyboard, monitor screen and bracket. Our products have been certified by CE, FCC and RoHS, meanwhile, every component of our product come from the top brand in the world. We also provide 1-3year warranty and life-long maintenance service.

Besides Security products, we also export all kinds of high quality Vertical Axis Wind Generator, 100W-60KW, Permemagent Alternator100W-500KW, Wind and Solar Hybrid Street Lamp and other green energy products. We also sell BBQ Grill, Mobile Fast Food Carts, Disposable Skin Stapler, TV Satellite Finder, TV Wall Socket, TV Antenna Amplifier etc.

Make our customers enjoy the most satisfactory service and protect the client's market, which have been our company's constant aim. We have a keen desire to creating additional value for your global security business, supporting your company's better and more rapid development.

Welcome to send us your enquiry, we must give you the best service and best quality with most competitive price, we believe we will have good cooperation under our perfect service.
