Product Description

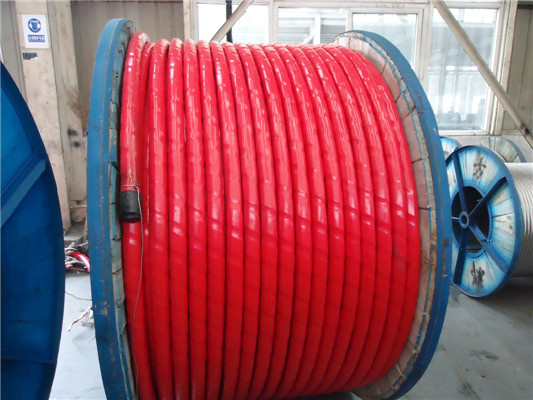

5-46KV Concentric neutral cable
1. The cable belongs to XLPE Insulated single core, concentric neutral cables rated 5 to 45KV which are used for the transmission and electrical energy, distribution of electrical energy.
2. Reference Standard: ICEA S-94-649, CSA C68.5, IEC60502.
3. Cable construction
3.1 Conductor: Stranded Compacted Copper or Aluminium Wire, Class B
3.2 Conductor shield: Semi-conductor XLPE Compound
3.3 Insulation: XLPE or TRXLPE
3.4 Insulation shield: Semi-conductor XLPE Compound
3.5 Concentric neutral wire: Round Annealed Copper Wire, Full neutral or Reduced neutral
3.6 Wrapping tape(optional): Non-woven clothing tape
3.7 Outer sheath: PVC/LDPE/LLDPE/HDPE
4. Packing: Roll/Wooden drum/Iron-wooden drum/ Steel drum
For further information, pls contact us directly.
| 35KV , AL CONDUCTOR XLPE INSULATED , 100% & 133% INSULATION LEVEL , FULL NEUTRAL , 1/3 NEUTRAL , 1/6 NEUTRAL |
| Conductor Size | Conductor | Insulation Nominal Thickness
mm | Copper wire Size & No.s | Outer
sheath | Approx. Cable Dia. | Approx. Cable Weight |
| AWG | MM2 | Min.
Str
No. | Approx.
Dia. | Full Neutral | 1/3 Neutral | 1/6 Neutral | 100% Ins | 133% Ins | 100% Ins | 133% Ins |
| 100% Ins | 133% Ins | AWG | mm | No.s | AWG | mm | No.s | AWG | mm | No.s | | Full Neutral | 1/3 Neutral | 1/6 Neutral | Full Neutral | 1/3 Neutral | 1/6 Neutral | Full Neutral | 1/3 Neutral | 1/6 Neutral | Full Neutral | 1/3 Neutral | 1/6 Neutral |
| 1/0 | 53.49 | 18 | 8.53 | 8.8 | 10.7 | 16 | 1.29 | 25 | 16 | 1.29 | 8 | -- | -- | -- | 2.0 | 36.1 | 36.1 | -- | 39.91 | 36.11 | -- | 1349 | 1164 | -- | 1565 | 1261 | -- |
| 2/0 | 67.43 | 18 | 9.55 | 8.8 | 10.7 | 14 | 1.63 | 20 | 16 | 1.29 | 10 | -- | -- | -- | 2.0 | 37.8 | 37.1 | -- | 41.61 | 37.13 | -- | 1543 | 1266 | -- | 1768 | 1339 | -- |
| 3/0 | 85.01 | 18 | 10.7 | 8.8 | 10.7 | 14 | 1.63 | 25 | 16 | 1.29 | 13 | -- | -- | -- | 2.0 | 39 | 38.3 | -- | 42.76 | 38.28 | -- | 1726 | 1395 | -- | 1958 | 1431 | -- |
| 4/0 | 107.2 | 18 | 12.1 | 8.8 | 10.7 | 14 | 1.63 | 31 | 16 | 1.29 | 17 | -- | -- | -- | 2.0 | 40.4 | 39.7 | -- | 44.16 | 39.68 | -- | 1951 | 1557 | -- | 2190 | 1544 | -- |
| 250 | 126.7 | 35 | 13.2 | 8.8 | 10.7 | 12 | 2.05 | 23 | 16 | 1.29 | 20 | 16 | 1.29 | 10 | 2.1 | 42.3 | 40.8 | 40.98 | 46.3 | 40.98 | 44.78 | 2208 | 1700 | 1656 | 2460 | 1651 | 1900 |
| 300 | 152 | 35 | 14.5 | 8.8 | 10.7 | 12 | 2.05 | 28 | 16 | 1.29 | 24 | 16 | 1.29 | 12 | 2.1 | 43.6 | 42.1 | 42.28 | 47.6 | 42.28 | 46.08 | 2472 | 1867 | 1812 | 2731 | 1770 | 2063 |
| 350 | 177.3 | 35 | 15.6 | 8.8 | 10.7 | 12 | 2.05 | 33 | 16 | 1.29 | 28 | 16 | 1.29 | 14 | 2.2 | 45.1 | 43.2 | 43.58 | 48.9 | 43.58 | 47.38 | 2740 | 2038 | 1983 | 3006 | 1892 | 2241 |
| 400 | 202.7 | 35 | 16.7 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 20 | 14 | 1.63 | 10 | 2.3 | -- | 45 | 45.56 | -- | 45.56 | 49.36 | -- | 2254 | 2185 | -- | 2138 | 2454 |
| 450 | 228 | 35 | 17.8 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 22 | 14 | 1.63 | 11 | 2.3 | -- | 46.1 | 46.66 | -- | 46.66 | 50.46 | -- | 2405 | 2336 | -- | 2251 | 2611 |
| 500 | 253.4 | 35 | 18.7 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 25 | 14 | 1.63 | 12 | 2.7 | -- | 49 | 48.36 | -- | 48.36 | 52.16 | -- | 2622 | 2535 | -- | 2409 | 2820 |
| 550 | 278.7 | 58 | 19.7 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 27 | 14 | 1.63 | 14 | 2.7 | -- | 50 | 49.36 | -- | 49.36 | 53.16 | -- | 2770 | 2683 | -- | 2519 | 2973 |
| 600 | 304 | 58 | 20.7 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 30 | 14 | 1.63 | 15 | 2.8 | -- | 51.6 | 51.16 | -- | 51.16 | 54.96 | -- | 3004 | 2899 | -- | 2694 | 3200 |
| 650 | 329.4 | 58 | 21.5 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 32 | 12 | 2.05 | 10 | 2.8 | -- | 52.4 | 52.8 | -- | 51.96 | 56.6 | -- | 3144 | 3120 | -- | 2796 | 3430 |
| 700 | 354.7 | 58 | 22.3 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 35 | 12 | 2.05 | 11 | 2.8 | -- | 53.2 | 53.6 | -- | 52.76 | 57.4 | -- | 3302 | 3254 | -- | 2895 | 3569 |
| 750 | 380 | 58 | 23.1 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 23 | 12 | 2.05 | 12 | 2.8 | -- | 54.8 | 54.4 | -- | 54.4 | 58.2 | -- | 3498 | 3388 | -- | 3161 | 3707 |
| 800 | 405.4 | 58 | 23.8 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 25 | 12 | 2.05 | 12 | 2.9 | -- | 55.5 | 55.3 | -- | 55.3 | 59.1 | -- | 3671 | 3533 | -- | 3273 | 3858 |
| 900 | 456 | 58 | 25.4 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 28 | 12 | 2.05 | 14 | 2.9 | -- | 57.1 | 56.9 | -- | 56.9 | 60.7 | -- | 3966 | 3829 | -- | 3477 | 4162 |
| 1000 | 506.7 | 58 | 26.9 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 31 | 12 | 2.05 | 16 | 3.0 | -- | 58.6 | 58.6 | -- | 58.6 | 62.4 | -- | 4275 | 4137 | -- | 3693 | 4480 |
| 35KV , CU CONDUCTOR XLPE INSULATED , 100% & 133% INSULATION LEVEL , FULL NEUTRAL , 1/3 NEUTRAL , 1/6 NEUTRAL |
| Conductor Size | Conductor | Insulation Nominal Thickness
mm | Copper wire Size & No.s | Outer
sheath | Approx. Cable Dia. | Approx. Cable Weight |
| AWG | MM2 | Min.
Str
No. | Approx.
Dia. | Full Neutral | 1/3 Neutral | 1/6 Neutral | 100% Ins | 133% Ins | 100% Ins | 133% Ins |
| 100% Ins | 133% Ins | AWG | mm | No.s | AWG | mm | No.s | AWG | mm | No.s | | Full Neutral | 1/3 Neutral | 1/6 Neutral | Full Neutral | 1/3 Neutral | 1/6 Neutral | Full Neutral | 1/3 Neutral | 1/6 Neutral | Full Neutral | 1/3 Neutral | 1/6 Neutral |
| 1/0 | 53.49 | 18 | 8.53 | 8.8 | 10.7 | 14 | 1.63 | 26 | 16 | 1.29 | 14 | -- | -- | -- | 2.0 | 36.8 | 36.1 | -- | 40.6 | 36.1 | -- | 1903 | 1567 | -- | 2122 | 1591 | -- |
| 2/0 | 67.43 | 18 | 9.55 | 8.8 | 10.7 | 14 | 1.63 | 32 | 16 | 1.29 | 17 | -- | -- | -- | 2.0 | 37.8 | 37.1 | -- | 41.6 | 37.1 | -- | 2176 | 1767 | -- | 2402 | 1755 | -- |
| 3/0 | 85.01 | 18 | 10.7 | 8.8 | 10.7 | 12 | 2.05 | 26 | 16 | 1.29 | 22 | -- | -- | -- | 2.0 | 39.8 | 38.3 | -- | 43.6 | 38.3 | -- | 2591 | 2028 | -- | 2828 | 1955 | -- |
| 4/0 | 107.2 | 18 | 12.1 | 8.8 | 10.7 | 12 | 2.05 | 32 | 16 | 1.29 | 27 | -- | -- | -- | 2.0 | 41.2 | 39.7 | -- | 45 | 39.7 | -- | 3017 | 2341 | -- | 3262 | 2208 | -- |
| 250 | 126.7 | 35 | 13.2 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 20 | 16 | 1.29 | 16 | 2.1 | -- | 41.7 | 41 | -- | 41.7 | 44.8 | -- | 2670 | 2455 | -- | 2553 | 2698 |
| 300 | 152 | 35 | 14.5 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 24 | 16 | 1.29 | 19 | 2.1 | -- | 43 | 42.3 | -- | 43 | 46.1 | -- | 3023 | 2770 | -- | 2829 | 3020 |
| 350 | 177.3 | 35 | 15.6 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 28 | 16 | 1.29 | 23 | 2.2 | -- | 44.3 | 43.6 | -- | 44.3 | 47.4 | -- | 3381 | 3100 | -- | 3110 | 3358 |
| 400 | 202.7 | 35 | 16.7 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 32 | 14 | 1.63 | 16 | 2.3 | -- | 45.6 | 45.6 | -- | 45.6 | 49.4 | -- | 3740 | 3462 | -- | 3392 | 3731 |
| 450 | 228 | 35 | 17.8 | 8.8 | 10.7 | -- | -- | -- | 14 | 1.63 | 36 | 14 | 1.63 | 18 | 2.3 | -- | 46.7 | 46.7 | -- | 46.7 | 50.5 | -- | 4085 | 3772 | -- | 3660 | 4047 |
| 500 | 253.4 | 35 | 18.7 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 26 | 14 | 1.63 | 20 | 2.7 | -- | 49.2 | 48.4 | -- | 49.2 | 52.2 | -- | 4559 | 4132 | -- | 4131 | 4416 |
| 550 | 278.7 | 58 | 19.7 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 28 | 14 | 1.63 | 22 | 2.7 | -- | 50.2 | 49.4 | -- | 50.2 | 53.2 | -- | 4888 | 4439 | -- | 4399 | 4729 |
| 600 | 304 | 58 | 20.7 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 31 | 14 | 1.63 | 24 | 2.8 | -- | 52 | 51.2 | -- | 52 | 55 | -- | 5314 | 4815 | -- | 4732 | 5116 |
| 650 | 329.4 | 58 | 21.5 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 33 | 12 | 2.05 | 17 | 2.8 | -- | 52.8 | 52.8 | -- | 52.8 | 56.6 | -- | 5635 | 5195 | -- | 4993 | 5506 |
| 700 | 354.7 | 58 | 22.3 | 8.8 | 10.7 | -- | -- | -- | 12 | 2.05 | 36 | 12 | 2.05 | 18 | 2.8 | -- | 53.6 | 53.6 | -- | 53.6 | 57.4 | -- | 5983 | 5489 | -- | 5249 | 5803 |
| 750 | 380 | 58 | 23.1 | 8.8 | 10.7 | -- | -- | -- | 10 | 2.59 | 24 | 12 | 2.05 | 19 | 2.8 | -- | 55.5 | 54.4 | -- | 55.5 | 58.2 | -- | 6400 | 5782 | -- | 5716 | 6101 |
| 800 | 405.4 | 58 | 23.8 | 8.8 | 10.7 | -- | -- | -- | 10 | 2.59 | 26 | 12 | 2.05 | 20 | 2.9 | -- | 56.4 | 55.3 | -- | 56.4 | 59.1 | -- | 6768 | 6087 | -- | 5986 | 6412 |
| 900 | 456 | 58 | 25.4 | 8.8 | 10.7 | -- | -- | -- | 10 | 2.59 | 29 | 12 | 2.05 | 23 | 2.9 | -- | 58 | 56.9 | -- | 58 | 60.7 | -- | 7434 | 6702 | -- | 6506 | 7035 |
| 1000 | 506.7 | 58 | 26.9 | 8.8 | 10.7 | -- | -- | -- | 10 | 2.59 | 32 | 12 | 2.05 | 26 | 3.0 | -- | 59.7 | 58.6 | -- | 59.7 | 62.4 | -- | 8113 | 7330 | -- | 7039 | 7672 |
