0.5-5ton Pull and Push Load Cell Weighing Sensor (CFBLS)

Name: 0.5-5ton Pull and Push Load Cell Weighing Sensor (CFBLS)
Brand: all-electronics-online.com
SKU: 802196595
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	US $ 19-80/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CFBLS
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Cfbls 0.5-5ton Load Cell Sensor

Product Description

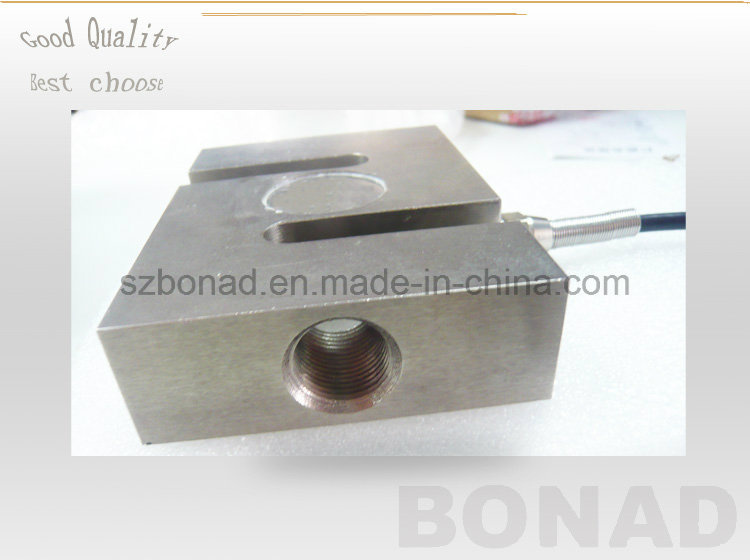

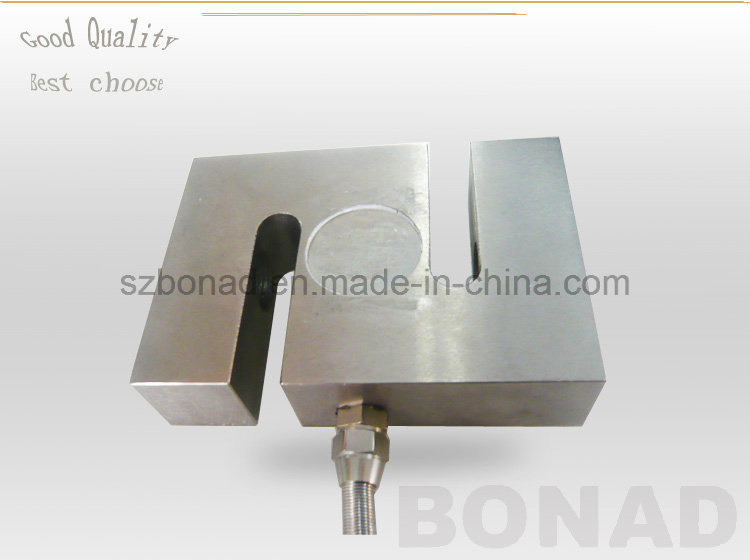

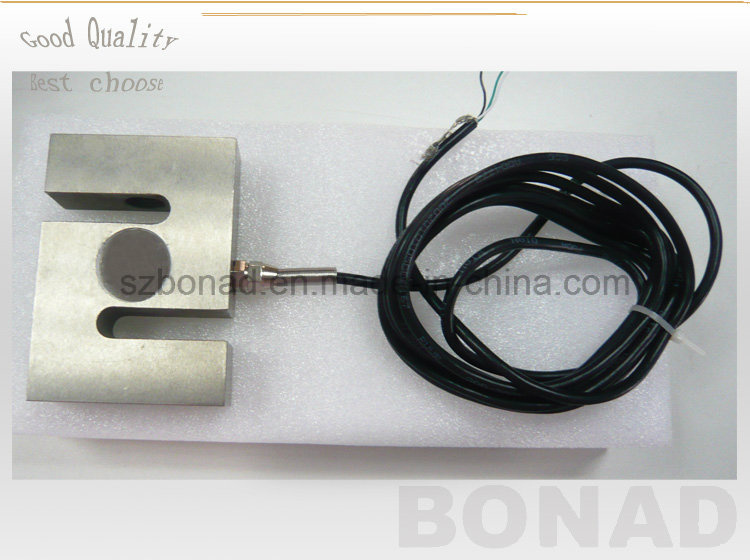

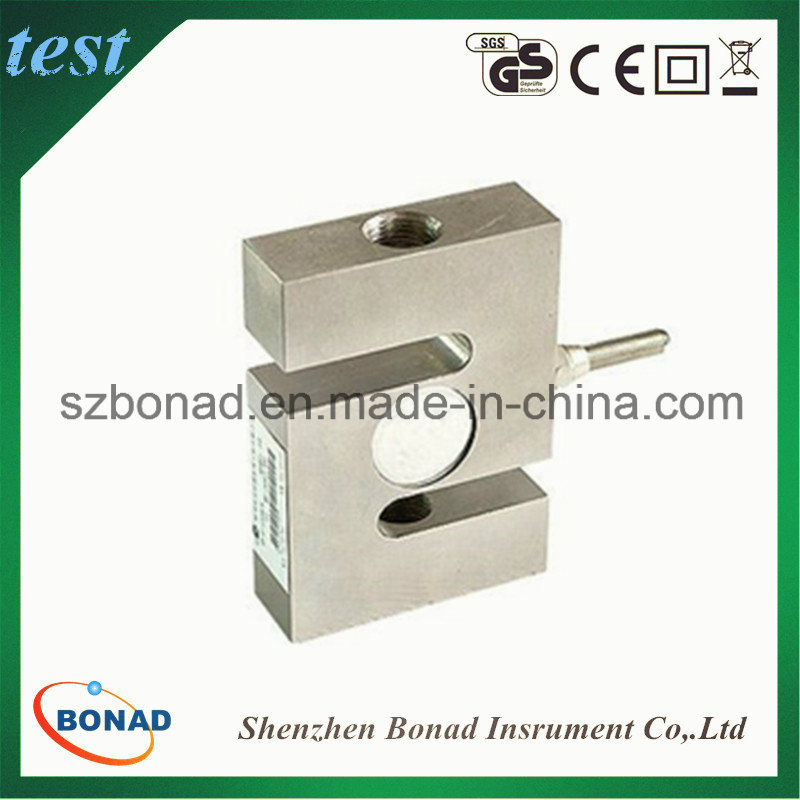

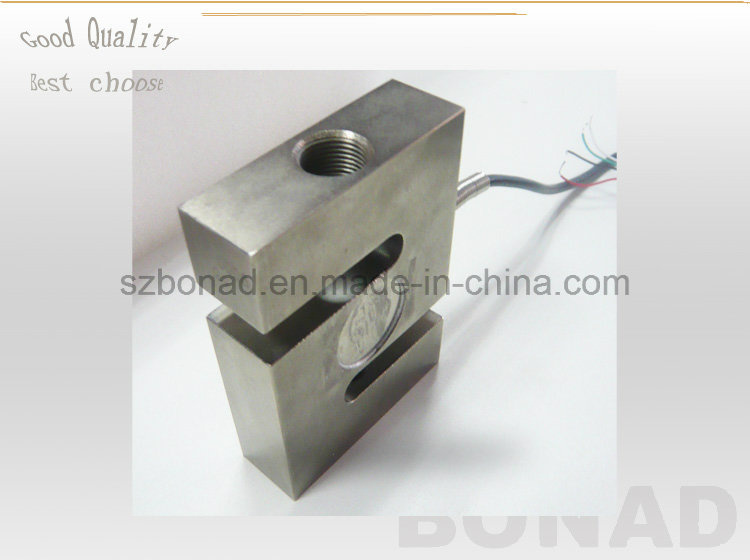

0.5-5ton pull and push load cell weighing sensor (CFBLS)

Measuring Range	2-M	H	L2	L1
1t	M16×2	70	25	60
2t	M16×2	70	25	64
3t-5t	M18×1.5	94	35	86

Parameters	Unit	Technical Index	Parameters	Unit	Technical Index
Sensitivity	mV/V	2.0±0.05	temperature sensitivity coefficient	≤%F·S/10ºC	±0.03
Nonlinear	≤%F·S	±0.03	Operating Temperature Range	ºC	-20ºC~+80ºC
Lag	≤%F·S	±0.03	Input Resistance	Ω	350±20Ω
Repeatability	≤%F·S	±0.03	Output Resistance	Ω	350±5Ω
Motility changes	≤%F·S/30min	±0.03	Safety overload	≤%F·S	150% F·S
Zero output	≤%F·S	±1	Insulation Resistance	MΩ	≥5000MΩ(50VDC)
Zero temperature coefficient	≤%F·S/10ºC	±0.03	Recommended excitation voltage	V	10V-15V

Our service

1.High quality guarantee.

2.Shipment with professional documents.

3.Packing as your request, with photo before shipment.

4.Reply within 48 hours and provide solution within 3 working days

4.Professional after-service from our engineers.

5.Warranty period 12 monthes.

Our advantages

Professional technology support.

Full experience of large numbers containers loading in Chinese sea port.

Fast shipment by reputed shipping line.

Best service after shipment with emails.

Best knowledge about Safety Testor and other related machine in USA/UK/INDIA/AUSTRALIA/CANADA/SOUTH AFRICA ETC

We are professional test equipment manufaturer in China with excellent experience and skills, also have best quality products

Our concept

1.Client is first. We are trying to bring maximum profit to our clients and offer best quality products

2.Credibility is the most important.

3.Quality control is our life.

4.Great sense of responsibility.

We will not only supply products service to you but also help you solve any other problem what we can do ,we can meet in this large world is our fate ,so we have been friends ,looking forward to meeting you !

HONGKONG BONAD TECHNOLOGY LIMITED SHENZHEN BONAD INSTRUMENT Co., Ltd. is a high-tech company in HongKong, producing all kinds of precise instrument. We specialize in the high quality of Electronic Safety Tester, Gauges for lamp caps and lampholder, Laboratory Equipment, Test Chamber, Test Equipment, Lux Meter, Weight Sensor and Electric Ruler and so on. We have gathered lots of well educated and experienced researchers and administrators on this electric products. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

All products manufactured are strictly in accordance with various EN, IEC, CE, UL, VDE, VS, JIS, ISO, CEE, BS, FMV, GB and other similar international standards.

Main Products include: Test Chamber, Weight Sensor, Load Cell, Electrical Ruler, Glow Wire Tester, Needle Flame Tester, and Vertical Burning Tester, Melt Dripping Tester, Building Materials Flammability Tester, Accessibility Probes, Spring Impact Hammer, Electrical Safety Tester Series, Environmental Tester, IPX1-8 waterproof test equipment Universal Testing Machine, Socket-outlet Gauges Series and other testing instruments.

Our main business partners are from Europe, Asia, North America, Africa and other countries and regions around the world. We are always one of the most popular precise instrument manufacturers in the whole world!
