| Prod Model: |
power cable |
| Color: |
as Your Request |
| Supply: |
Factory Direct Supply |
| Certificate: |
CCC, Ce, ISO9001,SGS |
| Standard: |
ASTM, AS/NZS, BS, CSA, DIN, IEC... |
| Rated Voltage: |
0.6/1kv |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Model: |
Yjv22 |
| Brand: |
Jytop |
Product Description

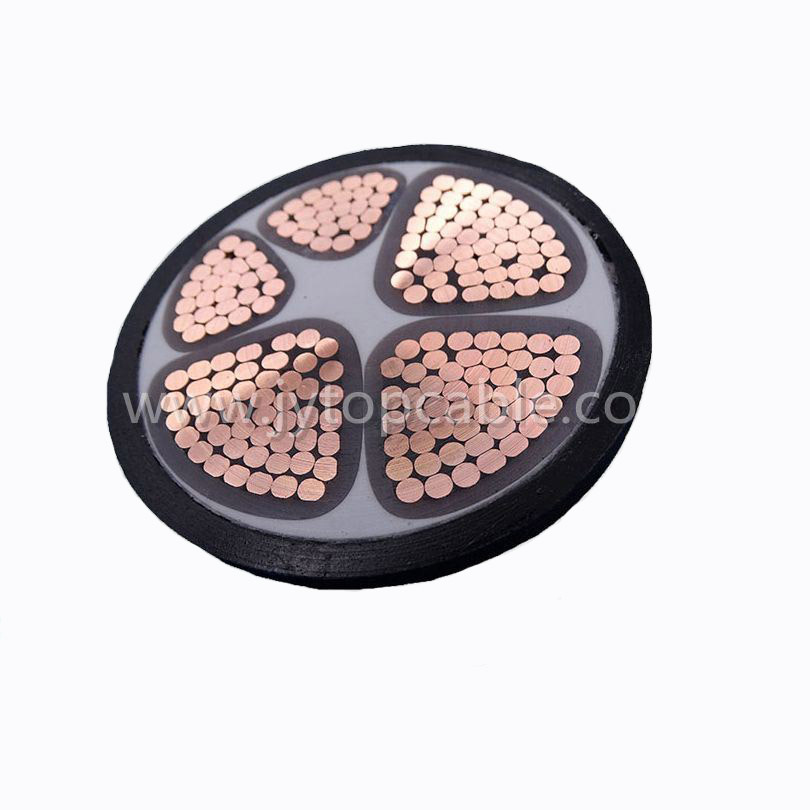

5 Core Multicore Copper Conductor XLPE Insulation power Cable 1. Application: Perferably for installation indoors in cable ducts and in industrial plants or switching stations, underground installation with additional protection where mechanical damage is unexpected.
2. Brief Description: Conductor: solid or stranded copper or aluminium wires
Insulation: XLPE/PVC/PE
Filler: PP filling
Inner Sheath: PVC(or PE)
Screen: copper tape/copper wire/unscreened
Armor: (galvanized)steel wire/steel tape/aluminium wire/unarmoured
Core-covering: binding tape
Outer Sheath: PVC (Black)(or PE)
Voltage: 0.6/1KV~26/35KV
3. General Specifications: | Cable Structure(Cores No. * Nominal Cross-section Area/mm2) |
| 1-Core | 2-Core | 3-Core | 3+1-Core | 4-Core | 3+2-Core | 4+1-Core | 5-Core |
| 1*4 | 2*4 | 3*4 | 3*4+1*2.5 | 4*4 | 3*4+2*1.5 | 4*4+1*2.5 | 5*2.5 |
| 1*6 | 2*6 | 3*6 | 3*6+1*4 | 4*6 | 3*6+2*4 | 4*6+1*4 | 5*4 |
| 1*10 | 2*10 | 3*10 | 3*10+1*6 | 4*10 | 3*10+2*6 | 4*10+1*6 | 5*6 |
| 1*16 | 2*16 | 3*16 | 3*16+1*10 | 4*16 | 3*16+2*10 | 4*16+1*10 | 5*10 |
| 1*25 | 2*25 | 3*25 | 3*25+1*16 | 4*25 | 3*25+2*16 | 4*25+1*16 | 5*16 |
| 1*35 | 2*35 | 3*35 | 3*35+1*16 | 4*35 | 3*35+2*16 | 4*35+1*16 | 5*25 |
| 1*50 | 2*50 | 3*50 | 3*50+1*25 | 4*50 | 3*50+2*25 | 4*50+1*25 | 5*35 |
| 1*70 | 2*70 | 3*70 | 3*70+1*35 | 4*70 | 3*70+2*35 | 4*70+1*35 | 5*50 |
| 1*95 | 2*95 | 3*95 | 3*95+1*50 | 4*95 | 3*95+2*50 | 4*95+1*50 | 5*70 |
| 1*120 | 2*120 | 3*120 | 3*120+1*70 | 4*120 | 3*120+2*70 | 4*120+1*70 | 5*95 |
| 1*150 | 2*150 | 3*150 | 3*150+1*70 | 4*150 | 3*150+2*70 | 4*150+1*70 | |
| 1*185 | 2*185 | 3*185 | 3*185+1*95 | 4*185 | 3*185+2*95 | 4*185+1*95 | |
| 1*240 | 2*240 | 3*240 | 3*240+1*120 | 4*240 | 3*240+2*120 | 4*240+1*120 | |
| 1*300 | | 3*300 | 3*300+1*150 | 4*300 | 3*300+2*150 | 4*300+1*150 | |
| 1*400 | | | | | | | |
| 1*500 | | | | | | | |
| 1*630 | | | | | | | |
5 core Power Cable 0.6/1KV CU/XLPE/PVC or PE
Cable size |
Conductor type | Nominal thickness
of XLPE
insulation(mm) | Nominal thickness
of PVC or PE
sheath(mm) | Approx. cable
overall diameter (mm) | Max. D.C resistance
@ 200C (Ω/km) | | 5x1.5mm2 | RE or RM | 0.7 | 1.8 | 11.3 | 12.1 | | 5x2.5mm2 | RE or RM | 0.7 | 1.8 | 12.4 | 7.41 | | 5x4mm2 | RE or RM | 0.7 | 1.8 | 13.6 | 4.61 | | 5x6mm2 | RE or RM | 0.7 | 1.8 | 15.0 | 3.08 | | 5x10mm2 | RM | 0.7 | 1.8 | 18.5 | 1.83 | | 5x16mm2 | RM | 0.7 | 1.8 | 21.3 | 1.15 | | 5x25mm2 | SM | 0.9 | 1.8 | 23.6 | 0.727 | | 5x35mm2 | SM | 0.9 | 1.8 | 26.0 | 0.524 | | 5x50mm2 | SM | 0.9 | 2.0 | 30.0 | 0.387 | | 5x70mm2 | SM | 0.9 | 2.1 | 34.2 | 0.268 | | 5x95mm2 | SM | 0.9 | 2.3 | 39.3 | 0.193 | | 5x120mm2 | SM | 0.9 | 2.4 | 43.0 | 0.153 | | 5x150mm2 | SM | 0.9 | 2.6 | 47.8 | 0.124 | | 5x185mm2 | SM | 0.9 | 2.8 | 53.3 | 0.0991 | | 5x240mm2 | SM | 0.9 | 3.0 | 60.0 | 0.0754 | | 5x300mm2 | SM | 0.9 | 3.2 | 66.3 | 0.0601 |
|
Standard:We can manufacture the cable according to TS IEC 60502, IEC502, VDE0276-603, BS6346, SANS, and customer's requirement will also be satisfied.
Packing: Simple roll, plastic/wooden drum, wooden-steel drum, or as customer's request.
Port of shippment: Qingdao, Shanghai, Ningbo, or as request.
