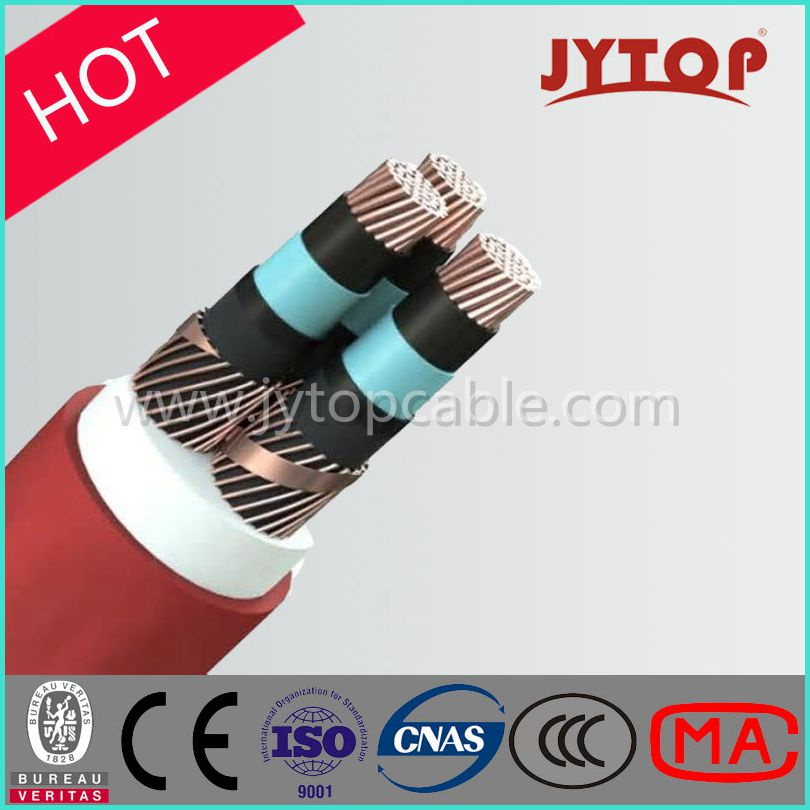

High Voltage Hv Three Core Copper XLPE Insulated Power Cable

Prod Model:	power cable
Color:	as Your Request
Supply:	Factory Direct Supply
Certificate:	CCC, Ce, ISO9001,SGS
Size:	3X95mm2
Application:	Power Station
Voltage:	High Voltage Cable
Current:	AC Cable
Insulation Material:	XLPE
Certification:	CE
Model:	Yjv22
Brand:	Jytop

Product Description

High Voltage Hv Three Core Copper  XLPE Insulated power Cable

1. Application:
   Perferably for installation indoors in cable ducts and in industrial plants or switching stations, underground installation with additional protection where mechanical damage is unexpected.

2. Brief Description:
    Conductor: solid or stranded copper or aluminium wires
    Insulation: XLPE/PVC/PE
    Filler: PP filling
    Inner Sheath: PVC(or PE)
    Screen: copper tape/copper wire/unscreened
    Armor: (galvanized)steel wire/steel tape/aluminium wire/unarmoured
    Core-covering: binding tape
    Outer Sheath: PVC (Black)(or PE)
    Voltage: 0.6/1KV~26/35KV


3. General Specifications:

Cable Structure(Cores No. * Nominal Cross-section Area/mm2)
1-Core	2-Core	3-Core	3+1-Core	4-Core	3+2-Core	4+1-Core	5-Core
1*4	2*4	3*4	3*4+1*2.5	4*4	3*4+2*1.5	4*4+1*2.5	5*2.5
1*6	2*6	3*6	3*6+1*4	4*6	3*6+2*4	4*6+1*4	5*4
1*10	2*10	3*10	3*10+1*6	4*10	3*10+2*6	4*10+1*6	5*6
1*16	2*16	3*16	3*16+1*10	4*16	3*16+2*10	4*16+1*10	5*10
1*25	2*25	3*25	3*25+1*16	4*25	3*25+2*16	4*25+1*16	5*16
1*35	2*35	3*35	3*35+1*16	4*35	3*35+2*16	4*35+1*16	5*25
1*50	2*50	3*50	3*50+1*25	4*50	3*50+2*25	4*50+1*25	5*35
1*70	2*70	3*70	3*70+1*35	4*70	3*70+2*35	4*70+1*35	5*50
1*95	2*95	3*95	3*95+1*50	4*95	3*95+2*50	4*95+1*50	5*70
1*120	2*120	3*120	3*120+1*70	4*120	3*120+2*70	4*120+1*70	5*95
1*150	2*150	3*150	3*150+1*70	4*150	3*150+2*70	4*150+1*70
1*185	2*185	3*185	3*185+1*95	4*185	3*185+2*95	4*185+1*95
1*240	2*240	3*240	3*240+1*120	4*240	3*240+2*120	4*240+1*120
1*300		3*300	3*300+1*150	4*300	3*300+2*150	4*300+1*150
1*400
1*500
1*630

Size Nominal thickness of XLPE insulation(mm) Approx. thickness of copper tape screen (mm) Approx. diameter of steel wire (mm) Nominal thickness of PVC or PE(mm) Approx. overall diameter of finished cable(mm) Max. conductor D.C resistance @ 20ºC (Ω/km) 3x35mm  5.5 0.10 2.5 2.8 61.9 0.868 3x50mm  5.5 010 2.5 2.9 64.7 0.641 3x70mm  5.5 0.10 2.5 3.1 68.8 0.443 3x95mm  5.5 0.10 2.5 3.2 72.8 0.320 3x120mm  5.5 0.10 3.15 3.3 77.3 0.253 3x150mm  5.5 0.10 3.15 3.4 81.2 0.206 3x185mm  5.5 0.10 3.15 3.6 85.4 0.164 3x240mm  5.5 0.10 3.15 3.7 91.0 0.125 3x300mm  5.5 0.10 3.15 3.9 95.8 0.100 3x400mm  5.5 0.10 3.15 4.1 103.7 0.0778

Standard:
    We can manufacture the cable according to TS IEC 60502, IEC502, VDE0276-603, BS6346, SANS, and customer's requirement will also be satisfied.

4. Packing: Simple roll, plastic/wooden drum, wooden-steel drum, or as customer's request.
     Port of shippment: Qingdao, Shanghai, Ningbo, or as request.

What kinds of products does JYTOP Cable manufacture?
1)Bare Conductor ,such as AAC,AAAC,ACSR,ACAR,AACSR,ACSR/AW and so on;
2)Aerial Bundled Cable (1kV-35kV ),such as Duplex,Triplex,Quadruplex Drop Wires and so on;
3)PVC Insulated (Flexible ) Wire ;
4) PVC Insulated and Sheathed (Armoured) Power Cable;
5)Low, Medium, High Voltage (1kV-220kV) XLPE Insulated (Armoured) Power Cable;
6)Welding Cable, Control Cable, Concentric Cable, Rubber Sheathed Cable and so on

Which markets do you involve mainly in?
Our products have been exported mainly to Africa, Middle East, South-east Asia, South America,Central America,North America, Europe ,Australia, etc.

Which standards do you comply with when you produce the electrical wires and cables ?
We are able to produce electrical wires and cables based on GB, JB, IEC, BS, DIN, ASTM, JIS, NF, AS/NZS, CSA, etc. Meanwhile, we can design and manufacture the cables according to the samples and technical specification the customer supply.
ACHIEVEMENTS & COMMITMENT
Our cable has been exported to South-East Asia, South Asia, Middle-East, Europe, North and South America, Africa, Australia & New Zealand and so on. Zhengzhou Jinyuan Wire and Cable Co., Ltd.'s commitment is to be recognized as a zero-defect world class manufacturer in cable industry through continuous improvement of our quality, processes, and products, and by our determination to exceed our clients' expectations.

Why Choose us?
For over 20 years, Zhengzhou Jinyuan Wire and Cable Co., Ltd., as a professional cable manufacturer has been producing customized cable for a wide range of applications based on high quality, excellent service and competitive market prices. This is an elite team with experienced personnel and strong technical support. Our achievements benefit by having access to the largest market for cheap labor and abundant resources in China and our determination to exceed our clients' expectations.
