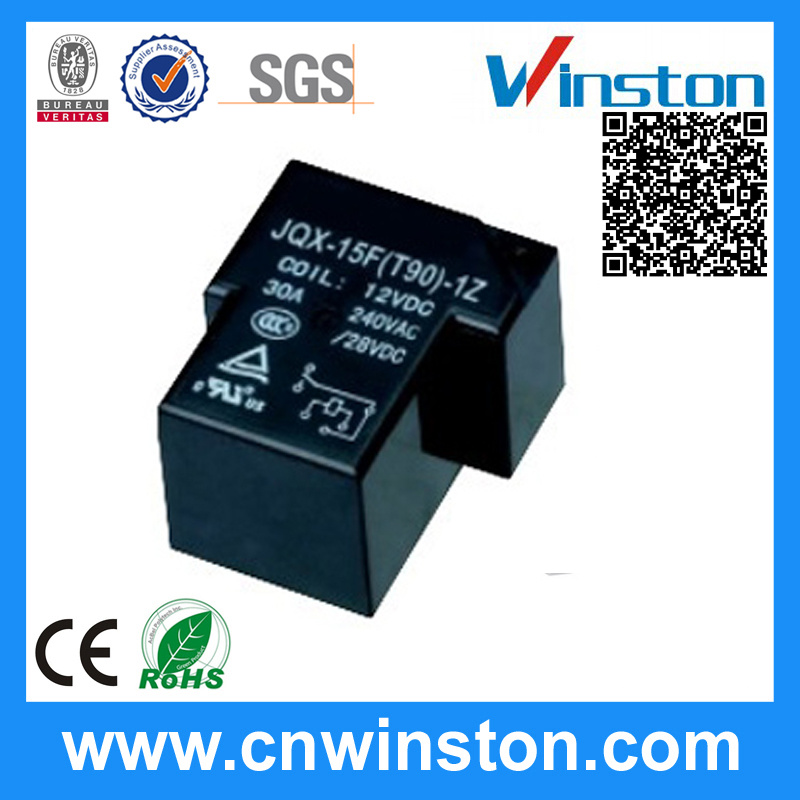

5 Pin PCB Mounting Electric Relay with CE

5 Pin PCB Mounting Electric Relay with CE
Price: US $ 0.4-1/Piece
Trade Terms: FOB
Min Order: 100/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: JQX-15F, T90
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe
Current: 20A
Brand: Winston
Protect Feature: Sealed
Contact Load: Low Power
Contact Form: 1A, 1b, 1c
Max.Switching Curreng: 30A

Product Description

 Technical parameters

Contact data



Contact Arrangement
1H1D1Z(Normal Open)1Z(Normal Close)
Initial Contact Resistance50mΩ(1A 24VDC)
Contact MaterialAgSnO2 AgCdO
Max.switching curreng7200VA/560W3600VA/280W4800VA/560W2400VA/280W
Max.switching voltage277VAC/28VDC
Max.switching curreng30A15A20A10A
JQX-105F-1
Rated load
30A 240VAC
20A 28VDC
15A 240VAC
10A 28VDC
20A 240VAC
20A 28VDC
10A 240VAC
10A 28VDC
JQX-105F-1L
Rated load
25A 240VAC
20A 28VDC
15A 240VAC
10A 28VDC
20A 240VAC
20A 28VDC
10A 240VAC
10A 28VDC
Mechanical life2×107 times
Electrical life1×105 time
Characteristics
Initial Insulation Resistance1000MΩ,500VDC
Dielectric Strength
Between coil and Contacts1500VAC 1 min.
Between open contacts1500VAC 1 min.
Operate time(at nomi.Volt)Max:15ms
Release time(at nomi.Volt)Max:10ms
Shock Resistance
stability98m/s2
intensity980m/s2
Vibration ResistanceDouble oscillation amplitude:1.5mm 10~55Hz
Humidity98% +40 ºC
Temperature
B LevelDC:-55ºC~+85ºC;AC:-55ºC~+60ºC
F LevelDC:-55ºC~+105ºC;AC:-55ºC~+85ºC
TerminationPCB
Unit weigthAbout 36g
ConstructionOpening wide(AC Specification No Suitable)
Model And Dust cover Model



Coil data



Coil power
DC:0.9W AC:2VA
Coil voltage5~110VDC 12~277VAC
Coil ResistanceSees the next table



Coil Specification table
Nominal Voltage VDCAction voltageVDCDrop-out Voltage VDCMax voltageVAC(20ºC)Coil Resistance Ω
53.750.56.5027±10%
64.500.67.8040±10%
96.750.911.7097±10%
129.001.215.60155±10%
1511.251.519.50256±10%
1813.51.823.40380±10%
2418.002.131.20660±10%
4836.004.862.402560±10%
7052.507.091.005500±10%
11082.5011143.0013450±10%

Nominal Voltage VAC
Action voltageVACDrop-out Voltage VACMax voltageVAC(20ºC)Coil Resistance Ω
129.62.415.625±10%
2419.24.831.2100±10%
12096.024.0156.02500±10%
208166.441270.411000±10%
220/24019248286.013490±10%
27722054360.115000±10%




Ordering information



Mark demonstration
JQX-15F / 12DC-1ZS
TypeJQX-15F
Coil power source   DC: DC              AC: AC
Coil voltageDC:5~110VDC           AC:6~240VAC
Contact Arrangement1Z: SPDT           1H :  SPST-NO     1D: A group Normal Close
Installs the form1.Opens wide the type,       2.Dust cover      NO: .Models seals the type
Contact Material T: AgSnO                                 NO:  AgCdO
