| Prod Model: |
LZCK-55 |
| Standards: |
IEC60044-1; IEC 61869-2; Ntc 2205; GB1208-2006; an |
| Accuracy Class: |
0.5s, 0.5%, 1%, 3% |
| Range Of Primary Rated Current: |
100-1500A |
| Range Of Rated Load: |
≤10va |
| Rated Frequency: |
50/60Hz |
| Rated Secondary Current: |
5A or 1A |
| Safety Factor Rating: |
(Fs) <10 |
| Output Signal: |
1A, 5A, 333mv, 1V or 5V(Customized) |
| Cable Length: |
2.5m, 5m, 10m(Customized) |
| Weight (Kg): |
2 |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description

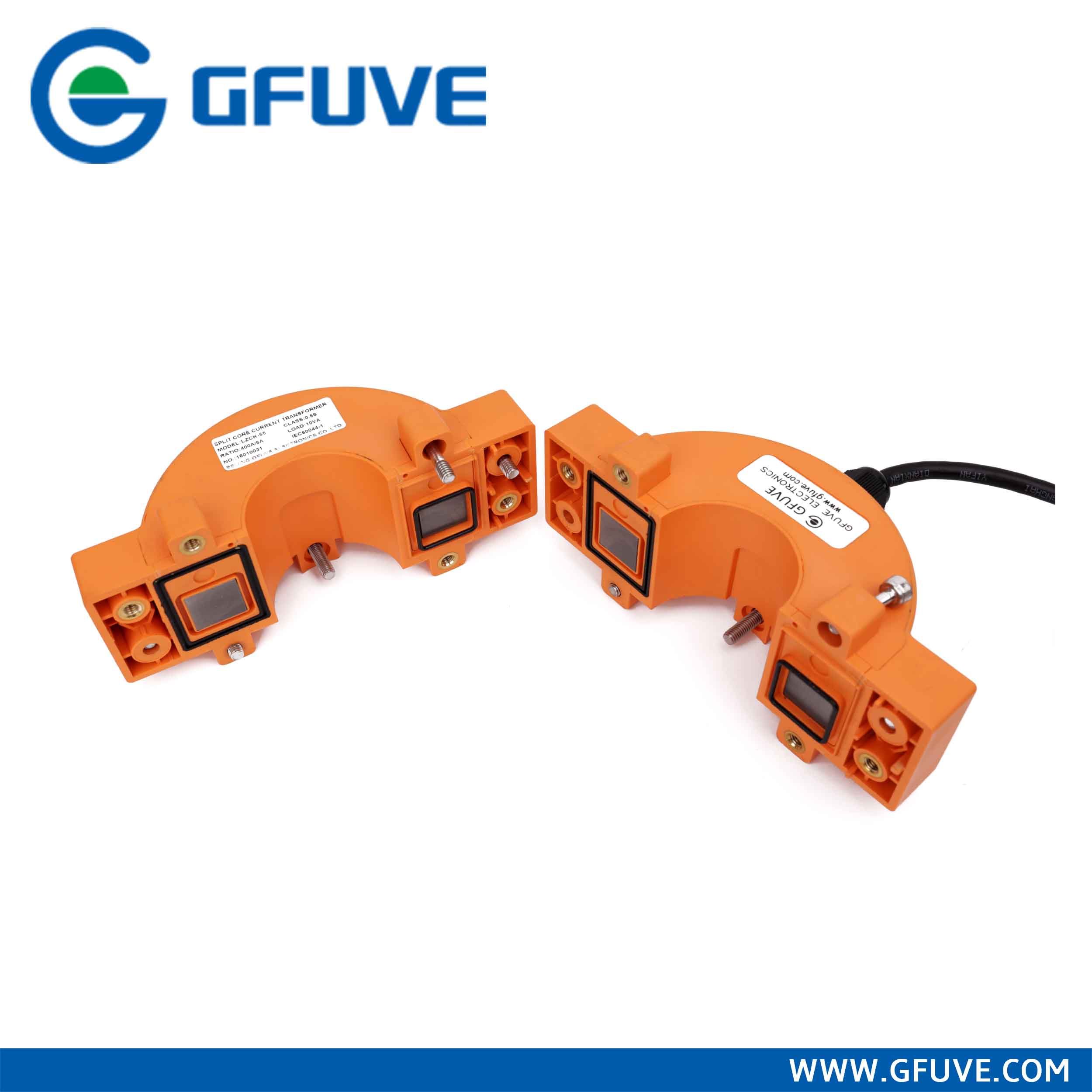

LZCK-55 5 to 0.1 Outdoors Split Core current transformer
LZCK series current transformers are applicable for AC power system 35kV and measurement of current of power supply equipment below 10KV also can be used for microcomputer protection. This type of current transformer employs imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case which is flame retardance anti-moisture, stable performance, no maintenance.
Guía de selección
| Modelo | Corriente nominal primaria | Carga nominal | Apertura (mm) | Descripción (mm) | Peso (kg) | Material | Impermeable |
| LZCK-55 | 100-1200A | ≤10VA | φ55 | 180×138×52 | 2 | PC | IP65 |
| LMCK185-10 | 300-3000A | ≤25VA | φ185 | 350×283×55 | 4.5 | PC | IP65 |
| LZCK310-10 | 300-600A | ≤10VA | φ50 | φ50 x φ110 x 32 | 1 | Resina | Caja de silicio (opcional) |
| LZCK322-10 | 30-600A | ≤10VA | φ50 | φ50 x φ110 x 52 | 1.6 | Resina | Caja de silicio (opcional) |
| LZCK350-10 | 20-600A | ≤25VA | φ50 | φ50 x φ110 x 105 | 3.1 | Resina | Caja de silicio (opcional) |
| LZCG530-10 | 30-600A | ≤20VA | φ45 | φ45 x φ120 x 65 | 5 | Resina | Caja de silicio (opcional) |
