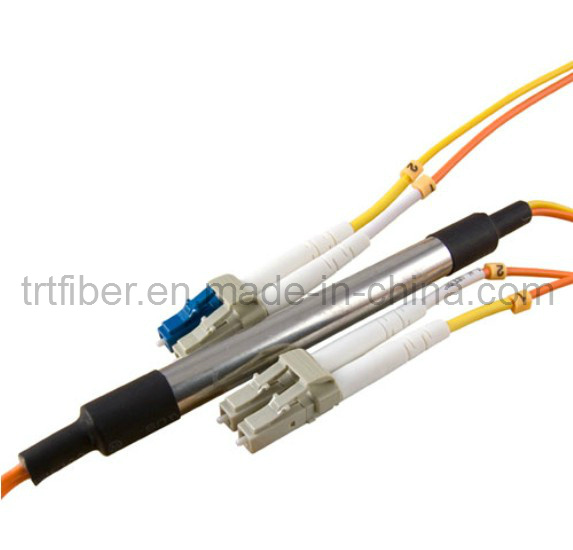

50/125 Om3 Mode Conditioning Fiber Optic Patch Cord

Name: 50/125 Om3 Mode Conditioning Fiber Optic Patch Cord
Brand: all-electronics-online.com
SKU: 723218255
Availability: InStock
Rating: 4.5 (30 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MOD-OM3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Communication
Type:	Multi-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

Mode conditioning patch cords are required where Gigabit 1000 Base-LX routers and switches are installed into existing multimode cable plants.These specialized cords help avoid Differential Mode Delay (DMD) effects that can occur when long wave transceiver modules operate at both single-mode and multimode wavelengths.The mode conditioning patch cord causes the single-mode transceiver to create a launch similar to a typical multimode launch.
Our mode conditioning patch cords are custom made with any combination of LC, SC, ST, FC or MTRJ connectors at each end.A 9/125-singlemode fiber is offset to a multimode fiber on one leg while the other leg consists of a standard multimode fiber.The single mode/multimode side is plugged directly into the equipment.The duplex multimode side of the patch cord is plugged into the cable plant side.
Our mode conditioning patch cords are compatible with 850nm or 1300nm Gigabit Ethernet on standard multimode fiber, and a VCSEL laser source into standard multimode fiber.They are built to the IEEE802.3z application standard.

Connector Type	Non-Conditioned Channel (Multimode)	Conditioned Channel (Singlemode/Multimode)		Ferrule Material	Housing Material
Insertion Loss (dB)
	Maximum	Multimode Direction	Singlemode Direction
LC	<0.5	<1.0	>2.0;<22.0	Ceramic	Composite
SC	<0.5	<1.0	>2.0;<22.0	Ceramic	Composite
ST	<0.5	<1.0	>2.0;<22.0	Ceramic	Metal
FC	<0.5	<1.0	>2.0;<22.0	Ceramic	Composite
MTRJ	<0.5	<1.0	>2.0;<22.0	Thermoplastic	Composite
