50~500kg Load Cell for Weight Scale

Name: 50~500kg Load Cell for Weight Scale
Brand: all-electronics-online.com
SKU: 773892285
Availability: InStock
Rating: 4.3 (42 reviews)

Price:	US $ 10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	30/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-12A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Defend Grade IP65:	Capacity 50~500kg

Product Description

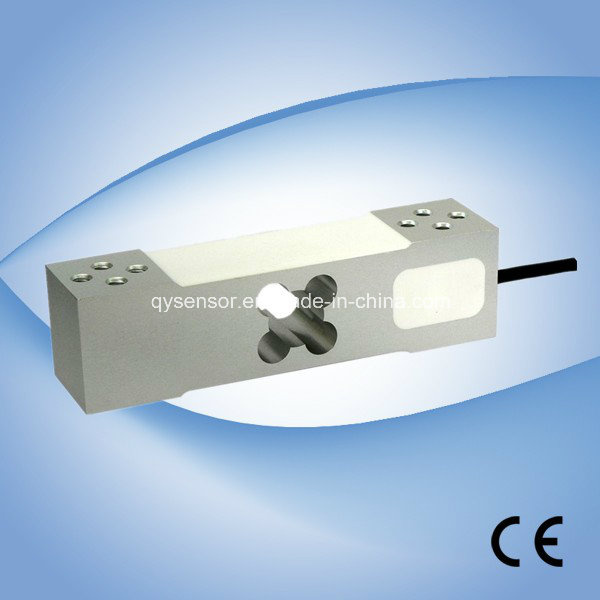

QL-12A load cells are available in the capacities from 50kg to 500kg.

Aluminum alloy construction with parallel beam type.
Silicon adhesive sealed, surface anodized and anti-corrosion.
Integral structure and easy installation.
Suitable for electronic price computing scale, electronic weight scale, electronic platform scales ,etc.

Features:
1.Capacity:50kg to 500kg
2.Defend grade: IP65
3.High accuracy,reliable performance.
4.Integral structure,easy installation.
5.Recommended platform size:400 × 400 (mm)

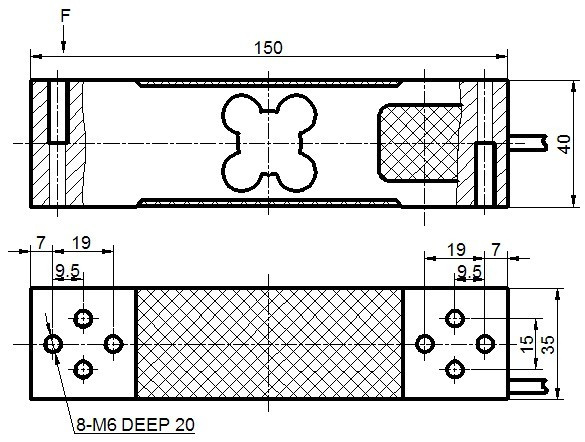

Electrical connection and Dimensions :(dimension unit:mm)

Specifications:
capacity	kg	50, 60, 100, 150, 200, 250, 300, 500
safe overload	%FS	120
ultimate overload	%FS	150
rated output	mV/V	2.0 ± 0.2
excitation voltage	Vdc	9 ~ 12
combined error	%FS	± 0.03
zero unbalance	%FS	± 1.5
non-linearity	%FS	± 0.02
hysteresis	%FS	± 0.02
repeatability	%FS	± 0.02
creep	%FS/30min	± 0.02
input resistance	Ω	406 ± 10
output resistance	Ω	350 ± 3
insulation resistance	M Ω	≥ 5000 @ 50 Vdc
operating temperature range	°C	-20 ~ +60
compensated temperature range	°C	-10 ~ +40
temperature coefficient of SPAN	%FS/10°C	± 0.02
temperature coefficient of ZERO	%FS/10°C	± 0.03

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four-core shielded cable.

Cable diameter:5mm

Cable length:1.5m

Ordering code: model-range- rated output-accuracy-defend grade- the length of cable
Example: QL-12A-200kg-2.0mV/V-0.02%FS-IP65-1.5m
