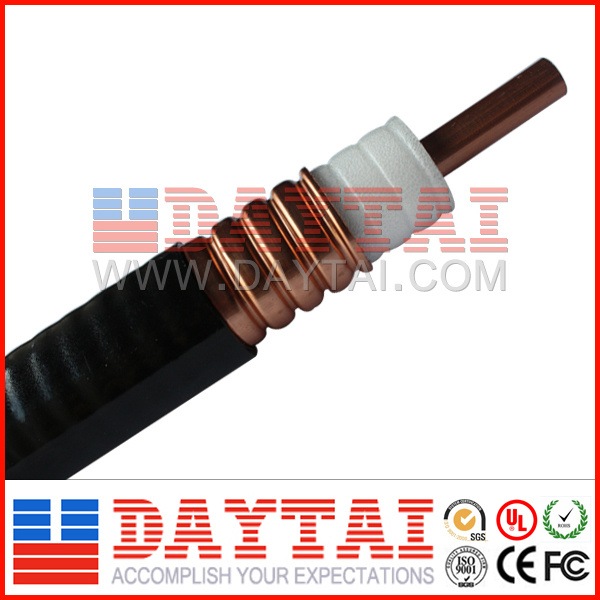

50 Ohm RF Coaxial 7/8" Feeder Cable
| Price: |
US $ 1-2.7/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
5000/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
7/8" Feeder Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Inner Conductor Diameter: |
9.05mm |
| Inner Conductor Material: |
Smooth Copper Tube |
| Insulation Material: |
Foam PE |
| Outer Conductor Diameter: |
24.90mm |
| Outer Conductor Material: |
Helical Corrugated /Annular Corrugated Copper |
| Jacket Material: |
PE |
| Jacket Diameter: |
27.5mm |
| Max. Pulling Strength: |
1470n |
| Cable Weight: |
530kg/Km |
| Certification: |
UL |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PE |
| Type: |
Feeder Cable |
| Brand: |
Daytai / OEM |
| Wire Core Material: |
Copper Clad Aluminum |
Product Description
1. Specification of 50 Ohm RF Coaxial 7/8" Feeder Cable
* 7/8" Feeder Cable
* 9.05mm Inner Conductor +24.90mm Outer Conductor +27.50mm Jacket
* Inner Conductor Material :Smooth Copper Tube
* Insulation Material : Foamed PE
* Outer Conductor Material: Helical corrugated copper tube/Annular corrugated copper tube
* Jacket Material: Polyethylene
2. Application of 50 Ohm RF Coaxial 7/8" Feeder Cable
* Used for all kinds of mobile communication.
* Suitable for :GSM,CDMA ,PHS ,TD-SCDMA ,CDMA2000 and WCDMA etc
3. Mechanical Characteristics| Item | Specification | Remarks |
| Static minimum bending radius | 110mm | Single bend |
| Dynamic minimum bending radius | 250mm | Repeated 15 times |
| Tensile strength | 1800N |
|
| Cable weight | 530kg/km |
|
4. Electrical Characteristics| Item | Specification |
| Characteristic impedance | 50±1Ω |
| Velocity | 88% |
| Minimum Insulation resistance | 5000 MΩ.km (DC 500V 1 minute) |
| Capacitance | 76 pF/m |
| Dielectric strength | 10000V (DC continued 1 minute ) |
| Peak power rating | 90kW |
| RF peak voltage | 3200V |
| VSWR typical value | 1.15 (10M~3000MHz) |
| 1.10 (800M~1000MHz) |
| 1.10 (1700M~2000MHz) |
| 1.10 (2100M~2400MHz) |
5. Technical Characteristics| Physical Dimensions |
| ITEM | 1-5/8″ | 1-1/4″ | 7/8″ | 5/8″ | 1/2″ | 3/8″ | 1/4″S |
| Inner Conductor (Diameter.mm) | 17.3 | 13.1 | 9.05 | 7.05 | 4.8 | 3.15 | 1.91 |
| Outer Conductor (Diameter.mm) | 46.5 | 35.8 | 24.9 | 19.8 | 13.8 | 9.53 | 6.4 |
| Jacket(mm) | Thickness | 1.75 | 1.8 | 1.3 | 1.2 | 1 | 0.85 | 0.6 |
| Diameter | 50 | 39.4 | 27.5 | 22.2 | 15.8 | 11.2 | 7.4 |
| Weight (kg/km) | 13.1 | 980 | 530 | 400 | 240 | 135 | 80 |
| Mechanical Characteristics |
| ITEM | 1-5/8″ | 1-1/4″ | 7/8″ | 5/8″ | 1/2″ | 3/8″ | 1/4″S |
| Minimum Bending Radius(mm) | Single Bending | 300 | 200 | 120 | 90 | 70 | 50 | 20 |
| 10 Repeated Bendings | 510 | 380 | 250 | 200 | 125 | 95 | 25 |
| Mobile Application | --- | --- | 500 | 450 | 350 | 300 | 200 |
| Max. Pulling Strength (N) | 3630 | 5900 | 1470 | 3630 | 1130 | 800 | 680 |
6. You can choose:
* 1/4" Feeder Cable
* 1/4" S Feeder Cable
* 3/8" Feeder Cable
* 1/2" Feeder Cable
* 1/2" S Feeder Cable
* 1/2" Aluminum Feeder Cable
* 5/8" Feeder Cable
* 7/8" Feeder Cable
* 7/8" S Feeder Cable
* 7/8" Aluminum Feeder Cable
* 7/8" S Aluminum Feeder Cable
* 1-1/4" Feeder Cable
* 1-1/4" Aluminum Feeder Cable
* 1-5/8" Feeder Cable
* 1-5/8" Aluminum Feeder Cable

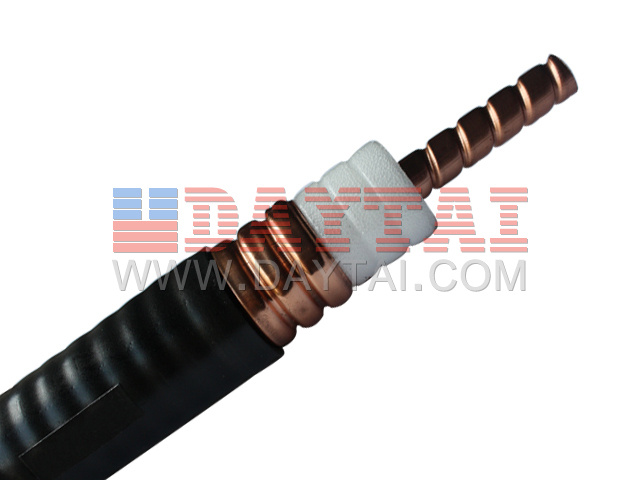

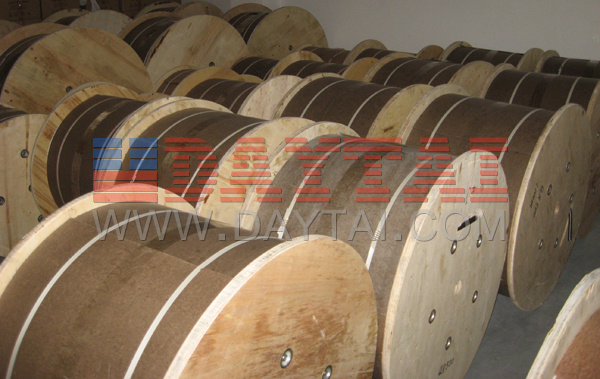

7. Pictures
