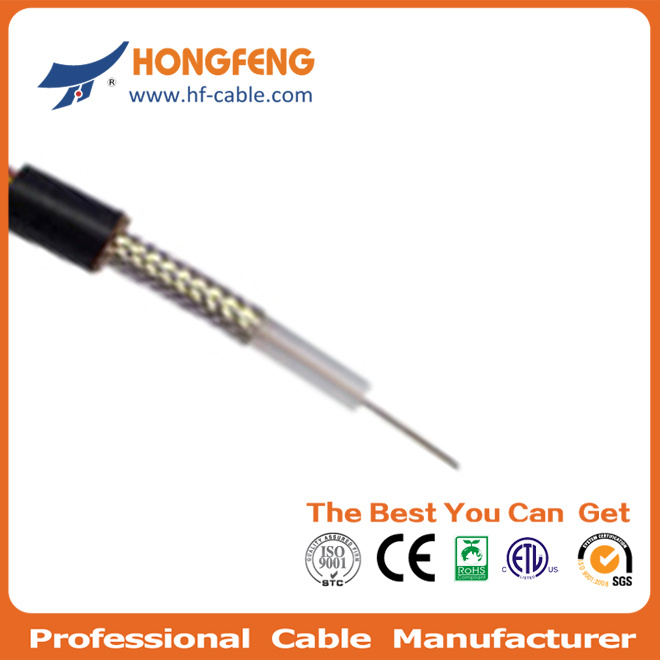

50 Ohm RF Drop/Trunk Communication Cable

Prod Model:	RG58 cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia
Impedance:	50 Ohms
Inner Conductor:	Stranded Cu/Tc/Spc
Insulation:	Solid PE
Shielding:	Cu/Tc Braiding
Shelth:	PVC Jacket
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	CE
Type:	Coaxial Cable

Product Description

Coaxial Cable RG58
1) Specification:
Inner Conductor (mm): 19/0.18
Insulation (mm): 2.95± 0.20
Outer Conductor (mm): 3.45
Jacket (mm): 4.95± 0.03
2) We can produce according to customer requirements!

Note:
1) Center Conductor: Tinned Copper, Bare Copper, and Copper Clad Steel available;
2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;
3) Braiding Wire: AL-Mg, Bare Copper and Tinned Copper available;
4) Braiding Wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15mm available;
5) Braiding Coverage: Between 30- 95% available
6) Jacket Color: White, black, etc.

Packaging:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's requirement;
2) Inner Packing: Wooden reel, Plastic reel, and Paper reel available;
3) Outer Packing: Carton Box, Pull out Box, Pallet available;
4) Other packing available according to client's requirement.

Product Origin: China
Brand Name: RuiFeng or OEM
Productivity: 300, 000Km/Year
Price Terms: FOB, CIF, CFR
Payment Terms: L/C, T/T, Western Union
Shipping Date: Generally within 15days

#Applications:
1) CATV-community antenna television;
2) CCTV-closed-circuit television;
3) DBS-direct broadcasting satellite.

Electrical Characteristics At20(@68 F. 20 C)
	Frequency(Mhz)	Maximum(dB/100ft)
Attenuation	10	1.42
	50	3.10
	200	6.80
	400	10.0
	700	14.0
	900	16.0
	1000	17.4
Min Return Loss(dB)	1-1000MHz	20
	1000-2150MHz	18
Impedance(Ω )	50± 3
Capacitance(pF/m)	102
Velocity Rate(%)	66



----------------------------------------

Warranty: 5 years

Delivery: 15-25 days after deposit

MOQ: 10KM per cable

----------------------------------------
