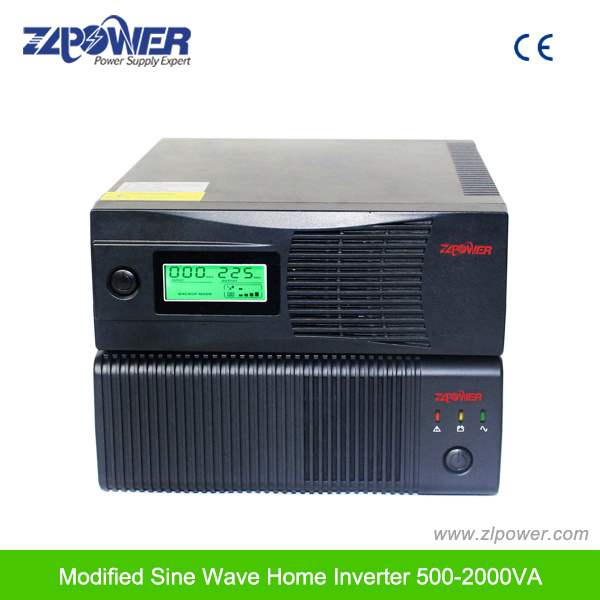

500-2000va Modified Sine Wave Inverter Home Inverter AC Charger
| Price: |
US $ 43.5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20/Piece |
| Pay Type: |
T/T,Western Union,Money Gram |
| Prod Model: |
IG 500-2000Va |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
500~2000va |
| Wave Form: |
Modified Sine Wave |
| Input Voltage: |
90-280VAC |
| Charge Current: |
8/10A |
| Efficiency(DC To AC): |
>80% |
| LED/LCD Display: |
Yes |
| Off Charge Function: |
Yes |
| Warranty: |
1 Year with 2% Spare Parts |
| Applicances: |
Home,Office Environment |
| Application: |
Home Appliances |
| Brand: |
Zlpower |
Product Description
500-2000Va Modified Sine Wave Inverter Home Inverter AC Charger
Main Features
*Adopt advanced MCU microprocessor control technology.
*Modified sine wave output.
*User selectable for wide or narrow input voltage range.
*Full automatic and silent operation.
*Intelligent speed fan to release heat.
*Compact size for convenient use and storage
*Built-in 10Amp super charger for up to 200Ah battery, off charging mode, even inverter not start, it can still charge.
*Small scale and cost effective inverter for home appliances and office equipment
*Multi-functional LED indicator light and alarm device.
Specificaiton
Home Inverter MODEL | IG500 | IG1000 | IG1000 | IG2000 |
| CAPACITY | VA/W | 500VA / 300W | 1000VA/600W | 1000VA / 600W | 2000VA / 1200W |
| INPUT | Phase | Single phase |
| Voltage | 220 / 230 / 240VAC |
| Voltage Range | 170-280VAC ( Narrow Range ) |
| 90-280VAC (Wide Range) |
| OUTPUT | Phase | Single phase |
| Voltage | 230VAC |
| Voltage Regulation(Batt. Mode) | +10% ~ 18% |
| Frequency | 50Hz or 60Hz |
| Frequency Regulation (Batt. Mode) | +/- 0.1 Hz |
| Output Waveform (Batt. Mode) | Modified Sine Wave |
| POWER FACTOR | P.F. | 0.6 |
| | DC Voltage | 12V | 12V | 24V | 24V |
| BATTERY | Charger Current | 8 Amp + / - 1Amp | 8 Amp + / - 1Amp | 10 Amp + / - 1Amp | 10 Amp + / - 1Amp |
| Floating Voltage | 13.7V + / - 0.2V | 13.7V + / - 0.2V | 27.4V + / - 0.4V | 27.4V + / - 0.4V |
| Overcharge Protection | 15V +/- 0.3V charger stops and fault | 15V +/- 0.3V charger stops and fault | 30V +/- 0.6V charger stops and fault | 30V +/- 0.6V charger stops and fault |
| TRANSFER TIME | Typical | 8ms |
| EFFICIENCY | DC to AC | >80% |
| INDICATOR | AC Mode | Green LED lighting |
| Battery Mode | Yellow LED lighting |
| Battery Charging Mode | Green LED flashing every 2 seconds |
| Overload | Red LED flashing every 0.5 second |
| Fault | Red LED lighting |
| AUDIBLE ALARM | Low Battery at Battery Mode | Sounding every 2 seconds |
| Overload | Sounding every 0.5 second |
| Fault | Continously sounding |
| PROTECTION | Full Protection | Deep Discharge, Overcharge, and Overload protection |
| PHYSICAL | Dimension (L x W x H) mm | 224 X 255 X 80 |
| Net Weight (kgs) | 1.7 | 1.9 | 2.2 | 2.5 |
| ENVIRONMENT | Operating Environment | 0~40 Degrees Centigrade, 0~90% relative humidity (non-condensing) |
| Noise Level | Less than 50dB |
Photos
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
