| Prod Model: |
SNFI-5000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Pure Sine Wave Inverter |
| Voltage Regulation: |
5% |
| Inverter Efficiency: |
> 87% |
| Company: |
Manufacturer |
| Input Voltage: |
160-265VAC |
| Output Waveform: |
Pure Sine Wave |
| Export Market: |
Global |
| Application: |
Widely Be Used |
| MOQ: |
1 Piece |
| OEM/ODM: |
Accept |
Product Description

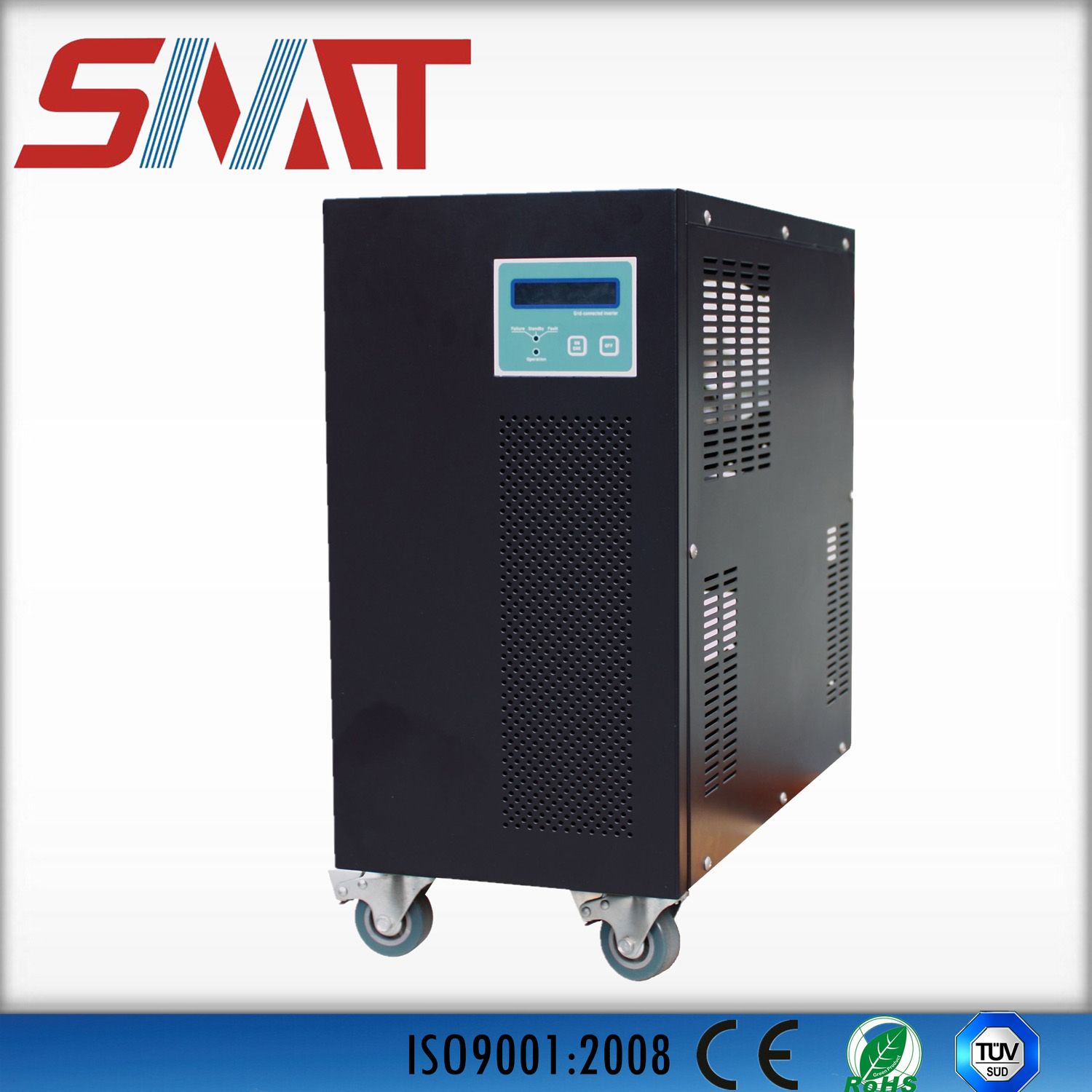

5000W off Grid DC to AC Pure Sine Wave Inverter
Product Overview:Pure sine wave inverter was designed by all digital technology concept. It's real pure sine wave output and can adapt to all kinds of loads.
Features:---It's power frequency design, output stable voltage and frequency can be worked for long time
---Eliminate the adverse factors by directing use of mains supply bring outage, voltage instability, noise interference and lightning invasion and more
---Power time is long enough to make sure electric equipment continuous and reliable work
---It's the best safeguard of system safety and reliability service by equipping this pure sine wave inverter
---Up to now, this series solar inverter is widely used in telegram, aerospace, railways, financial management, office automation, industrial automatic control, medical and health, military, scientific research, and other areas
Product Charactistic:1> Output pure sine wave
2> Input voltage range: -15%~25%
3> Output voltage regulation: ± 10%
4> Intelligent temperature cooling system
5> Power and fault condition showed by double color indicatore light

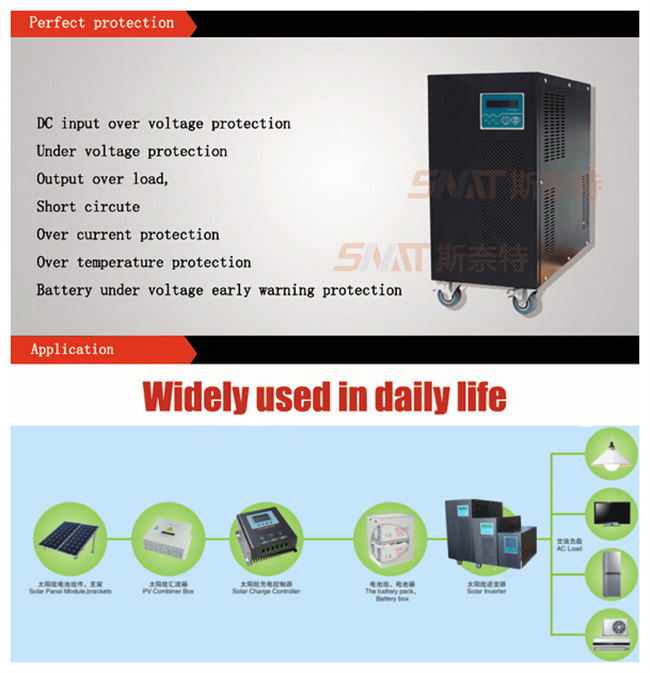

6> Protection Function: Shortcircuit, overload, overtemperature, batteryt under voltage, undervoltage alarm.
7> Core device controlled by single chip microcomputer, making the circuit structure is simple and precise control, control mode and control strategy are flexible and powerful. Working with low noise and high conversion efficien
Performance characteristics:---CPU control, high quality, intelligent pure sine wave output
---Inverter output and load all kinds of single-phase installation, such as motor, air conditioner, electric drills, fluorescent lamp, gas lamp, electrical appliances, communications equipment, industrial equipment and so on
---A single bond intelligent switch and convenient operation
---Excellent output short circuit protective design, can resist the large current load start impact
---Protection design for dc power supply circuit downside: when dc power supply is less than 15% of nominal value, the inverter will automatically power off
Product Application*Industrial equipment series: Solar energy; Wind power generation, Metal halide lamp, High-pressure sodium lamp, Ship, Vehicle, etc
*Electric tools series: electric saw, drilling machine, grinding machine, sandblasting machine, punching machine, weeding machine, air compressor, etc.
*Office equipment series: computer, printer, monitor, copier, scanner, etc
*Household appliances series: Cleaners, fan, Lamps, Refrigerator, Air conditioner, microwave oven, freezer, etc.
*Electronics series: TV, VCR, video games, radio, power amplifier, music equipment, monitoring equipment, terminal equipment, servers, intelligence platform, satellite communications equipment.
Notice:*This pure sine wave cannot be used for equipment to sustain life before permission
**This pure sine wave inverter is not suitable for high precision electronic equipment and shall be put into operation after confirmed by the professional technical personnel
***If this product is used for computer, built-in power of the computer should be selected brand power supply
****Application range: Apply to home appliance, air-conditioning equipment, single-phase power equipment, industrial equipment and more
Technical Parameter| Model-SNFI | 0.3KW | 0.5KW | 0.75KW | 1KW | 1.5KW | 2KW | 3KW | 5KW |
| Rated power | 300W | 500W | 750W | 1000W | 1500W | 2000W | 3000W | 5000W |
| DC voltage | 12VDC/24VDC/48VDC | 24VDC/48VDC | 48VDC/96VDC |
Input
voltage | 160-265V AC |
Input
frequency | 45--65Hz |
Output
voltage | 220VAC/230VAC |
Output
frequency | 50Hz/60Hz |
Switching
time | 5ms
|
Charge
current | max 15A |
Inverter
output protection | Input over voltage/under voltage protection, DC under voltage protection, peak surge protection, overload protection, 100-120%, 30s, >120%, 100ms, 150%, 50ms, output short-circuit <150μs |
| Noise | <45dB |
| Ambient temperature for operation | 0-40°C |
| Ambient temperature for storage | -15-+15°C |
| Relative humidity for operation/storage | 0-90% (no condensation) |
| Altitude for operation | 0-3000m |
| Attitude for storage | 0-15000m |
| Net weight/gross weight | 5.6/6.5 | 7.2/8.5 | 8.2/9.5 | 14/15.5 | 22.2/26 | 28.5/30.2 | 32/40 | 43.6/51.6 |
Company Information

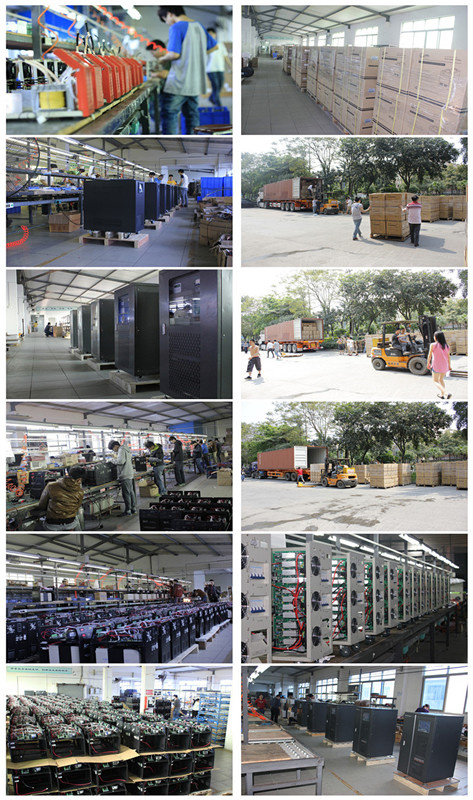

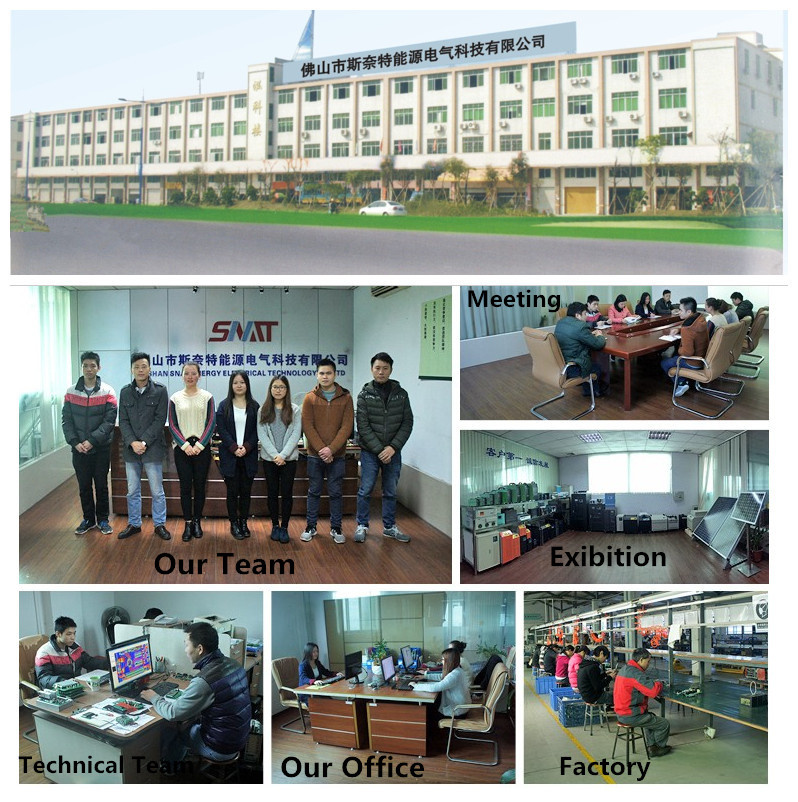

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. We have professional technical engineer with more than 10 years technical experience to develop and design solar products.Manufacture&Package
FAQ:
Q1 :What is the warranty of your product?
A:Quality warranty for 12 months; parts will be shipped free during warranty period.
Q2:Can you do OEM?
A:Yes,we can offer OEM service.
Q3 :How long is your lead time?
A:5~10 days
Q4: What minimum order do you require?
A:1 piece
Q5 :Why choose us?
1)All of our products have CE certification,ISO9001:2008,RoHS.
2)We have our own factory,the selling prices is competitive.
3)Prompt delivery and good after-sale services.
4)80% new materials for production and superior quality.
5)professional engineer designers.
