500kg Single Shear Beam Sensor Czl803 for Platform Scales

Name: 500kg Single Shear Beam Sensor Czl803 for Platform Scales
Brand: all-electronics-online.com
SKU: 803754955
Availability: InStock
Rating: 4.4 (141 reviews)

Price:	US $ 9-39/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BND-CZL803
Delivery Time:	3-7days
Warranty:	1year
Product Name:	Czl803 Shear Beam Sensor
Rated Load:	0.5-5t
Input Resistance:	400±10Ω
Output Resistance:	350±3Ω
Cable:	5m(Dia. 5mm 4-Wire Shielding Cable)
Ultimate Overload:	200%Fs
Operating Temperature:	-20ºC to +65ºC
Pattern:	Shear Beam Type

Product Description

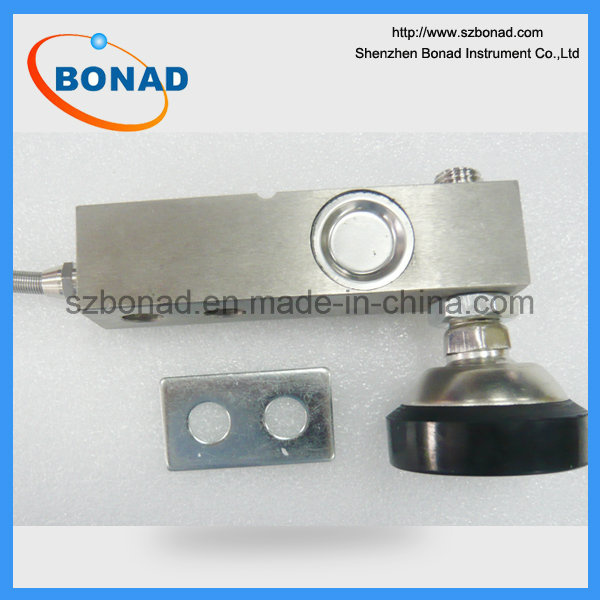

500kg single shear beam sensor czl803 for platform scales

Type:         singal-ended shear beam load cell
Material:      alloy steel or stainless steel
Surface:       nickel plated or anodized treatment
Protection:    IP68(laser welded)
Application:    floor scales, cattle scales, hoppers and tank scales , platform scales

1. Rated Load	0.5-5 (t)
2. Rated Output	3.0mV/V±0.25%
3. Zero Balance	±1%F.S
4. Input Resistance	400±10Ω
5. Output Resistance	350±3Ω
6. Excitation Voltage	9-12VDC
7. Nonlinearity	0.02%F.S
8. Hysteresis	0.02%F.S
9. Repeatability	0.02%F.S
10.Creep(30min)	0.02%F.S
11.Operating Temperature	-20ºC To +65ºC
12.Temperature Effect on Zero	0.03%F.S/10ºC
13.Temperature Effect on Span	0.02%F.S/10ºC
14.Insulation Resistance	5000MΩ(50VDC)
15. Safe Overload	150%F.S
16.Ultimate Overload	200%FS
17. Cable	5m(Dia. 5mm 4-wire shielding cable)

FAQ
What about your quality?
Each equipment must be carry out 100% examination and test again before shipping
What is the MOQ ?
if we have in store MOQ can be 1 sample
if we dont have in store , the MOQ will be 5 sample
what is the lead time ?
if we have in stock,it will be shipping to you within 3-5days.
if we dont have it in store ,it will need 10-40days.
How long the delivery time ?
Generally most equipment will be 3-10days after we receive your payment or the order conformed ,please conform with us before you made an order .
What is the warranty of the products?
One year ,but we can provide you life long support .
What is the package
Export standard Solid wooden case
What is the shipping way ?
We have stable forwarding agent for air and sea transportation ,and also express about DHL TNT etc , we will suggest you the best shipping way base on your requirement .
What is the payment term ?
T/T, Western Union,Money gram ,Paypal etc
