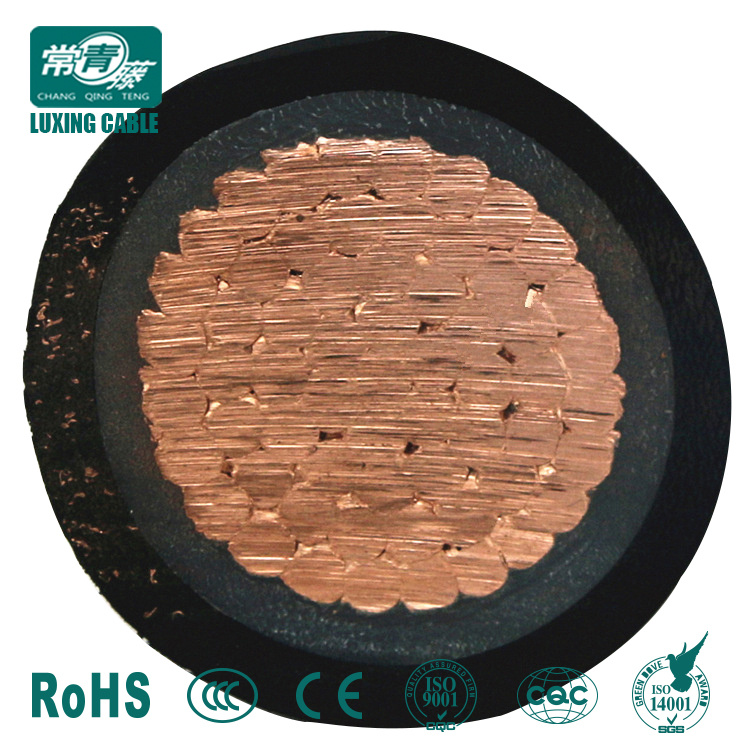

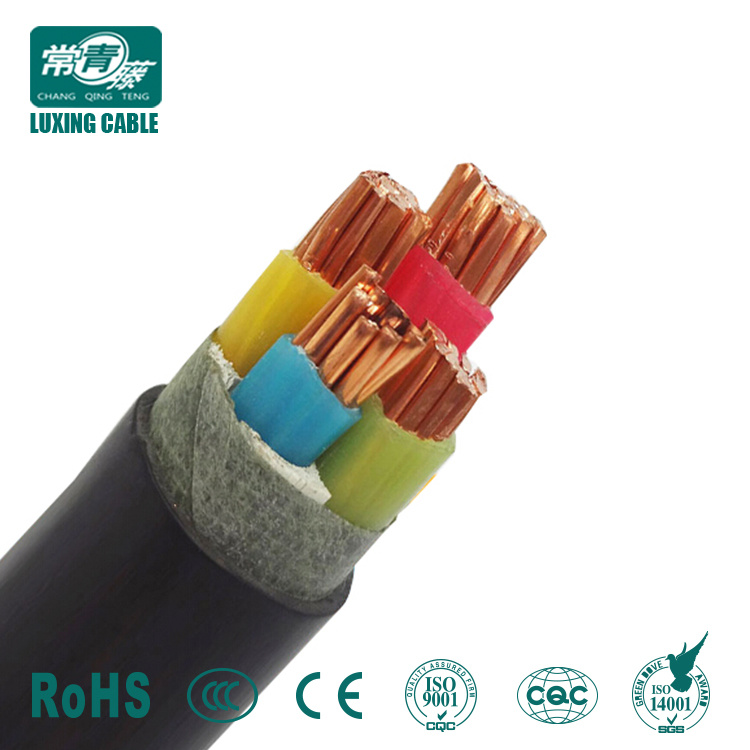

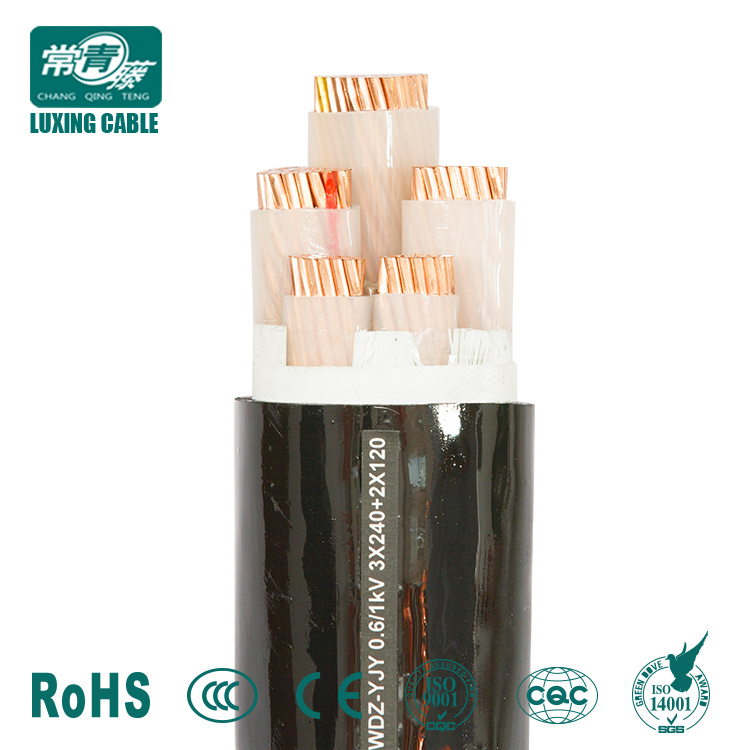

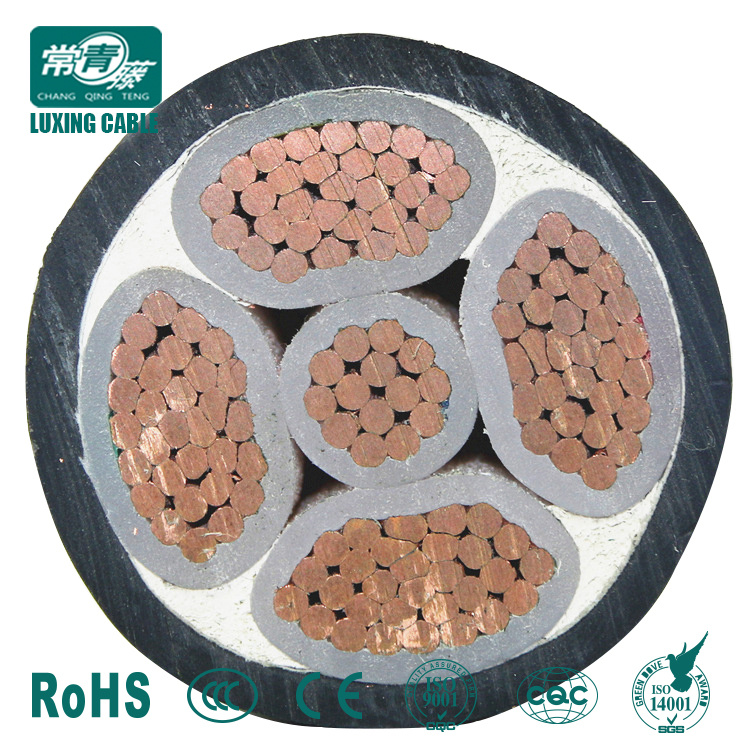

500mm Cable/XLPE Cable 500mm2/500mm Electric Cable

Name: 500mm Cable/XLPE Cable 500mm2/500mm Electric Cable
Brand: all-electronics-online.com
SKU: 691262841
Availability: InStock
Rating: 4.7 (33 reviews)

Price:	US $ 30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	VV, RVV, KVV, YJV.
Product Name:	500mm Cable/XLPE Cable 500mm2/500mm Electric Cable
Number Of Cores:	Single/2/3/4/5/6/7/8/10/16 Core...
Rated Voltage:	0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10(15)Kv,12/
Cross Section Area/Measure:	3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4
Standard:	IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 5023-
Conductor:	Stranded/Solid/Flexible Copper/Aluminum Conductor
Insulation:	XLPE/PVC/PE/PUR
Aplication:	Electric, House Wire, Building Wire...
Shield:	Copper Wire Screen(Cws), Aluminium Wire Screen(Aws
Armoured:	Steel Tape Armoured (Sta) or Steel Wire Armoured (
Application:	Telecommunication
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	PVC
Certification:	VDE
Model:	VV,Yjv...
Brand:	Chang Qing Teng

Product Description

500mm cable/xlpe cable 500mm2/500mm electric cable

Product Description

500mm cable/xlpe cable 500mm2/500mm electric cable

Application of 11kv cable 185mm

These three core cables are designed for distribution of electrical power with nominal voltage U0/U ranging from 3.6/6KV to 19/33KV and frequency
50Hz.
They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for
installation
on cable trays for industries, switchboards and power stations.

Standard of 11kv cable 500mm

DIN VDE 0276, BS 6622, IEC60502

Construction of 240mm 11kV Cable

Conductor of 11kv cable

Compacted circular stranded Copper , class 2

Compacted circular stranded Aluminum , class 2

Insulation of 11kv cable

XLPE (Crosslinked polyethylene)

Insulation Screen of 11kv power cable
of 11kv power cable

Extruded non metallic, semi-conducting compound.

Metallic Screen

Copper Wire

Copper Tape

Separator Layer

Non-conducting water blocking tape

Separation Sheath (for armored cable)

Extruded PVC, PE or LSZH, applied under the armor.

Armour(for armored cable)

1) Double layers of galvanized steel tape

2) Galvanized steel wires

3) Aluminum Wire ( for single core cable)

Outer Sheath

1) PVC ( polyvinyl chloride)

2) PE ( polyethylene)

PHYSICAL PROPERTIES

Operating Temperature: up to 90°C

Temperature Range: -5°C ( PVC sheath ); -20°C ( PE sheath )

Short Circuit Temperature: 250°C (short circuit duration up to 5 seconds)
Bending Radius: 15 x OD (Cable without metal sheath)

30 x OD (Cable with aluminum sheath)

Contact:

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
