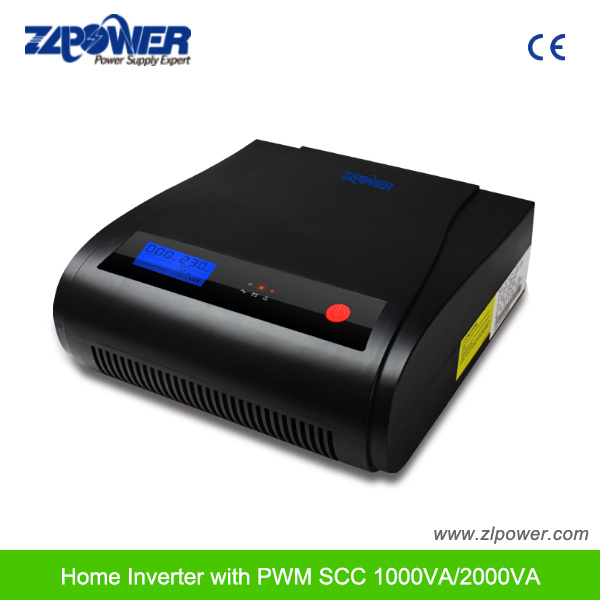

500va 1000va 2000va DC AC Inverter for Home Appliances

Name: 500va 1000va 2000va DC AC Inverter for Home Appliances
Brand: all-electronics-online.com
SKU: 808482015
Availability: InStock
Rating: 4.5 (36 reviews)

Price:	Negotiable/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	HD 500VA-2000VA
Product Status:	in Stock
Input Phase:	Single Phase
Input Voltage:	220V/230V/240V
Frequency:	50Hz/60Hz
Wave Form:	Modified Sine Wave
Power Factor:	0.6
AC To AC Efficiency:	98%
DC To AC Efficiency:	80%
Transfer Time:	15ms
Noise:	Less Than 50dB

Product Description

HD modified sine wave home Inverter Series

Key Features:
♦ HD Series AC charging Off grid Hybrid Inverter.
♦ Built-in enhanced AC charger
♦ Selectable Input voltage ranges/AC charging current
♦ Intelligent 3-stage charger control for efficient charging and preventing overcharger
♦ Auto restart upon AC recovery
♦ LCD+LED display
♦ Multiple protections: low battery alarm, low battery shutdown, over charger protection,
overload protection, over temperature protection, short circuit protection

Spefication:

Model Parameters		HD500-12	HD1000s-12	HD1000-12	HD2000-24
AC Input	Nominal Power	330W	660W	800W	1440W
	Input Voltage Waveform	sinusoidal(utility or generator)
	Nominal input Voltage	230VAC
	Selectable Voltage Range	165-270Vac±4%(Narrow Range), 85-270Vac±4%(Wide Range)
	Max AC input Voltage	Max:270VAC
	Frequency	50Hz:or 60Hz
AC output	Output Voltage Waveform	Modified sine wave
	Voltage Regulation (Batt.Mode)	230VAC (+10% / -18%)
	Nominal Output Frequency (Hz)	50Hz or 60Hz (Auto detection)
	Transfer Time	15ms Typical, 20ms Max.
AC Charger	Charging Algorithma	3-step charging
	Nominal Charger Current	15 Amp or 20Amp Selectable			10Amp
	Floating Charging Voltage	13.7VDC			27.4VDC
	Over charge Protection	16VDC			32VDC
Efficiency	Efficiency (Battery Mode)	>87%
	Efficiency (Line Mode)	>95%
Battery Voltage	Nominal DC input Voltage	12VDC			24VDC
	Low Battery Alarm	10.5VDC±0.3VDC			21VDC±0.6VDC
	Low DC input shut-down	10VDC±0.3VDC			20VDC±0.6VDC
	High DC input Alarm&Fault	16VDC±0.3VDC			32VDC±0.6VDC
System Parameter	Protections	Low battery, over charging, over load, over temp
	Indicators	LCD+LED Display
	Over-Load Protection	1min Load >110%,20s Load >120%,0s Load >150%
General Specifications	Operating Temperature Range	0ºC to 40ºC
	Storage Temperature	-15ºC~60ºC
	cooling	Forced air,variable speed fan
	Dimension(LWH)	276.724597mm
	Net Weight(kg)	1.8	2.1	2.2	2.6
