| Prod Model: |
SP-500-12 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
500W |
| Output: |
12VDC 41A |
| Input: |
85-264VAC 240-370VDC |
| Size: |
185*110*93mm |
| Efficienc: |
90% |
| Weight: |
1.8kg |
| Package: |
8PCS/15kg |
| Working Temperature: |
-10~+60 Degree C,20%~90%Rh |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
401 - 500W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
ISO |
Product Description

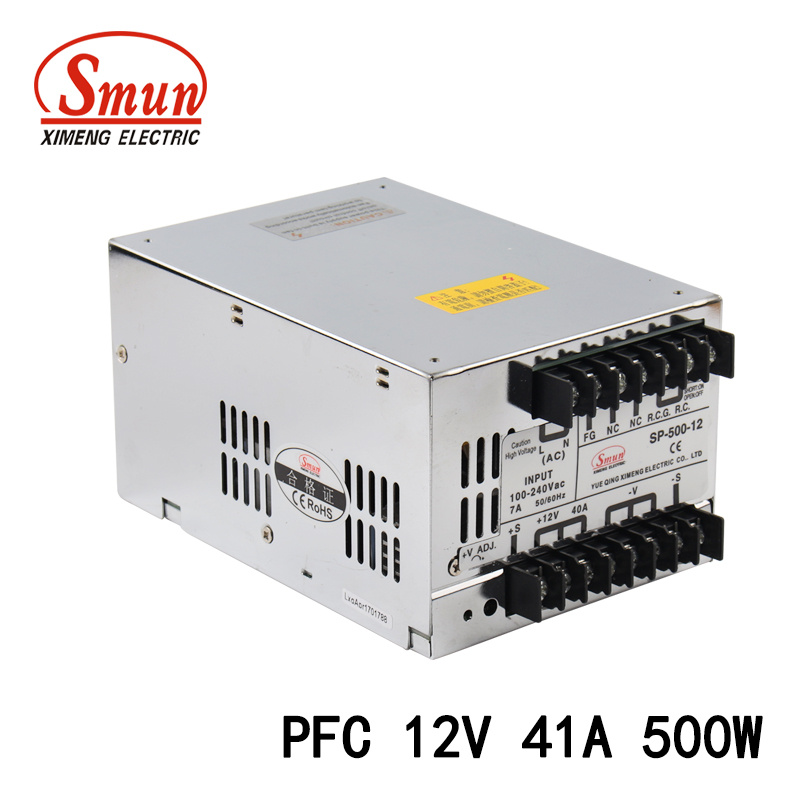

500W Switching Power, SMPS
Specification
AC input voltage range: 88~264VAC 47~63Hz; 124~370VDC
Input current: 7A/115V 3.5A/230V
Power factor: 0.95A/100~240VAC
AC inrush current: 18A/115V 36A/230V
Leakage current: <3.5mA/240VAC
Overload protection: 105%~135% Type: Plusing hiccup shutdown Reset: Auto recovery
High-temperature protection: RTH>=55Fan on, =<45Fan off>=70Cut off output(5~15V)output shutdown
Temperature coefficient: +-0.03%/(0~50)
Setup rise hold-up time: 1.5s, 50ms, 20ms
Vibration: 10~500Hz, 2G 10min, /1cycle, Period for 60min, Each axes
Withstand voltage: Input and output internal: 1.5KvAC, Input and enclosure: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance: Input and output internal, input and enclosure, output and enclosure: 500VDC/100MΩ
Working temperature and humidity: -10~+60(Refer to output derating curve), 20%~90%RH
Store temperature and humidity: -20~+85V, 10%~95%RH
Overall dimension: 185*120*93mm
Weight: 1.8Kgs
Safety standards: Meet UL1950requirement(Not apply for the mark)
EMC standards: CISPR22(EN55022), IEC1000-4, 2, 3, 4, 5, 6, 8, 11 IEC1000-3-2
Model, SP-500-12, SP-500-13.5, SP-500-15, SP-500-24, SP-500-27, SP-500-48
DC output voltage, 12V, 13.5V, 15V, 24V, 27V, 48V
Output voltage error, +-1%, +-1%, +-1%, +-1%, +-1%, +-1%
Rated output current, 40A, 36A, 32A, 20A, 18A, 10A
Output current range, 0-40A, 0-36A, 0-32A, 0-20A, 0-18A, 0-10A
Wave and noise, 240MVP-p, 240MVP-p, 240MVP-p, 240MVP-p, 240MVP-p, 300MVP-p
Inlet stability, +-0.5%, +-0.5%, +-0.5%, +-0.5%, +-0.5%, +-0.5%
Load stability, +-0.5%, +-0.5%, +-0.5%, +-0.5%, +-0.5%, +-0.5%
DC output power, 480W, 486W, 480W, 480W, 486W, 480W
Efficiency, 84%, 84%, 83%, 85.50%, 86.50%, 87%
Adjustable range for DC voltage, 10~13.2V, 12~15V, 13.5~18V, 20~26.4V, 24~30V, 41~56V
Over-voltage protection, 13.8-16.2V, 15.5-18.2V, 18-24V, 27.6-32.4V, 31-36.5V, 57.6-67.2V
| SP-500W Single output switching power supply With PFC |
Model NO. |
OUTPUT |
Tolerance |
range |
efficiency |
| S-500-12 | 12V, 0-41A | ± 1% | 240mV | 83% |
| S-500-15 | 15V, 0-32A | ± 1% | 240mV | 83% |
| S-500-24 | 24V, 0-20A | ± 1% | 240mV | 85.5% |
| SP-500-48 | 48V, 0-10A | ± 1% | 300mV | 87% |
| AC input voltage range | 85-132vac/170-264vac 47-63hz 240-370vdc |
| input current | 7A/115V 3.5A/230V |
| AC inrush current | 18A/115V 36A/230V |
| Leakage current | < 3.5mA/240VAC |
| DC adjustable range | ± 10% rated output voltage |
| over load protection | 105-150%cut down output, auto-recovery |
| over-voltage protection | 115-135% |
| set up, rise, hold up time: | 200ms, 100ms 30ms |
| withstand voltage: | I/P-O/P: 1.5KVAC 1Minutes
I/P-FG: 1.5KVAC 1MInutes
O/P-FG: 0.5VAC 1minutes |
| working temperature | -10~+60° C, 20-90%RH |
| weight/packing: | 1.8kg, 8pcs/16kg |
| Material | Aluminum |
| Size | 185*110*93MM |
| certificate | CE ISO9000 ROHS |
| Warranty year | 2 year |
| Protections | Short circuit / Over load / Over voltage |
