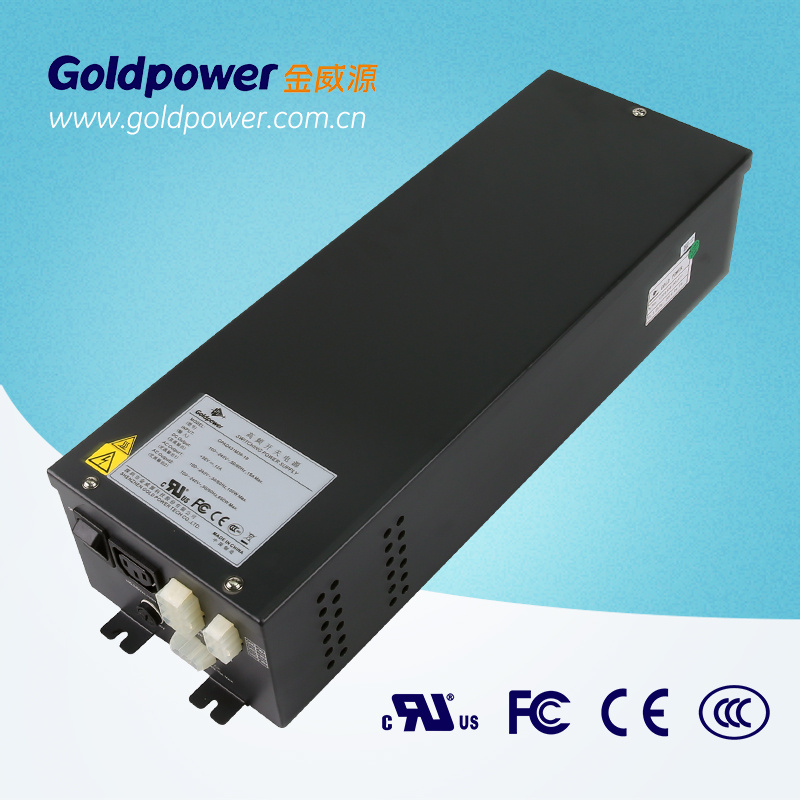

500W 36V Customized Power Supply for Payment Terminal Equipment

Name: 500W 36V Customized Power Supply for Payment Terminal Equipment
Brand: all-electronics-online.com
SKU: 733283422
Availability: InStock
Rating: 4.3 (108 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD431M36-1E
Power Factor:	0.95
Output Voltage:	36V
Output Current:	12A
Max Power:	504W
Output Efficiency:	82%
Mtbf:	100000h
Weight:	≤2.5kg
Output Type:	Single
Warranty:	2 Years
Output Power:	401 - 500W
Certification:	FCC
Input Voltage:	90~265VAC
Brand:	Goldpower

Product Description

500W 36V customized Power Supply for Payment Terminal equipment is a high efficiency ac/dc power supply.

Feature:

1. Modular design,save the investment costs,
2. High Efficiency up to 82%.
3. MTBF≥200,000h
4. Perfect protective function:Input over voltage,input under voltage,output over voltage,output current limit,short circuit protection,over temperature protection.
5. Power factor more than 0.95.
6. Annual repair rate: ≤1%

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~265	Vac
Input frequency	48~65	Hz
Power factor	0.97
Output
Output voltage range	36	Vdc
Output current range	12	A
Output power	504	W
Output efficiency	82	%
Ambient
Working temperature	-25~55	ºC
Storage temperature	-40~80	ºC
Relative hunidity	10~95	%
Altitude	0~5000	m
Atmosphere pressure	54~106	KPa
Cooling	Air forced ciiling
Mechanical
Dimension(LWH)	435149101.5 mm
Weight(KG)	2.5KG

About us:

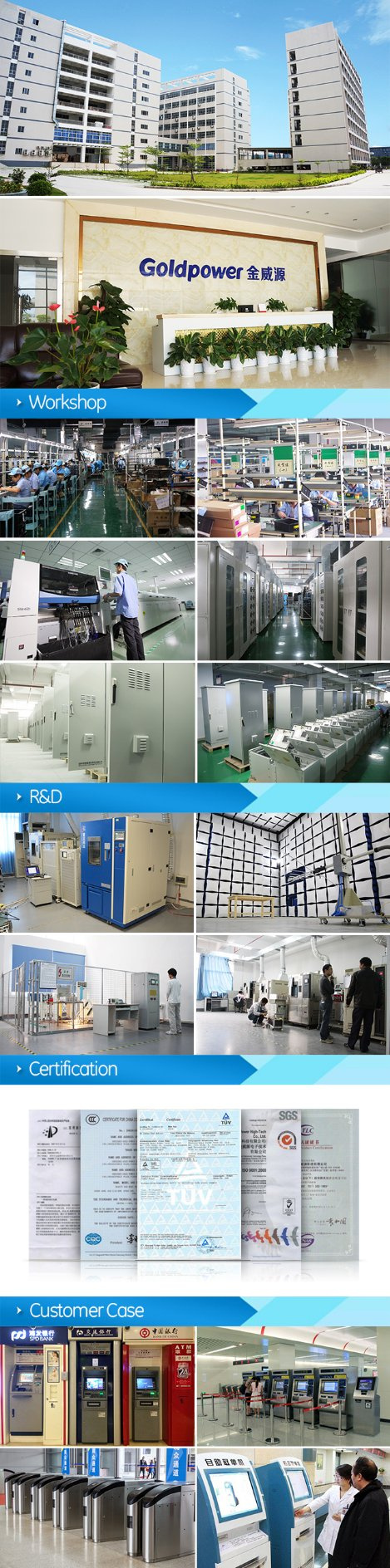

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
