| Prod Model: |
GW500-6000W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
Gw500-6000W |
| Input Voltage: |
12V or 24V or 48V or 72V DC Input |
| With AVR Function: |
Yes |
| With UPS Function And Charger: |
Yes |
| New Good Functions: |
Optional DC/AC Priority Function |
| Peak Power: |
3 Times Peak Power |
| Wave Form: |
Pure Sine Wave |
| Large LCD Digital Display: |
Yes |
| Warranty: |
2 Years |
| Power Factor: |
1.0 |
Product Description
500W-6000W Power Inverter Solar Inverter Pure Sine Wave Inverter With AVR Function
500-6000w Wide Capacity Range
Main Application
1> Transport equipments: military vehicle, police car, Medical ambulance, ship, traffic lights etc.
2> Industrial equipments: solar energy system, wind power, metal halid lamp, high voltage sodium lamp, etc.
3> Office equipments, computer, printer, display apparatus, duplicator, scanners, digital camera, digital pickup camera, etc.
4> Home equipments: cleaner, fan, lighting, electric cutter, sewing machine, etc.
5> Kitchen appliances: microwave ovens, induction cooker, refrigerator, etc.
6> Electric tools: electric saw, driller, muller, sandblasting machine and punching machine, lawn mower, air compressor, etc.
7> Electronic field: TV, DVD, video games, power amplifiers, auto equipment, monitoring equipment, terminal equipment, server, intelligent platform, satellite communication equipment, etc.
Key Feature
1. Low voltage protection (safeguard the service life of the battery): When Battery voltage drop to lowest point of enactment, buzzer will give an alarm, and after 1 min the inverter will turn off automatically.
2. Over voltage protection: When over voltage inverter will turn off automatically.
3. Overload protection: Overload protection to prolong time.
4. Over heating protection: Temperature above 40 degree, the inverter turn on the cool fans automatically, if above 60 degree, the buzzer will keep on alarm for 1 min then shut off. If above 70 degree, inverter will shut down immediately.
5. Charger protection: Constant current and voltage charging.
Usage:
Please assure the Inverter Power is switch off before connection of the battery. Please connect the anode to the red interlink, and cathode pole to the black interlink, be assure of the steady connection, then connect to the load, after all these done, press the turn on button to start inverter.
1. Do not connect the anode and cathode in wrong places.
2. Use in ventilated and dry environment.
3. When output in high voltage, please DO NOT operate with power on.
4. Turn on the Inverter when short circuit is not allowed.

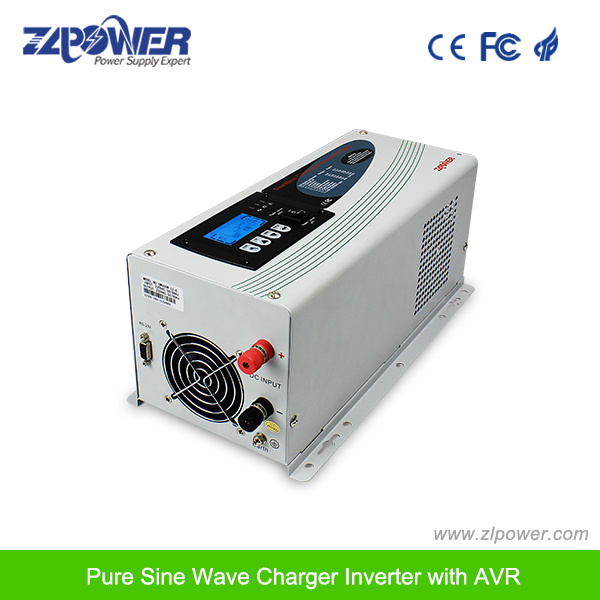

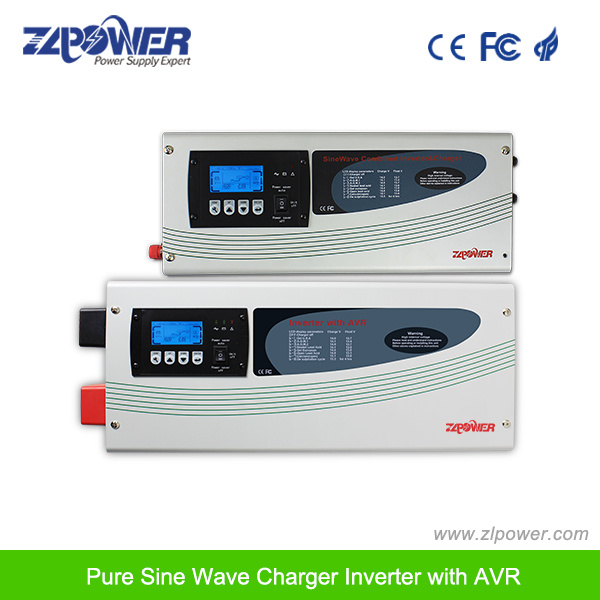

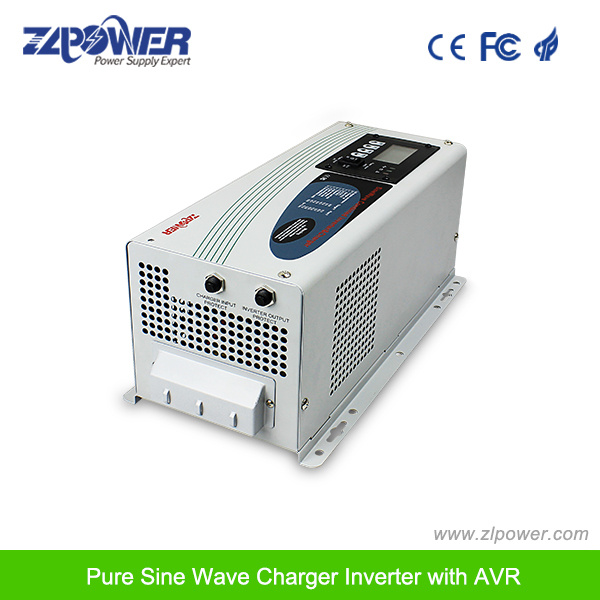

Photos:
Specification:
| Model Parameters | GW1000 | GW2000 | GW3000 | GW4000 | GW5000 | GW6000 |
AC
Input | Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 120VAC/230VAC | 230VAC |
| Input Voltage Range | 80Vac-150Vac for 120V, 135Vac-270Vac for 230V |
| Low Line AVR Disconnect | 100Vac±4% for 120V, 195Vac±4% for 230V |
| Low Line AVR Re-connect | 95Vac±4% for 120V, 185Vac±4% for 230V |
| Low Line Disconnect | Normal:85Vac±4%,Wide:80Vac±4% for 120V, Normal:154Vac±4%,Wide:135Vac±4% for 230V |
| Low Line Re-connect | Normal:90Vac±4%,Wide:85Vac±4% for 120V, Normal:164Vac±4%,Wide:145Vac±4% for 230V |
| High Line Disconnect | Normal:136Vac±4%,Wide:140Vac±4% for 120V, Normal:263Vac±4%,Wide:263Vac±4%for 230V |
| High Line Re-connect | Normal:131Vac±4%,Wide:135Vac±4% for 120V, Normal:253Vac±4%,Wide:253Vac±4%for 230V |
| Max AC input Voltage | 120V for Max150V, 230V for Max270V |
| Frequency | 50Hz:41-54Hz, 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | LV:120Vac ±10%rms, HV:230Vac ±10%rms |
Nominal Output
Frequency (Hz) | 50Hz ± 0.3Hz, 60Hz ± 0.3Hz |
AC
Charger | Nominal Charger
Current | 20A/35A/50A/70A/90A(5 stages adjustable charging current) |
| Over charge Protection | Bat.V≥15.5VDC for 12V battery, Bat.V≥31.0VDC for 24V battery, Bat.V≥62.0VDC for 48V battery, beeps 0.5s every 1s & fault after 60s |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 12/24/48Vdc | 24/48Vdc |
| Low Battery Alarm | 10.5VDC±0.3VDC for 12Vdc |
| 21VDC±0.6VDC for 24Vdc |
| 42VDC±1.2VDC for 48Vdc |
High DC input
Alarm & Fault | 16VDC±0.3VDC for 12Vdc |
| 32VDC±0.6VDC for 24Vdc |
| 64VDC±1.2VDC for 48Vdc |
| | Transfer Time | 15ms(max) |
System
Parameter | Over-Load Protection | 110%the output,load>150%,beeps 0.5s every 1s,and Fault after 20s |
Output Short Circuit
Protection | Current limit (Fault after 10s) |
| Surge Rating(10s) | 1:3(VA) |
| Protections | Low battery,over charging,over load,over temp |
| Indicators | LED+LCD Display |
General
Specifications
| Operating Temperature
Range | 0ºC~40ºC |
| Storage Temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air,variable speed fan |
| Dimension(L*W*H) | 475*242*182 | 653*242*185 |
| Net Weight(kg) | 17.1 | 19.3 | 22.5 | 34.5 | 37.6 | 38.8 |
Company Information
SHENZHEN ZLPOWER ELECTRONIC CO.,LTD
1. A professional manufacturer which cover UPS,inverters and batteries with 8 years experience
2. Own 68 countries and market over the world
3. Welcome OEM, high quality with CE&ISO certificate
Our Services
2 Years Warranty with 2% spare part and technical support, excellent pre-sale and after-sale service.
OEM or Special design are available like OEM logo, package and so on
