500W~8000W Home Use off Grid Pure Sine Wave Power Inverter
| Price: |
US $ 145-250/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
LW500-LW8000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| AC Input And Output Voltage: |
120/220/230/240VAC |
| DC Input: |
12, 24, 48, 72VDC |
| Peak Power: |
3 Times as Rated Power |
| Frequency: |
50Hz/60Hz |
| Wave: |
Pure Sine |
| Battery Efficiency: |
>85% |
| Line Efficiency: |
>96% |
| Power Saver: |
Load<25W |
| Audible Noise: |
<60dB |
| Charging Current: |
20A/35A/50A/75A/90A |
Product Description

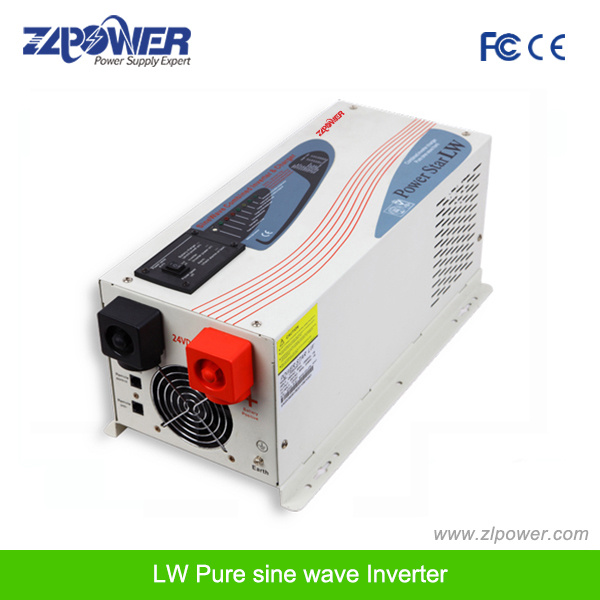

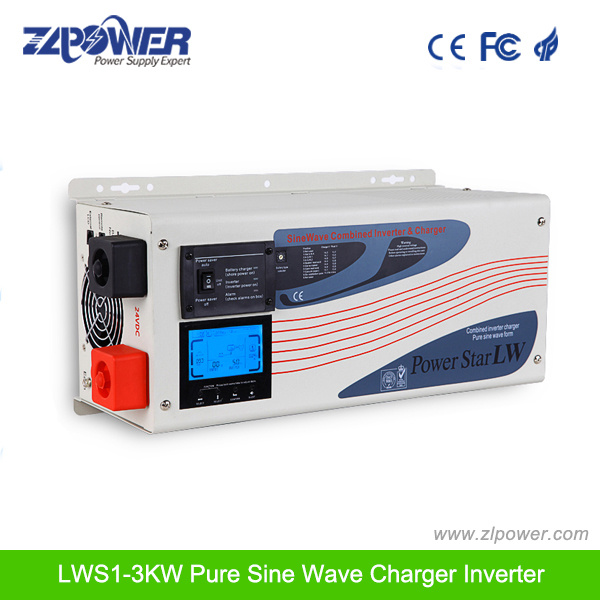

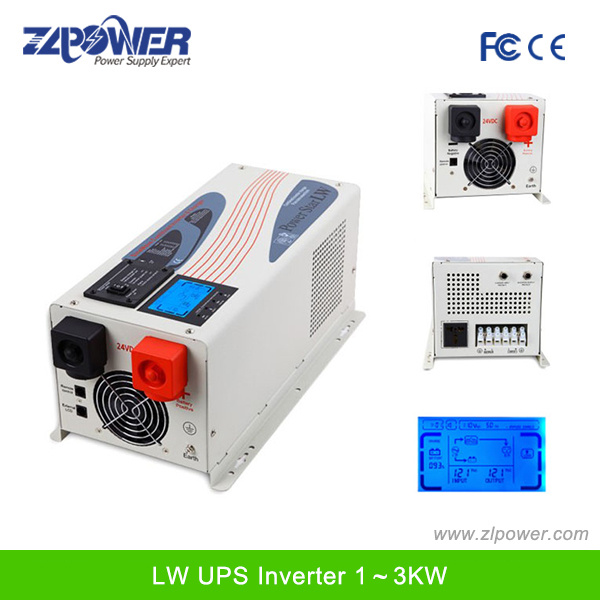

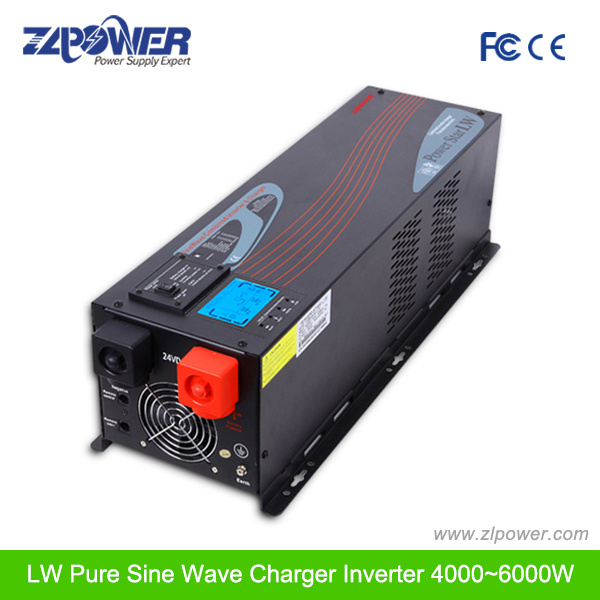

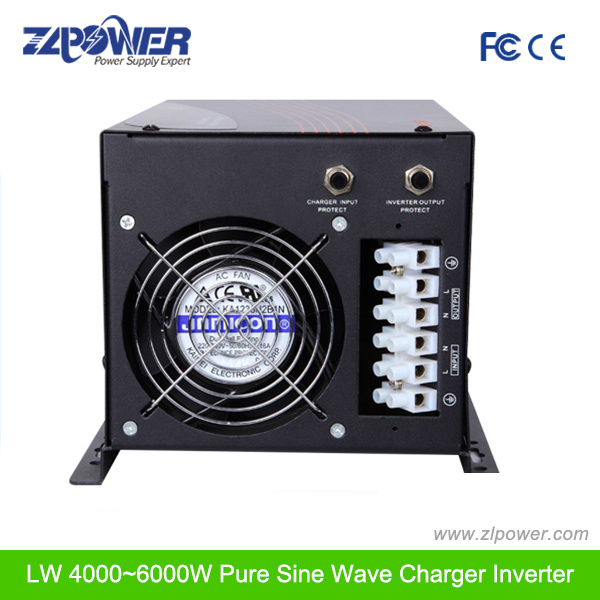

Off grid pure sine wave power inverter 500W~8000W LW Pure Sine Wave Inverter Charger 1000W-6000W, LED/LCD digital display, 3times peak power, low frequency type with transformer, UPS function. It widely applied in wind generator, Solar power system, house, vehicle, ship, navigation and places where lack of city power, mobile electricity work and telecommunications device, launch Station.

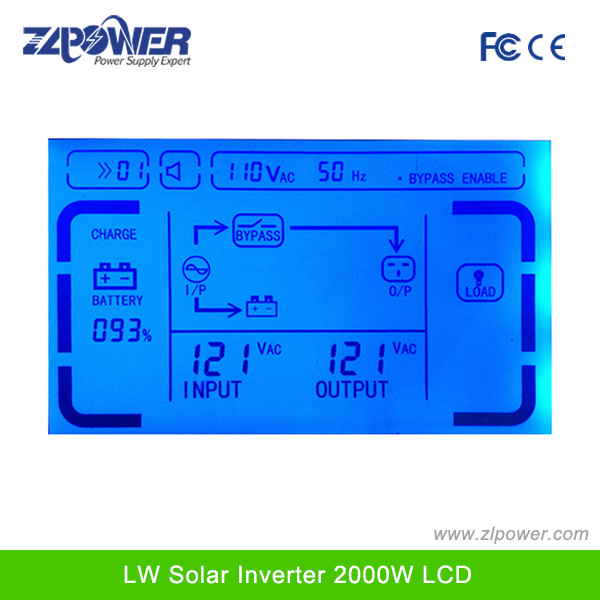

Main Features:1.LED/LCD digital display show voltage, load and battery info in real time.
2.Peak power is three times of rated power.
3.Can work with inductive load such as air conditioner, motor door and so on.
4.Pure sine wave output, available for sensitive load.
5.4-step progressive charging, 7 battery type selector.
6.Fast and powerful charger with 35A and 75A/90A.
7.Accept generator's energy output.
8.High power factor 0.9, low power consumption.
9.Automatically transfer between battery and line modes.
10.Microprocessor control guarantees high reliability.
11.Bypass without battery connected.
12.Remote control function.
13.Protection against: Over load, over temperature, over charging, low battery
14.Reverse connection (optional by hard connector), BlackoutsPhotos
Specification| Product Series | | LW
1000 | LW
1500 | LW
2000 | LW
3000 | LW
4000 | LW
5000 | LW
6000 |
| General Specification | Input Wave form | Sine wave (Utility or Generator) |
| Nominal voltage | 120VAC | 230VAC |
| Low voltage trip | 90v + 4% | 184v/154v + 4% |
| Low voltage reconnect | 100v + 4% | 194v/164v + 4% |
| High voltage trip | 140v + 4% | 253v + 4% |
| High voltage reconnect | 135v + 4% | 243v + 4% |
| Max input AC voltage | 150VAC | 270VAC |
| Nominal input frequency | 50Hz or 60Hz (Auto detect) |
| Low freq trip | 47Hz for 50Hz, 57Hz for 60Hz |
| High freq trip | 55Hz for 50Hz, 65Hz for 60Hz |
| Output wave form | (Bypass mode) same as input |
| Overload protection | Circuit breaker |
| Short circuit protection | Circuit breaker |
| Transfer switch rating | 30amp or 40amp |
| Efficiency on line transfer time | 95%+ |
| Line transfer time | 10ms Typical |
| Bypass without battery connected | yes |
| Max bypass current | 30amp or 40amp |
| Bypass overload current | 35amp or 45amp: Alarm |
| Inverter Specification Output | Output wave form | Pure sine wave |
| Output continuous power watts | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Output continuous power VA | 1000 | 1500 | 2000 | 3000 | 4000 | 5000 | 6000 |
| Power factor | 0.9-1.0 |
| Nominal output voltage rms | 120/230VAC |
| Output voltage regulation | 10% rms |
| Output frequency | 50Hz + 0.3Hz or 60Hz + 0.3Hz |
| Nominal efficiency | > 88% |
| Surge ratings | 3000 | 4500 | 6000 | 9000 | 12000 | 15000 | 18000 |
| Short circuit protection | Yes, fault after 10 seconds |
| Inverter Specification Input | Nominal input voltage | 12V | 24V | 48V |
| Minimum start voltage | 10V | 20V | 40V |
| Low battery alarm | 10.5V | 21V | 42V |
| Low battery trip | 10V | 20V | 40V |
| High voltage alram | 16V | 32V | 64V |
| Power saver | Below 25watts when enabled |
| Power saver | Same switched on/off on remote |
| Charge Mode Specification | Input voltage range | 95-127VAC | 194-243VAC/ 164-243VAC(W) |
| Output voltage range | Dependent on battery type |
| Charge current | 35A/70A |
| Battery initial voltage for start up | 0-15.7v for 12v (*2 for 24v; *4 for 48v) |
| Over charge protection shutdown | 15.7v for 12v (*2 for 24v; *4 for 48v) |
| Others | Remote control/RS232/USB | Yes, Optional |
| Size: in mm | 1000/2000/3000 Model: 442*218*179 |
| | 4000/5000/6000 Model: 598*218*179 |
| Net weight | LW1000 | LW1500 | LW2000 | LW3000 | LW4000 | LW5000 | LW6000 |
| | 18kgs | 19kgs | 20kgs | 22kgs | 35gs | 38kgs | 40kgs |
