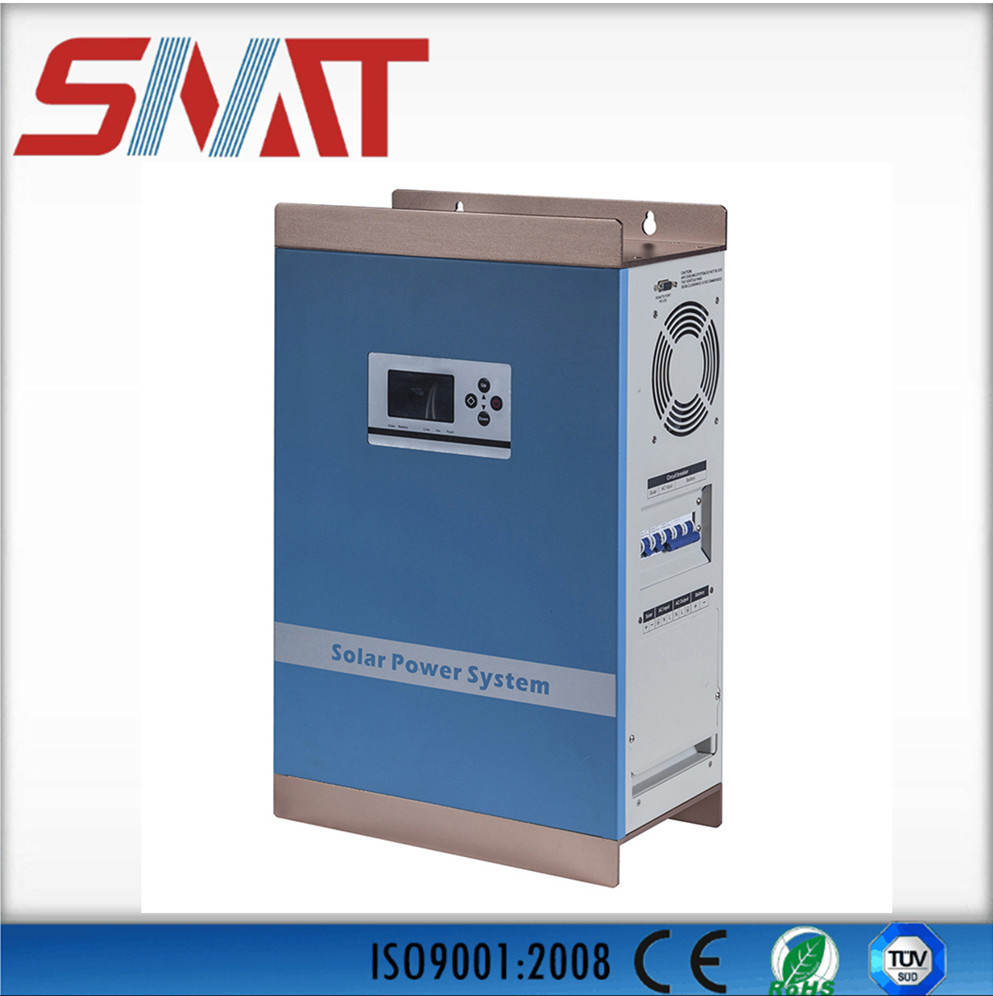

500W Hybrid Solar Inverter with Built-in Charge Controller

Prod Model:	NKP-500W
Name:	Solar Inverter with Built-in Controller
Snat/OEM/ODM:	Accept
Input Voltage:	85-138VAC/170-275VAC
Output Waveform:	Pure Sine Wave
Output Frequency:	50/60Hz
Efficiency:	>85%(80% Resistive Load)
Overload:	110-120%/30s;>160%/300ms;
Company:	Manufacturer&Trading
Application:	Commerical, Industry
MOQ:	1 Piece

Product Description

Product overview:
The product is an integrated intelligent inverter with built-in charge controller system designed for large photovoltaic power.Based on double MCU intelligent control technology,it provide customers with the best experience.
It applies to different types of loads because of its pure sine wave output.Its mains supply preferred mode,saving mode and battery preferred mode are all settable,thus making it

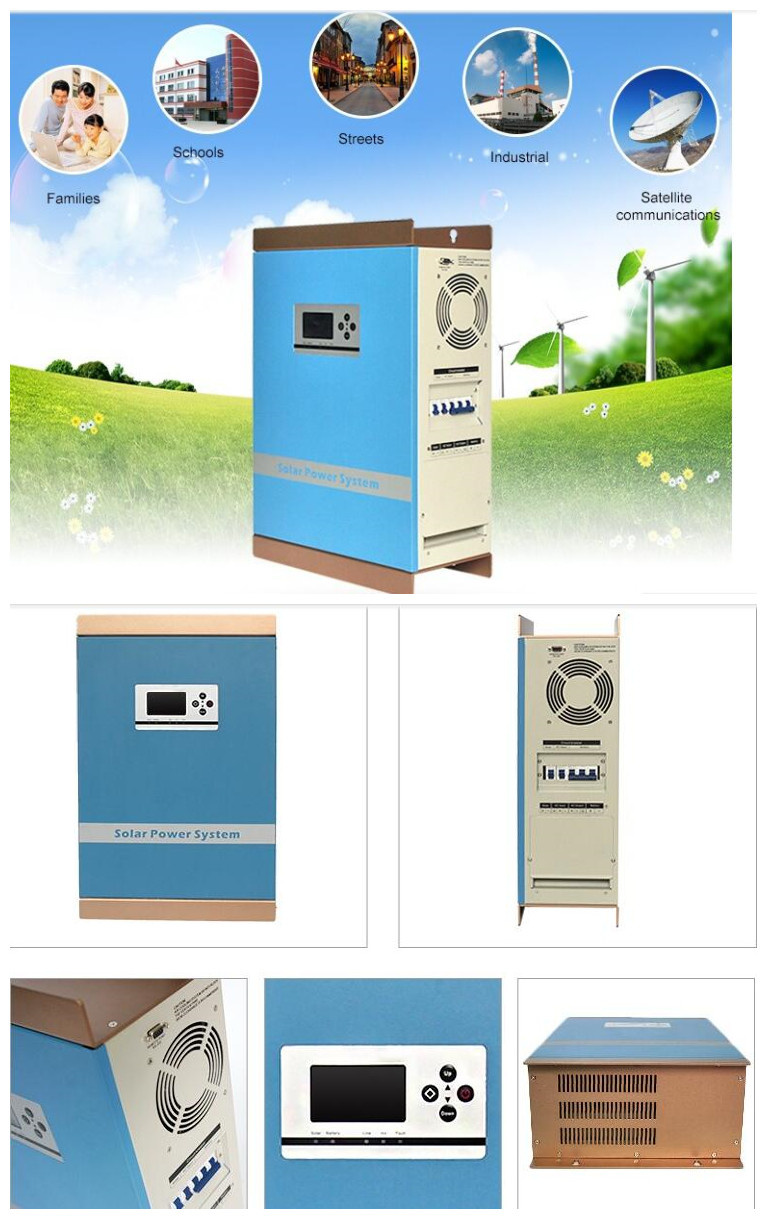

to meet the different application needs of users.It has intelligent optimization SOC control and independent three-stage photovoltaic charge management for battery to improve charge efficiency.LCD display realize the visualization of operation status of equipment.It is widely applied to large solar power generation occasions including families,schools,streets,frontier defense,pasturing areas,industrial and mining enterprises,Satellite communications equipment,etc.

Main features:
Excellent performance because of double MCU intelligent control technology.
A wide range of applicable loads because of pure sine wave AC output.
Mains supply preferred mode,saving mode and battery preferred mode are all settable,thus making it easy to meet the different application needs of users.
Excellent charge efficiency and a longer battery life because of intelligent optimization SOC control and independent three-stage photovoltaic charge management.
Full digital LCD display for visualization of operation status of the equipment.
Overprotection functions(overcharge protection,overdischarge protection,overload protection,short circuit protection and overtemperature protection).
Technical Parameters:

Mode: NKP-		500W
Rated power		500W
Battery	Rated voltage	12VDC/ 24VDC/48V DC
Controller	Solar input voltage	<25V, x 2/24V, x4/48V, x8/96V
	Charge current	20-60A
	Voltage of boosting charge	14.2V, x2/24V, x4/48V, x8/96V
	Voltage of direct charge	14V, x2/24V, x4/48V, x8/96V
	Voltage of floating charge	13.8V, x2/24V, x4/48V, x8/96V
Inverter	Input voltage	85-138/170-275V AC
	Input frequency	45-65Hz
	Charge current	30A(default) -C0-C6
	Battery type	U0-U7 (settable)
	Output voltage	110/220V AC, ±5%( inversion mode)
	Output frequency	50/60Hz ±1% (inversion mode)
	Output waveform	Pure sine wave
	Switching time	<10ms (typical load)
	Efficiency	>85% (80% resistive load)
	Overload	110-120%/30S, >160%/300ms
	Protection function	Battery overvoltage protection,battery undervoltage protection,overload protection,short circuit protection,overtemperature protection,etc.
Ambient temperature for operation		0-40ºC
Ambient temperature for storage		-15 - +50ºC
Relative humidity for operation/storage		0-90%(no condensation)
External dimension(mm)		175*350*550mm

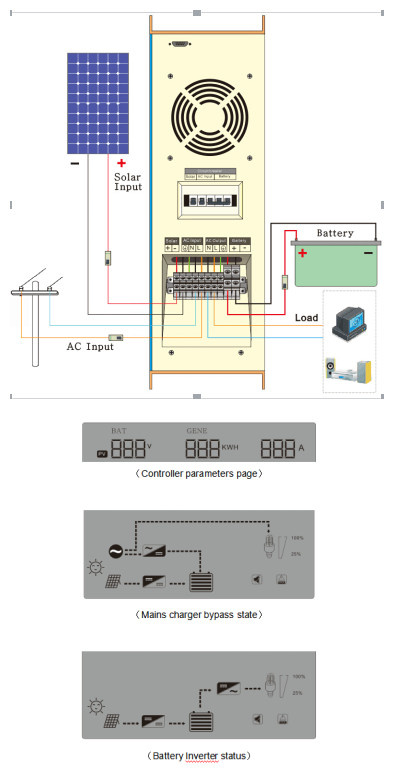

Equipment Connecting Diagram



FAQ:

Q1 :What is the warranty of your products?

 A:Quality warranty for 12 months; parts will be shipped free during warranty period.

Q2:Can you do OEM?

A:Yes,we can offer OEM service.

Q3 :What is your delivery time?

A:Within 5 days after receive advanced payment.

Q4: What minimum order do you require?

A:1 piece

Q5 :Why choose us?

1)All of our products have CE certification,ISO9001:2008,RoHS.
2)We have our own factory,the selling prices is competitive.
3)Prompt delivery and good after-sale services.
4)80% new materials for production and superior quality.
5)professional engineer designers.



Remark:
Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc

All products purchased by our company will be efficient, the best quality and satisfied after-sale service!
