500W Power Inverter for Solar & Telecom

Name: 500W Power Inverter for Solar & Telecom
Brand: all-electronics-online.com
SKU: 727324492
Availability: InStock
Rating: 4.6 (56 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPDA500VA-B

Product Description

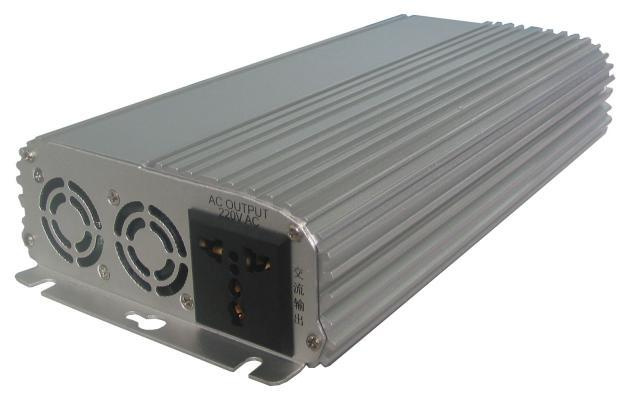

500W power inverter for solar & telecom

GPDA500VA-B
Input:42-60Vdc; Output:220Vac; Capacity:500VA

Input
Item	Min.	Typ.	Max.	Unit	Note
Operating input range	42		60	Vdc
Nominal input voltage		48		Vdc
Nominal input current	11	12	13	A
Max. Iimp			18	A	<150% Nominal input current

Output
Item	Min.	Typ.	Max.	Unit	Note
Output voltage	200	220	230	Vac	For full input range
Output current		2.3		A
Output voltage accuracy			±4	%	Input voltage≥46Vdc
Nominal frequency	49	50	51	Hz
Nominal capacity			500	VA
Nominal power			400	W
Efficiency	86			%	Under nominal operating
Power factor	0.8				Under nominal operating
Dynamic transient recovery time			60	ms
Waveform	Pure sine wave THD <3%( Linear Load)
Waveform	Pure sine wave THD <8%(Nonlinear Load)
Overload	105~125% load retention time ≥60s,126~150% load retention time ≥10s (Input voltage≥48Vdc)
Peak current rate	3:1
Output way	1 way AC output

Protection
Item	Min.	Typ.	Max.	Unit	Note
Input voltage low protection point	36		39	Vdc
Input voltage low recovery	39		42	Vdc	Automatic recovery
Input voltage low recovery return difference	2			Vdc
Input voltage high protection point	63		66	Vdc
Input voltage high recovery	60		63	Vdc	Automatic recovery
Input voltage high recovery return difference	2			Vdc
Input current high protection	System has the function, but not automatic recovery.
Over temperature production	System would cut output when temperature arrive to protection point, return difference is around 10ºC.
Anti-inverse	Auto protect, system no damage.
Short-circuit	When short-circuit within 10mins, system auto recovery and provide output after fault removal, if longer then 10mins, system switch off, system would be restarted manually.
Output over current	When output over current, system cut output, and restart every 1min, when load recovery, system recovery. If long time over load, system switch off, system would be restarted manually.
Alarm (buzzer)	Input abnormal, over load, short-circuit, system fault, buzzer alarm.

About us:

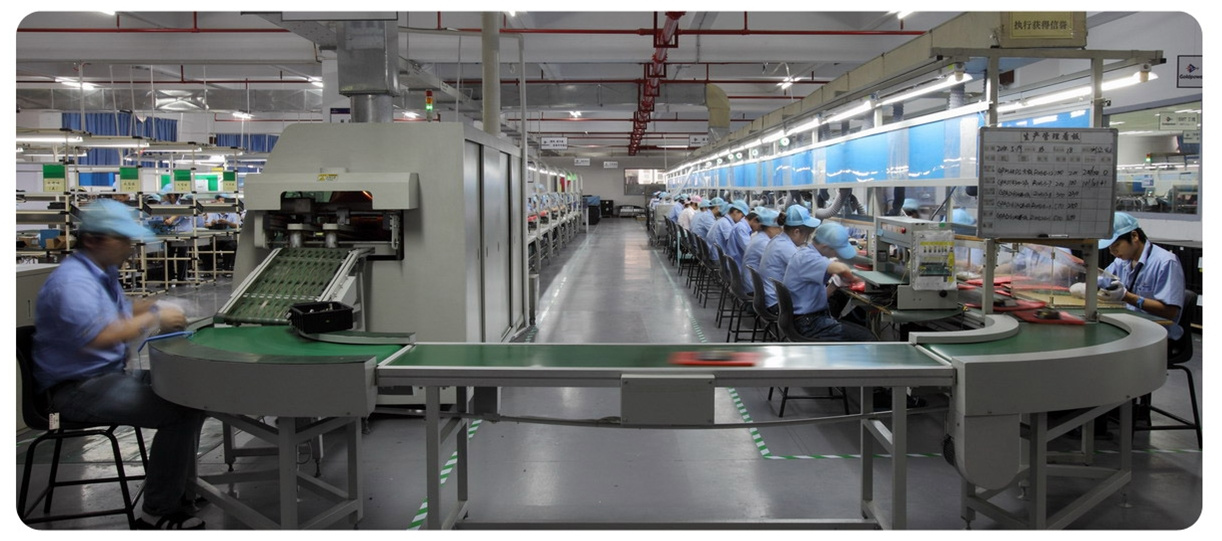

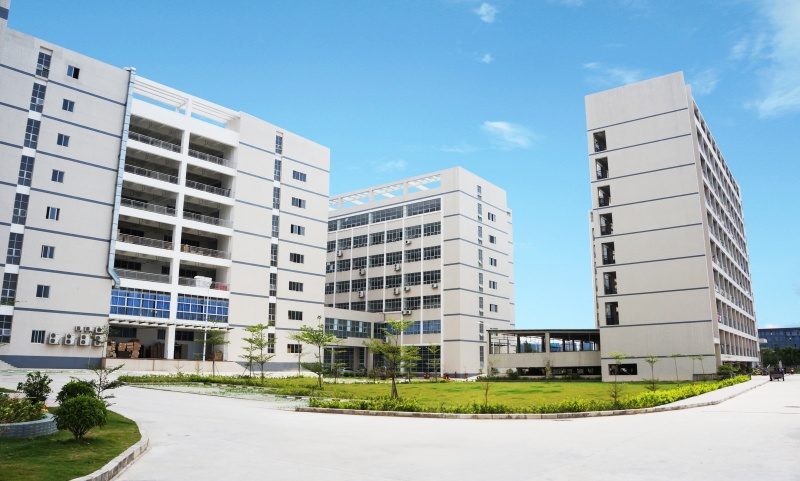

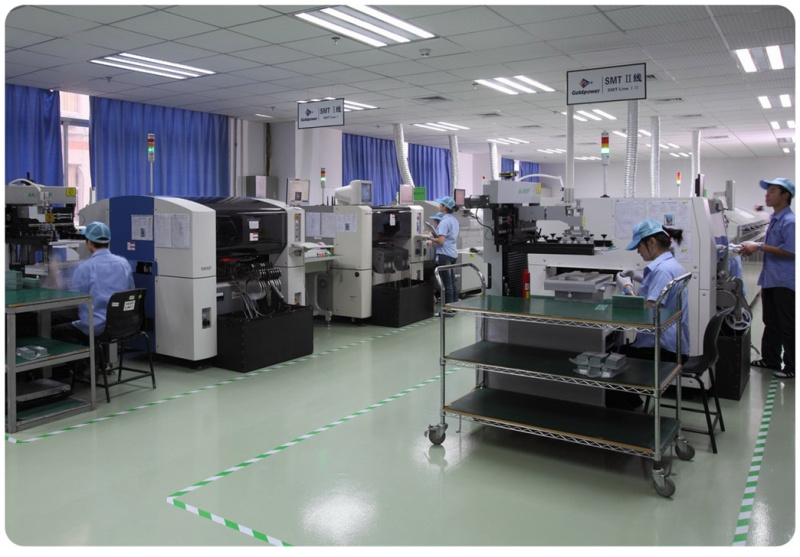

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
