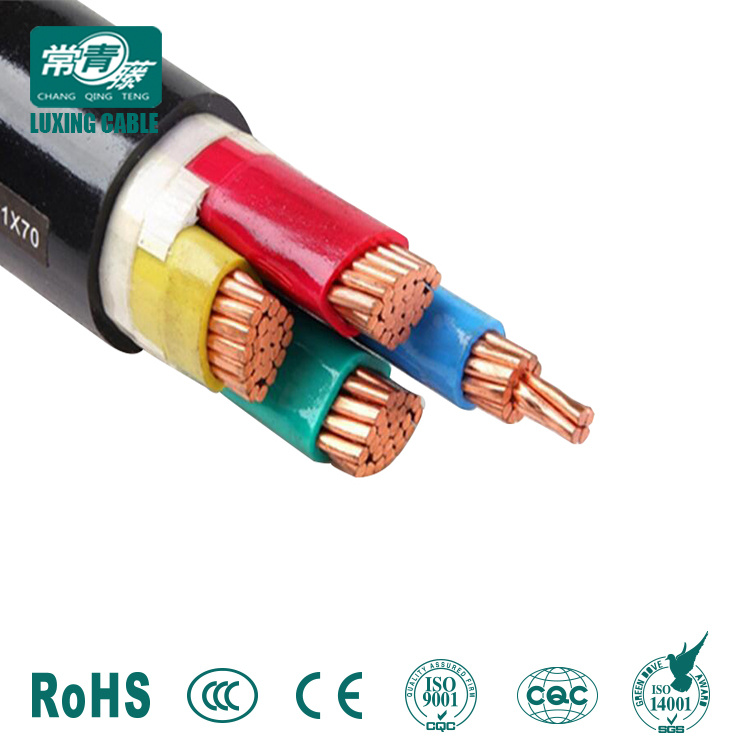

50mm2 Power Cable/50 Sq mm Copper Cable/50mm Cable
| Price: |
US $ 4/Meter |
| Min Order: |
1/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
BV, VV, YJV. |
| Product Name: |
50mm2 Power Cable/50 Sq mm Copper Cable/50mm Cable |
| Number Of Cores: |
Single/2/3/4/5/6/7/8/10/16 Core... |
| Rated Voltage: |
0.6/1kv,1.8/3kv,3.6/6kv,6/6(10)Kv,8.7/10 (15)Kv,1 |
| Cross Section Area/Measure: |
3.5/4/6/10/16/25/35/50/70/95/120/150/185/240/300/4 |
| Standard: |
IEC 60502-1, BS 7870-6, BS 6622, BS 7835, GB 502 |
| Conductor: |
Stranded/Solid/Flexible Copper/Aluminum Conducto |
| Insulation: |
XLPE/PVC/PE/PUR |
| Aplication: |
Electric, House Wire, Building Wire... |
| Shield: |
Copper Wire Screen(Cws), Aluminium Wire Screen (a |
| Armoured: |
Steel Tape Armoured (Sta) or Steel Wire Armoured |
| Application: |
Telecommunication |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Model: |
BV, VV, Yjv... |
| Brand: |
Chang Qing Teng |
Product Description
50mm2 power cable/50 sq mm copper cable/50mm cable
Product Description
50mm2 power cable/50 sq mm copper cable/50mm cable
Construction: |
Conductor | copper (class 1 or 2), monowire (re), stranded (rm). |
Insulation | PVC type DIV 10. |
Inner sheath | PVC type DMV 17 black or grey. |
Armour | steel wire |
Outer sheath | PVC type DMV 17 black or grey. |
Technical data and tests: |
Conductor type | monowire (re) class 1, stranded (rm), class 2. |
Rated voltage Uo/U | 0.6/1 kV. |
Test voltage | 3.5 kV AC or 8.4 kV DC, 5 min. |
Min. bending radius at installation | min. 12 x cable diameter |
Max. tensile strain during installation | max. 50 N/mm² |
Min. cable temperature | installation : -5º C. in use : -30º C. |
Max. permissible operating temperature | 70º C. |
Max. short-circuit temperature | 160º C |
Colour codes | with yellow/green conductor | without y/g conductor |
2 | - | blue - brown |
3 | y/g - blue - brown | brown - black - grey |
4 | y/g - brown - black - grey | blue - brown - black - grey |
5 | y/g - blue - black - brown - grey | blue - brown - black - grey - black |
Standards: |
Cable | IEC 60502-1 |
Conductors | EN 60228 |
Flame retardancy | CYAbY : EN 50265-2-1 (IEC 60332-1) - burning on a single vertical cable. |
| | CYAbY-F : EN 50266-2-4 (IEC 60332-3-24 Cat. C) - burning on a bundle of cables. |
Applications: |
This cable is used for the transportation of energy to power stations. It must be protected against solar radiation, corrosive agents and chemical solvents. This cable can be installed underground or in air, inside or outside and is highly resistant to mechanical shocks. This cable is not resistant to fire but delays the propagation of flames. |
Contact:
1) About Luxing Cable Factory:
-Shandong New Luxing Cable Co., Ltd established in the year of 1999.
-The headquarter is located in Jinan City, the capital of Shandong province, China.
-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.
-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.
-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.
2)Why Choose Luxing Cable Factory?
-Luxing cable, the designated supplier of China's national grid construction.
-We provid high-quality cables for our clients for more than 18 years.
-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.
-Serve you any time.
3)The Product of Luxing Cable Factory
-300/500V 450/750V electrical wire
-600/1000V PVC insulated cable
-600/1000V XLPE insulated cable
-1.8/3KV to 26/35KV power cable
-Armored underground cable
-Control cable and instrumentation cables
-ABC cable
-AAC conductor
-AAAC conductor
-ACSR conductor
-OPGW
-Rubber cable
4)Product application
-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.
-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.
5)Production Market
-Supply power cables & electrical wire to
South America(Brazil...),
East Asia(Korea...),
Africa(Uganda, South Africa, Zimbabwe...),
Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),
Europe(Czech Republic...) to global market.
-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.
6)Our service
-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.
-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.
-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.
-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
