50W 12V/24V LED AC/DC Switching Mode Power Supply, LED, Waterproof,

Name: 50W 12V/24V LED AC/DC Switching Mode Power Supply, LED, Waterproof,
Brand: all-electronics-online.com
SKU: 840162385
Availability: InStock
Rating: 4.8 (148 reviews)

Price:	US $ 10-11/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LVP-50
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

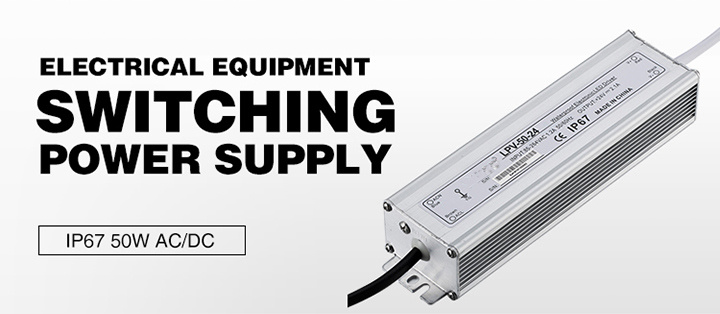

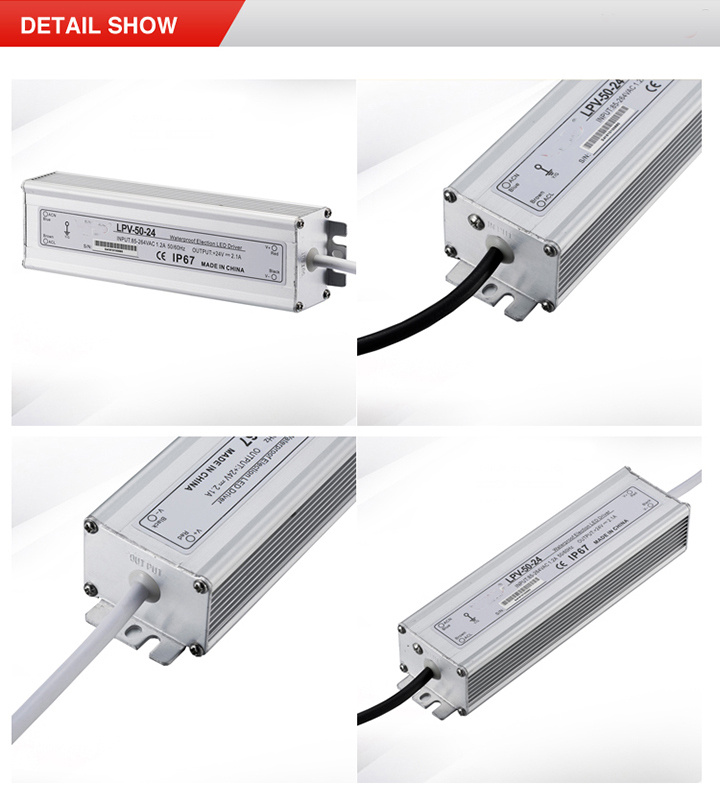

50W waterproof Switching Power Supply

Features:

1. DC Output 5v 12v 24v

2. AC input range selectable by switch

3. Protections: Short circuit / Overload / Over voltage / Over temperature

4. 100% full load burn-in test

5. Low cost, high reliability

6. 12 months warranty

Specifications:

50W 12V/24V LED AC/DC Switching Mode Power Supply

Model	LPV-50-12	LPV-50-24
DC output voltage	12V	24V
Output voltage error	±1%	±1%
Rated output current	4.2A	2.1A
Output current rage	0-4.2A	0-2.1A
Wave and noise	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%
Load stability	±0.5%	±0.5%
DC output power	51W	50W
Efficiency	81%	83%
AC input voltage range	170-264VAC
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 13A/115V 26A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%150%TypeTOLDBACK Reset: auto recovery
Temperature coefficient	±0.03%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval1.5KVAC,Input and enclosure1.5KVAC,
	Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and
	enclosure0500VAC/100M Ohms
Working temperature and humidity	-10+60,20%90%RH
Store temperature and humidity	-20+85,10%95RH
Overall dimension	190X48X38 mm
Weight	0.88Kgs
Safety standards	ROSH CE IP67 acceptable
