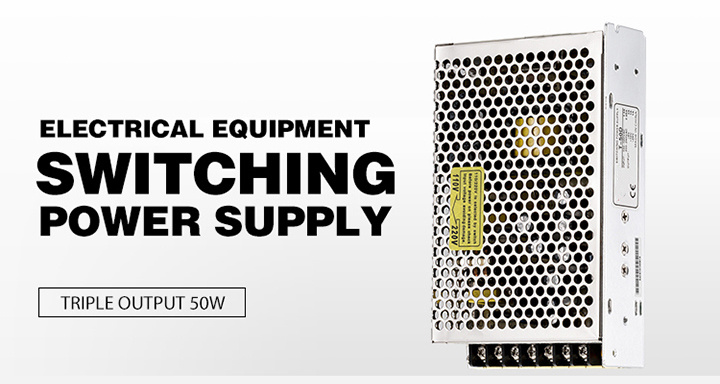

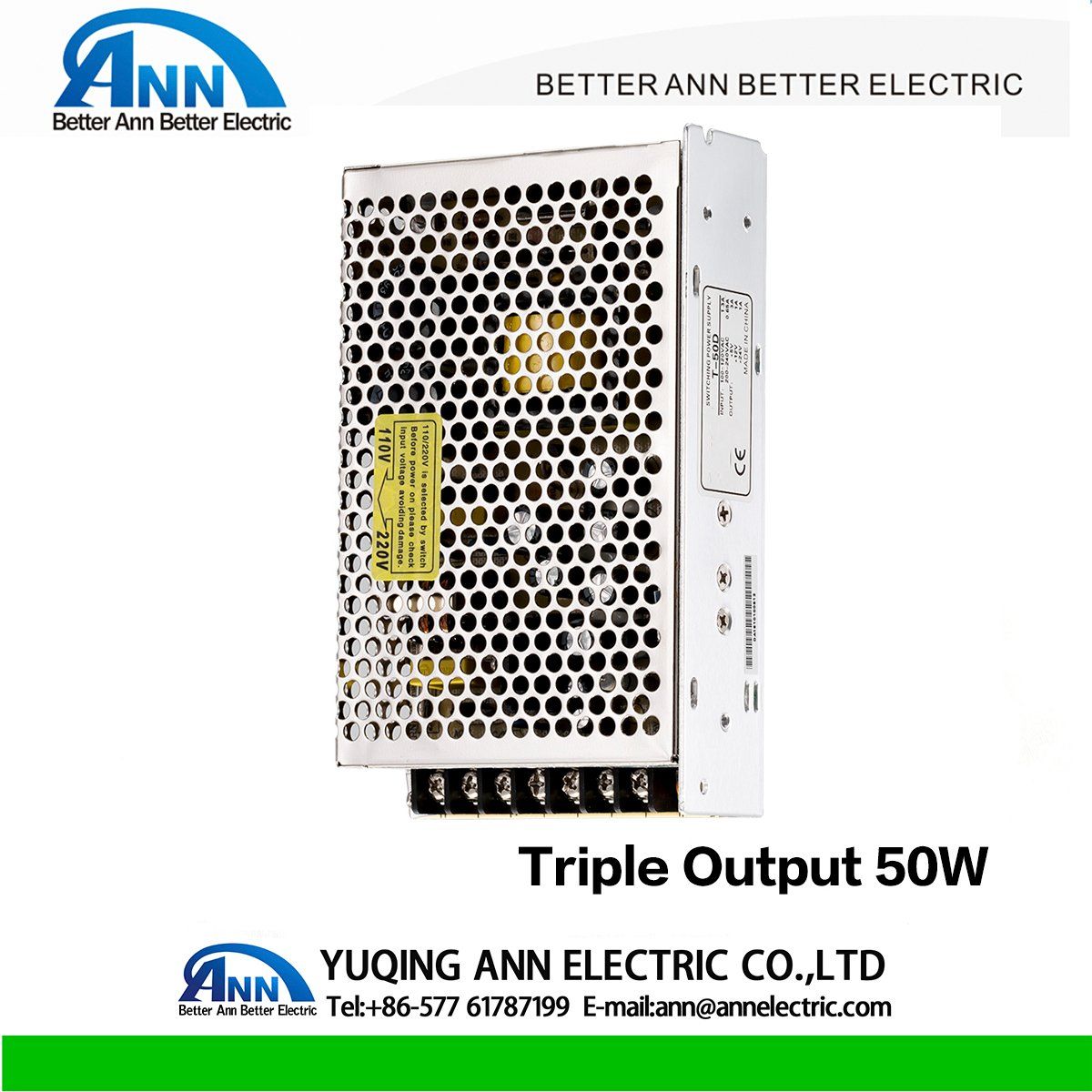

50W Triple Output Power Supply AC/DC SMPS, 5V 12 24V 48V, LED Switching Power Supply

Name: 50W Triple Output Power Supply AC/DC SMPS, 5V 12 24V 48V, LED Switching Power Supply
Brand: all-electronics-online.com
SKU: 839683695
Availability: InStock
Rating: 4.9 (46 reviews)

Price:	US $ 10.5-12/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	T-50
Output Type:	Single
Warranty:	1 Year
Output Power:	1 - 50W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Brand:	Ann

Product Description

50W Switching Power Supply

Features:

1. AC input 90~132VAC / 180~264VAC

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 12 months warranty

Specifications:

50w triple output power supply ac/dc smps

Model

T-50A

T-50B

T-50C

T-50D

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

CH1

CH2

CH3

DC output voltage

12V

-5V

12V

-12V

15V

-15V

12V

24V

Output voltage range(Note:2)

±2%

±5%

±2%

±5%

±2%

±5%

±2%

±6%

Rated output current

Output current range

0.6-7A

0.2-1A

0.6-5A

0.2-1A

0.6-1A

0.2-1A

0.6-4A

0.2-1.2A

Wave and noise(Note:3)

100mV

50mV

120mV

Inlet stability(Note:4)

±0.5%

±1%

Load stability(Note:5)

±1%

±4%

±1%

±4%

±1%

±4%

±1%

±5%

DC output power

52W

49W

50W

51W

Efficiency

66%

69%

71%

72%

Adjustable range for DC voltage

CH1; +10, -5%

Input current

1.6A/115V 0.8A/230V

AC inrush current

Cold-start current 20A/115V 40A/230V

Leakage current

<0.5mA/240VAC

Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°c(0~50°c)ON+5V

Setup, rise , hold up time

200ms, 50ms, 16ms

Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

Withstand voltage

Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°c~+60°c(Refer to output derating curve), 20%~90%RH

Overall dimension

159×98×38mm

Weight

0.55Kgs

Safety standards

Meet UL 1012 requirement (Not apply for the mark)
