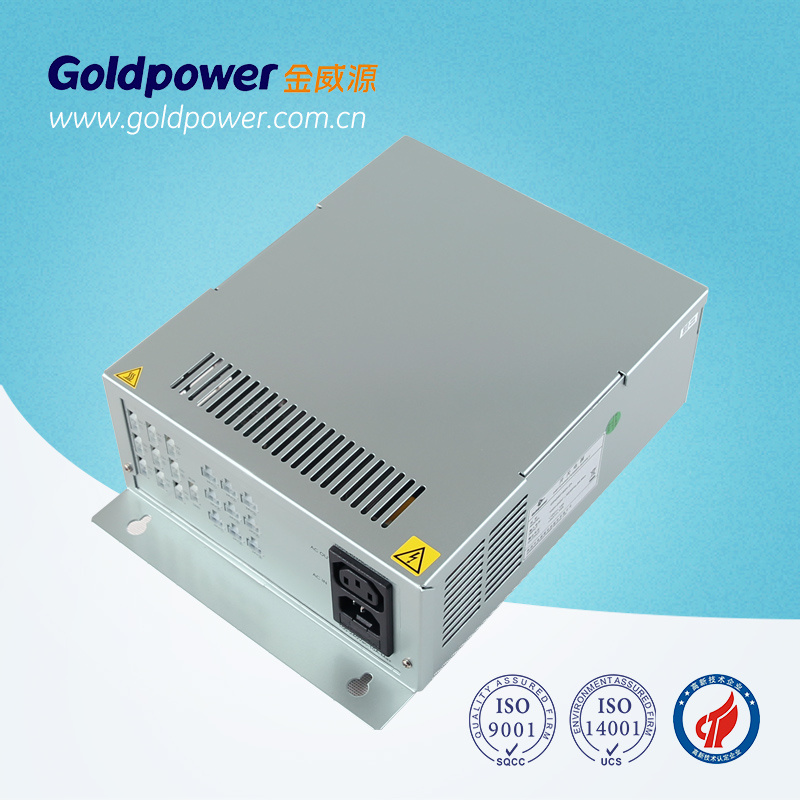

520W AC/DC Power Supply for Self-Service Kiosk with CCC, Ce, UL

Name: 520W AC/DC Power Supply for Self-Service Kiosk with CCC, Ce, UL
Brand: all-electronics-online.com
SKU: 733257162
Availability: InStock
Rating: 4.9 (150 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD521M24-2A
Output Efficiency:	88%
Power Factor:	0.95
Output Voltage Range:	24V 12V
Output Current Range:	0.3~15 a
Weight:	<3.5kg
Output Type:	Multiple
Warranty:	2 Years
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	520W
Input Voltage:	90~280VAC
Brand:	Goldpower

Product Description

520W AC/DC power supply for self-service Kiosk with CCC,CE,UL is a high efficiency power supply widely used for Veding Machine, Payment Terminal, Restaurant Ordering Machine, Self Service Kiosk, Fast Food Ordering Kiosk,etc.

Feature:

1. Modular design,save the investment costs,
2. High Efficiency up to 88%.
3. MTBF≥90,000 H
4. Perfect protective function:Input over voltage,input under voltage,output over voltage,output current limit,short circuit protection,over temperature protection.
5. Power factor more than 0.95.
6. Annual repair rate: ≤1%

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~280	Vac
Input frequency	48~65	Hz
Power factor	0.95
Output
Output voltage range	+12,+24	Vdc
Output current range	0.3~15	A
Output power	default: 520	W
Output efficiency	88	%
Ambient
Working temperature	-30~+55	ºC
Storage temperature	-40~+80	ºC
Relative hunidity	10~95	%
Altitude	0~5000	m
Cooling	Fan cooling
Mechanical
Dimension(LWH)	293.420090 mm
Weight(KG)	<3.5kg

About us

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
