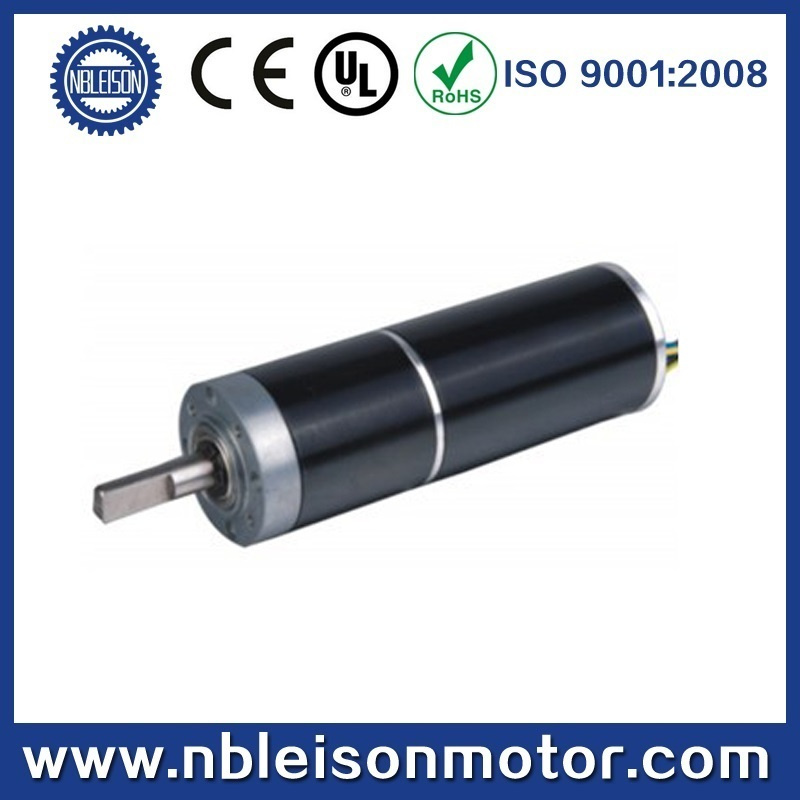

52mm 24V 100W BLDC Planetary Gear Motor

Name: 52mm 24V 100W BLDC Planetary Gear Motor
Brand: all-electronics-online.com
SKU: 708753832
Availability: InStock
Rating: 4.6 (137 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	52BSSE-PN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Voltge:	24V
Diameter:	52mm
Ratio:	1:3.65 to 1:127.7
Speed:	30 to 1000rpm
Application:	Universal
Operating Speed:	Low Speed
Structure And Working Principle:	Brushless
Brand:	Leison Motor

Product Description

dc gearbox brushless motor

Motor Specification:

Motor Model	52BSSE243030	52BSSE246030	52BSSE249030
Rated Voltage(VDC)	24	24	24
Rated Speed(Rpm)	3000	3000	3000
Rated Torque(N.m)	0.1	0.2	0.3
Rated Power(W)	31	63	94
L1 Length(mm)	64	84	104

*Note: We can manufacture products according to customer's requirements.

Gearbox Specificaiton:

Reduction Ratio	3.65	5.36	6.55	8.63	13.5	58.2	102.8	127.7
Reducer Series	1	1	1	1	2	2	3	3
L2 Length(mm)	38.6	38.6	38.6	38.6	54.2	54.2	69.8	69.8

*Note: We can manufacture products according to customer's requirements.

Ningbo Leison Motor Co. Ltd is a manufacturer and exporter of virious of motors,

Our Product range are:

DC Brush motor: 6-130mm diameter, 0.01-1500W output power.

DC Spur Gear Motor: 12-110mm diameter, 0.1-300W output power

DC Planeary Gear Motor: 10-82mm diameter, 0.1-1000W output power

Brushless DC Motor: 28-110mm, 5-1000W output power

Stepper Motor: NEMA 08 to NEMA 43, Can with gearox and lead screw

AC Gear Motor: 49 to 100mm diameter, 6-140 output power

Compare with other competitors, Our advantages are:

1) High Quality Guarantee: 10 years experiences in this field makes us have mature manufacturing process, Most of motors have CE, RoHS marks.

2) Competitive Price: We have a very high competitive ability of the list prices based on low cost labour force in China.

3) Good Service: LEISON MOTOR sales are professional and with good attitude, We will response with our customer within 24 hours(Holiday excepted), So you don' T need way about can' T not find the person when have agent things.

4) On Time Delivery: The delay delivery always are a headache problem for most of buyers, Our technical team and sales team make us can promise about 95% delivery on time.

5) Customized requirement: Beside normal products, We also design the motors according to customer requirement. Meanwhlile our MOQ is very low, (Even 1PC for some motors).

Still need more reasons? Now begin business with LEISON MOTOR, You will find we are a reliable and trustworthy in China.
