54mm DC Brush Motor with 24V (54ABS Series)

Name: 54mm DC Brush Motor with 24V (54ABS Series)
Brand: all-electronics-online.com
SKU: 730887622
Availability: InStock
Rating: 4.4 (131 reviews)

Price:	US $ 18.6/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	54ABS Series
Ingress Protection:	32 or More Higher
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush
Certification:	Ce, RoHS
Brand:	Accumos

Product Description

54ABS Series DC Brush Motor
Ball bearing
Ceramic magnet
11 slot of armature
Copper-Graphnite Brushes
Encoder& Planetery gearbox available

Mechanical

Specifications

Specification	54ABS100	54ABS300	54ABS600	54ABS700
Voltage(v)	24	24	24	24
No Load Speed(rpm)	4000	4000	4000	4000
No Load Current(A)	0.32	0.34	0.3	0.15
Nominal Torque(Nm)	0.07	0.15	0.26	0.36
Nominal Speed(rpm)	3200	3300	3300	3300
Nominal Power(w)	23.5	51.8	90	124.4
Nominal Current(A)	1.65	3.2	5.3	7.2
Peak Torque(Nm)	0.35	0.76	1.4	1.8
Peak Current(A)	7	14.9	27.3	35.6
Rotor Inertia(Kg.mm²)	115	215	370	480
Ke(V/krpm)	5.77	5.77	5.77	5.77
Resistance(ohms)	3.45	1.65	0.88	0.68
Insulation Class	B	B	B	B
Weight(Kg)	0.6	0.9	1.3	1.6
L(mm)	75	94	126	145

Characteristic Diagram

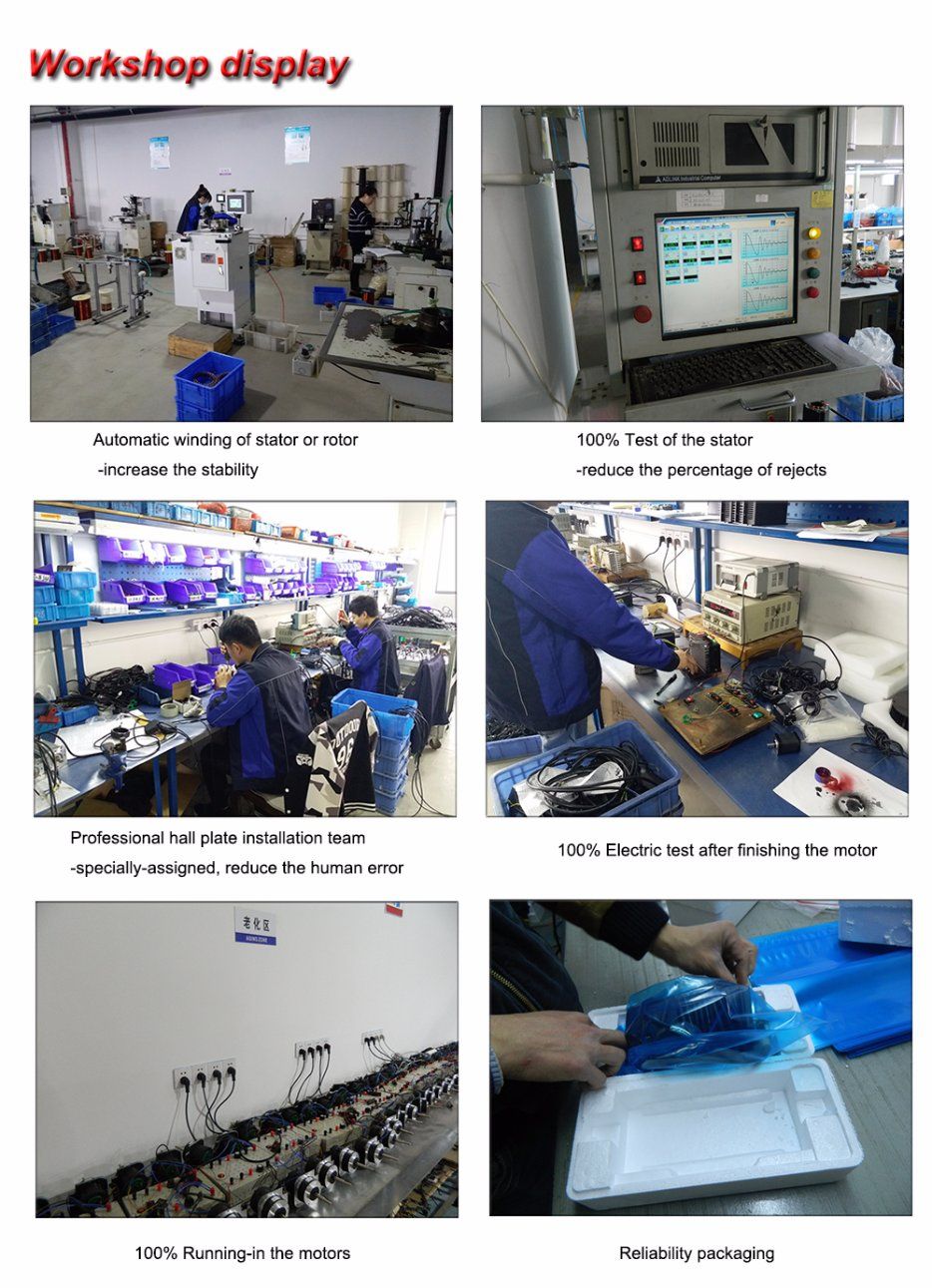

Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
