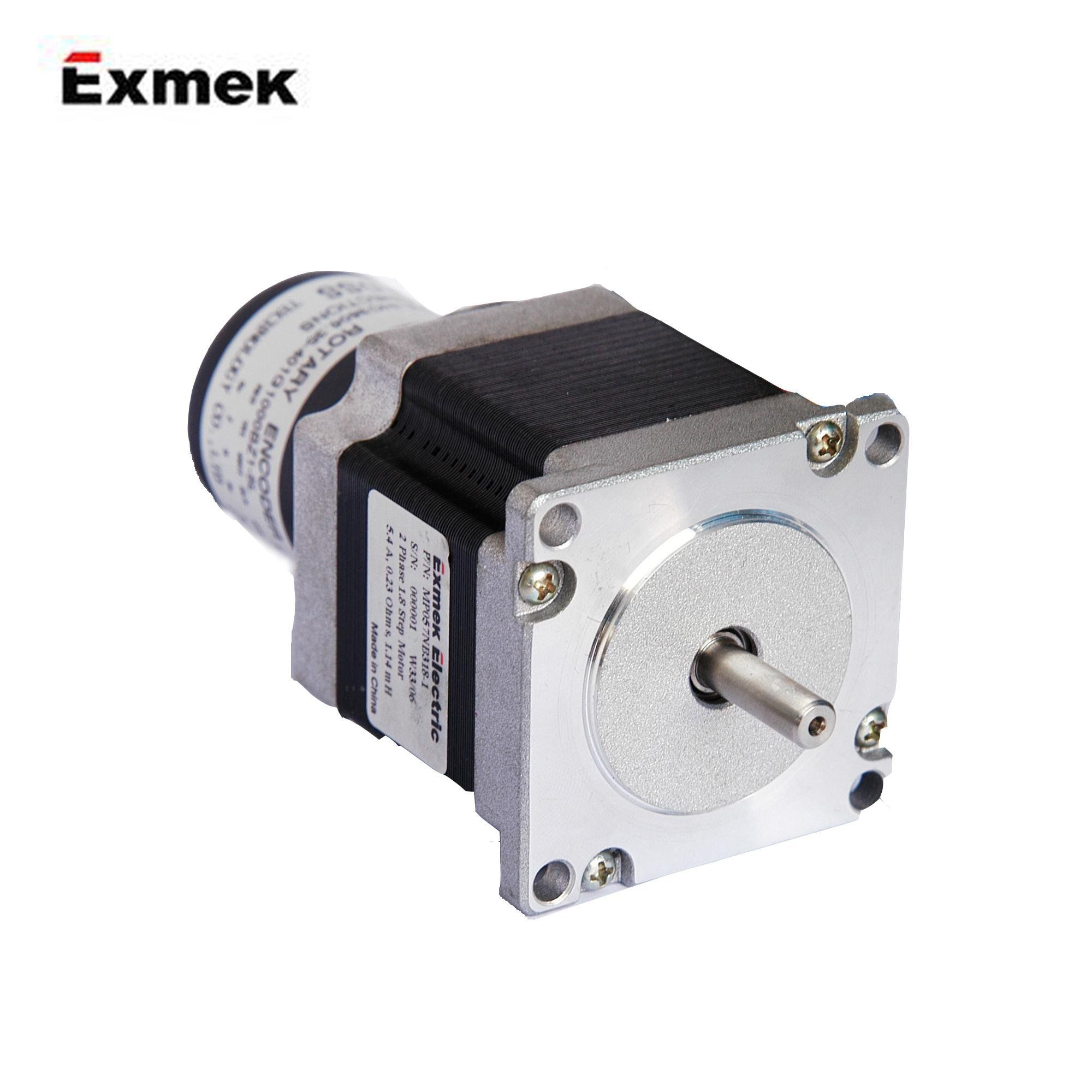

57mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP057NB522-7)

Name: 57mm 1.8 Degree Enhanced Hybrid Stepper Motor (MP057NB522-7)
Brand: all-electronics-online.com
SKU: 832654565
Availability: InStock
Rating: 4.7 (75 reviews)

Price:	US $ 35.6/Piece
Min Order:	100/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MP057NB522-7
Excitation Mode:	HB-Hybrid

Product Description

General information

Step angle accuracy: 1.8°±5%
Temperature rise: 80°C max
Ambient temperature: -20°C~+50°C
Insulation resistance: 100M(OHMS). min., At 500V
Dielectric strength: 500V AC, 1S, 2mA
Insulation class: B

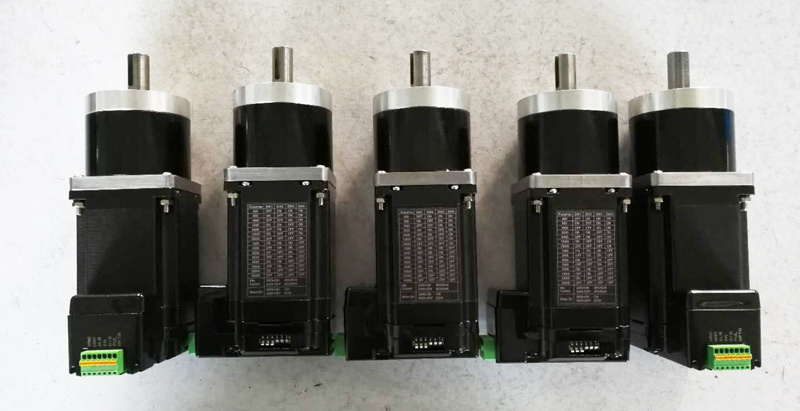

MP057NB Series are integrated gearbox and driver available. If you want any different step motor, please do not hesitate to send us an inquiry.

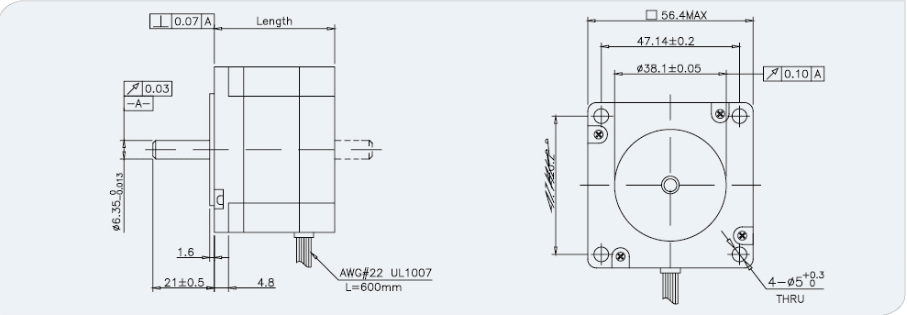

Mechanical

Specifications

Part number	MP057NB522
Phase current	6A
Phase-resistance	0.5 ohms
Phase inductance	2mH
Holding torque	280n/cm
Detent torque	12N/cm
Number of wires	4
Rotor inertia	800g.cm²
Length	115mm
Weight	1600g

Special design available.

We are open for general discussion and questions. Contact us now!

Exmek Electric

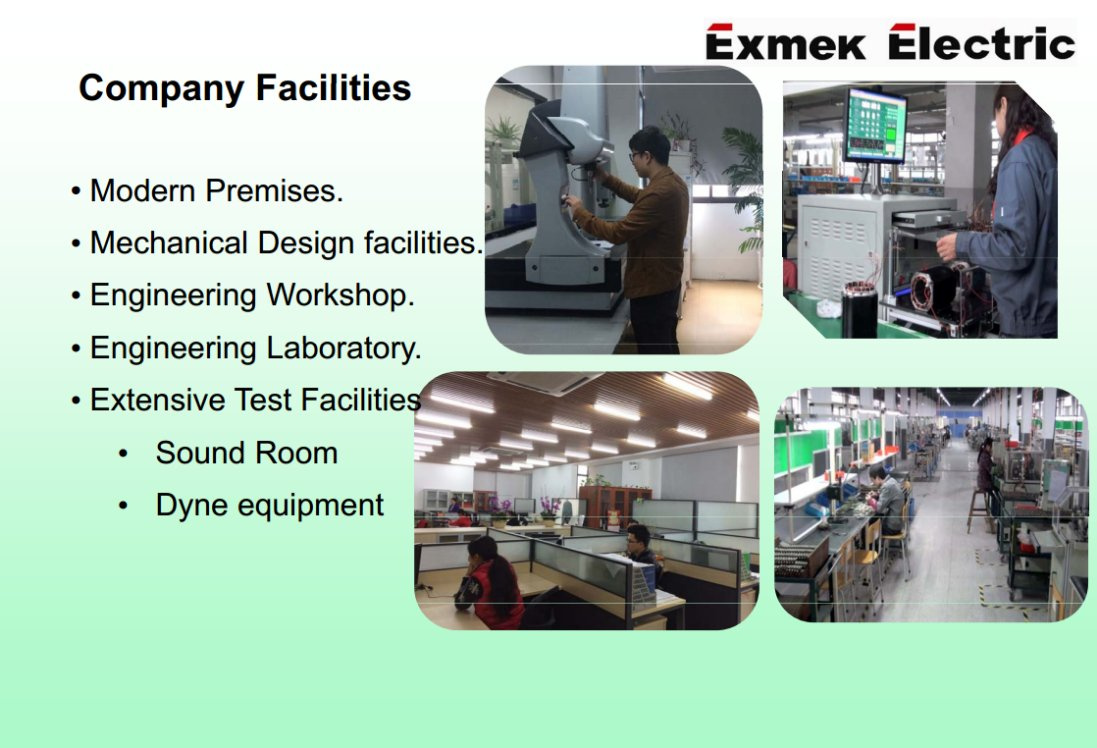

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
