57mm 0.9 Degree High Torque Stepper Motor (57APG Series)

57mm 0.9 Degree High Torque Stepper Motor (57APG Series)
Price: Negotiable/Piece
Min Order: 50/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: 57APG Series
Step Angle: 0.9 Degree
Step Angle Accuracy: ±5%
Resistence Accuracy: ±10%
Inductance Accuracy: ±20%
Ambient Temperature: -20 Until 50deg. C
Dielectric Strength: 500VAC with 1minute
Number Of Stator: Four-Phase
Excitation Mode: HB-Hybrid
Type: Stepper Motor
Certification: Ce, RoHS
Brand: Accumos

Product Description

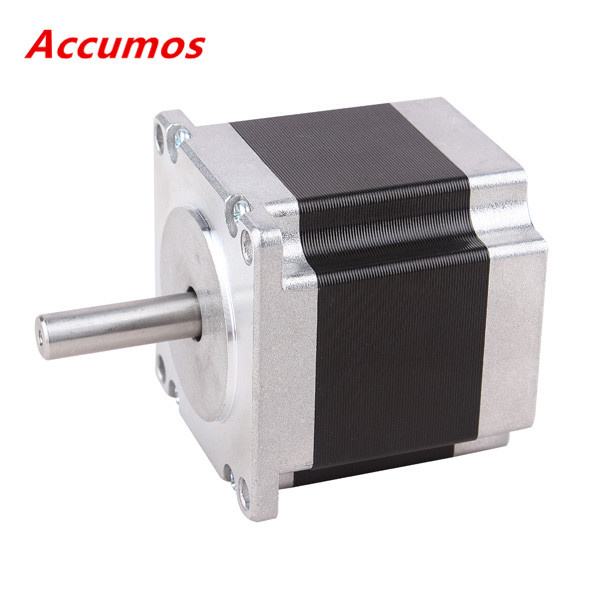

57APG Series Stepper Motor
Step Angle Accuracy:0.9°±5%
Temperature Rise: 80°C Max
Ambient Temperature: -20°C~+50°C
Insulation Resistance: 100MΩ Min.,At 500V
Dielectric Strength: 500VAC ,1S,2mA
Insulation Class: B

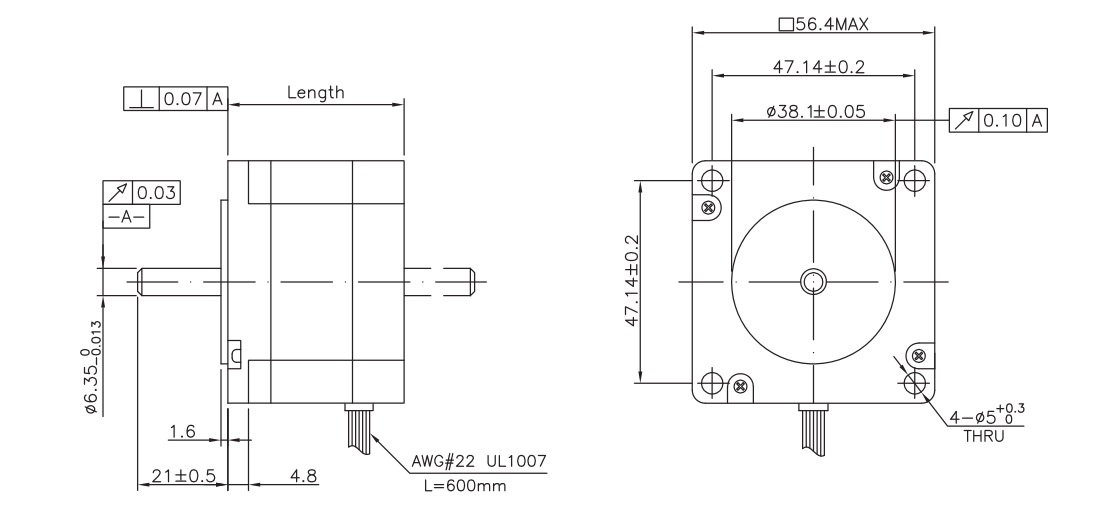

Mechanical

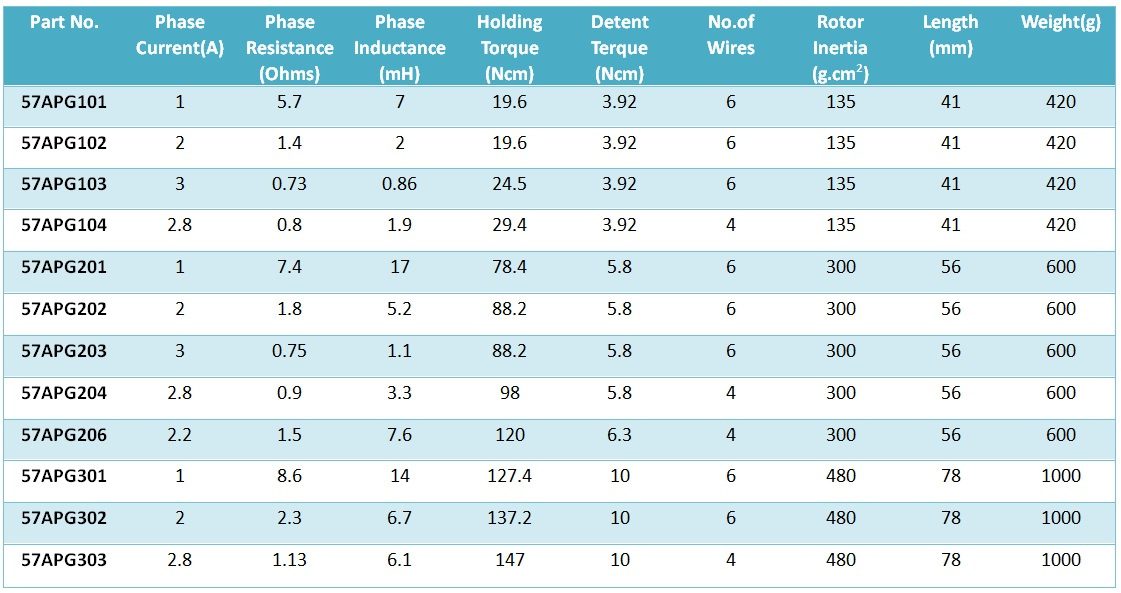

Specifications

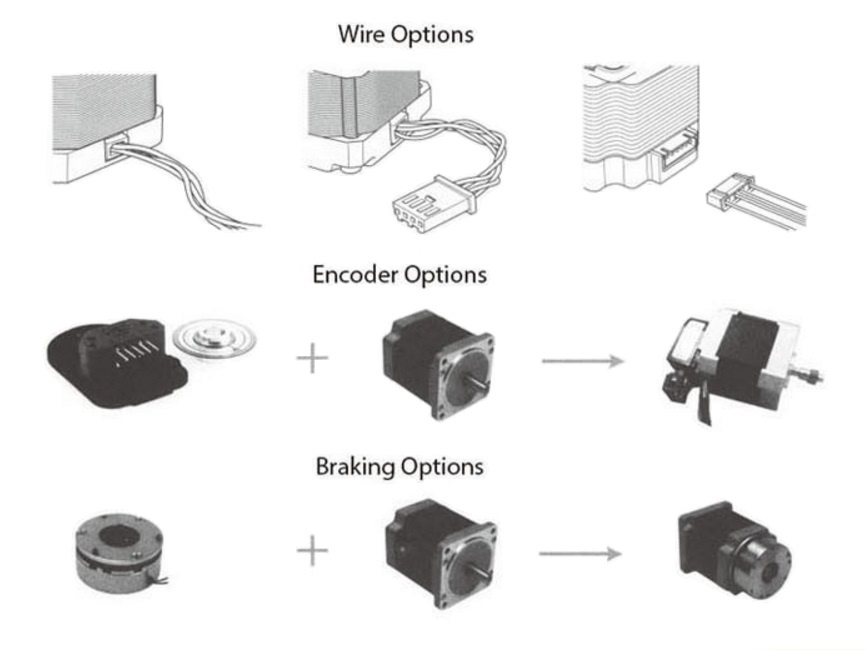

More Options





Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
