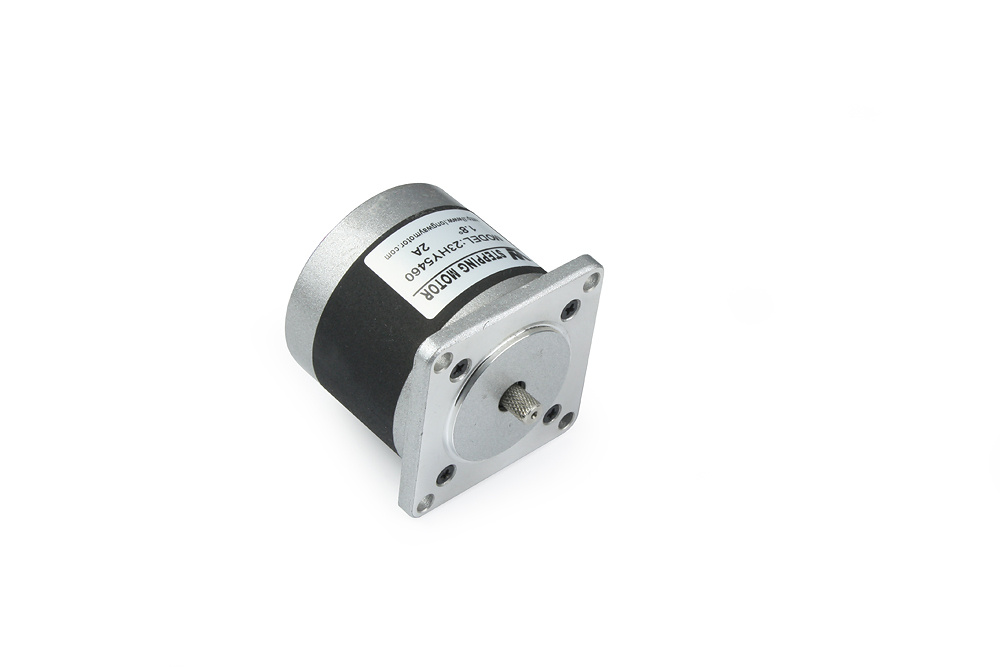

57mm Hybrid Stepper Motor for Textile Machine

Name: 57mm Hybrid Stepper Motor for Textile Machine
Brand: all-electronics-online.com
SKU: 774114535
Availability: InStock
Rating: 4.8 (99 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	57BYG
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	15~20 Days
Package:	Foam Box Inside and Carton Box Outside
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric
Certification:	CE, RoHS
Brand:	Longway Motor

Product Description

1)Genaral Specification:
Step Angle ------------------- 1.8° ± 5%
Temperature Rise ------------- 80° Max
Ambient Temperature -------- -20° ~+50°
Insulation Resistance--------- 100 MΩ Min., 500VDC
Dielectric Strength: ------------ 500VAC for 1minute

2)Applications:
Use for robots stepper motor, electronic automatic equipment stepping motor, medical instrument stepping motor, advertisementing instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor. CNC router stepper motor.

3)Specifications:

model	step angle	motor length	rated voltage	rated current	phase resistance	phase inductance	holding torque	lead wire	motor weight
57BYG001	1.8°	20mm	11.25V	0.45A	25Ω	9mh	500g.cm	6	0.1kg
57BYG003	1.8°	20mm	6.57V	0.73A	9Ω	4mh	600g.cm	4	0.1kg
57BYG006	1.8°	20mm	10.8V	0.4A	27Ω	17mh	650g.cm	4	0.1kg
57BYG202	1.8°	26mm	2.4V	1.5A	1.6Ω	1.4mh	900g.cm	4	0.13kg
57BYG220	1.8°	26mm	6.84V	0.76A	9Ω	4.8mh	800g.cm	6	0.13kg
57BYG241	1.8°	26mm	12V	0.25A	48Ω	17mh	380g.cm	6	0.13kg
57BYG402	1.8°	26mm	3.2V	0.75A	4.3Ω	4mh	700g.cm	4	0.14kg
57BYG410	1.8°	28mm	10.4V	0.4A	26Ω	10mh	1000g.cm	6	0.14kg
57BYG424	1.8°	28mm	7V	0.54A	13Ω	9.5mh	800g.cm	4	0.14kg

4)We can supply you stepping motors with gearbox,driver...and can adjust motor specifications and shaft size according to your special requirements.

5)Our motor is good in quality and reasonbel in price.Welcome your enquiry!
