5m 10g Om4 50/125 Multimode MPO/MTP Optical Fiber Trunk Cable

Name: 5m 10g Om4 50/125 Multimode MPO/MTP Optical Fiber Trunk Cable
Brand: all-electronics-online.com
SKU: 790518305
Availability: InStock
Rating: 4.6 (143 reviews)

Price:	US $ 25-70/Piece
Min Order:	50/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OM4-MTP
Od:	3.0mm
Application:	Communication
Type:	Multi-mode Fiber
Certification:	CE
Connection Structure:	MPO
Core:	12 Fibers
Sheath Material:	LSZH

Product Description

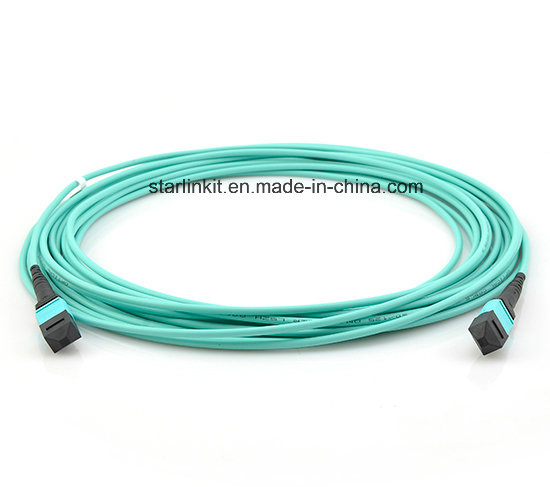

5M MTP 10G OM4 50/125 Multimode Fiber Optic Trunk Cable, 12 Fiber, Polarity B, Elite Female-Female, LSZH-Aqua, Bunch, 40GBASE-SR4 Interconnect Solution

Key up to Key up, 0.35dB IL, 3.0mm Cable Jacket, designed for 40GBASE-SR4 and high-density data center.

12 Strand MTP (Female) to MTP (Female) Interconnect Trunk Cable for 40G High Density Network Data Center

Connector	MTP to MTP	Jacket OD	3.0 mm
Fiber Category	50/125μm MM (OM4)	Gender	Female to Female
Fiber Count	12	Test Wavelength	850nm
Insertion Loss	≤0.35dB	Return Loss	≥50dB
Polarity	Type B (Full-Flipped)	Durability	≥200 times
Operating temperature	-40 ~ 80°C	Fiber Grade	G651
Flame Rating	LSZH	Outer Jacket Color	Aqua

Features and Benefits

Eliminate termination errors, Min installation timeEach cable is 100% tested for low insertion loss and back reflectionOptimized performance - Elite MTP and discrete premium connectorSupport 40GBASE-SR4 in applicable parallel optics networksCompliant to IEC-61754-7 and TIA-604-5(FOCIS-5) standard

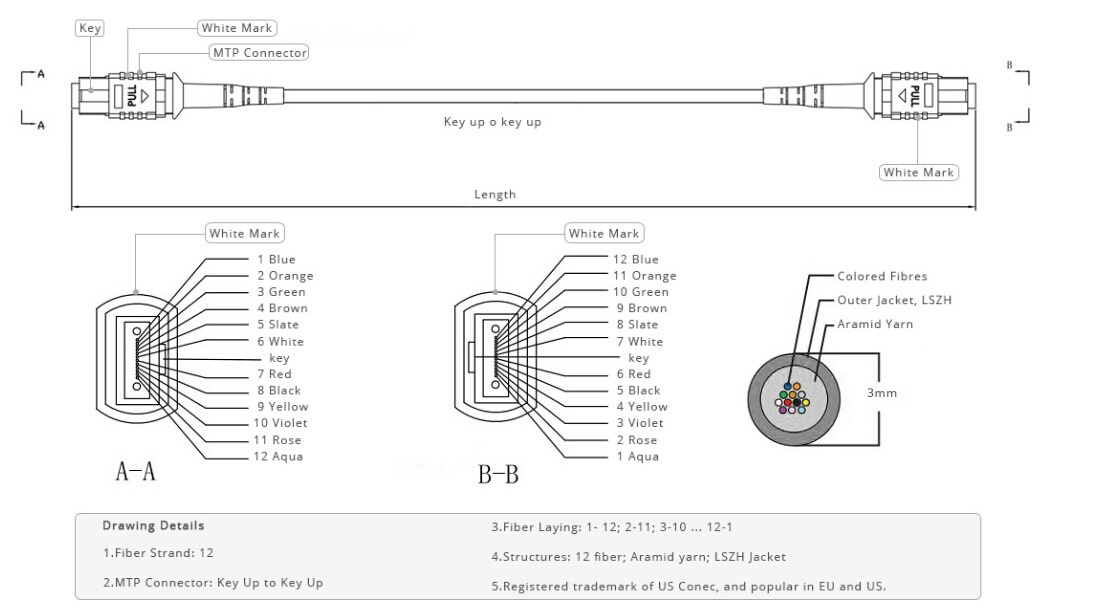

Cable Polarity - Type B Crossover(Full-Flipped)

How to Choose The Right Fiber Optic Cable Type?

PS: Here're the differences between OM4 and OM3 fibers:

1. OM4 was developed specifically for VCSEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.

Designation	Fiber Dia.(μm)	Type	10Gbps Ethernet 10GBASE SR/LR	40Gbps Ethernet 40GBASE SR4/PLRL4	100Gbps Ethernet 100GBASE SR10/IR4
OM1	62.5/125	Multimode	33 Meters (SR)	Not supported	Not supported
OM2	50/125	Multimode	82 Meters (SR)	Not supported	Not supported
OM3 (Laser Optimized)	50/125	Multimode	300 Meters (SR)	100 Meters (SR4)	100 Meters (SR10)
OM4 (Laser Optimized)	50/125	Multimode	400 Meters (SR)	150 Meters (SR4)	150 Meters (SR10)
Singlemode	9/125	Singlemode	10KM at 1310nm (LR)	1KM (PLRL4)	2KM (IR4 PSM)

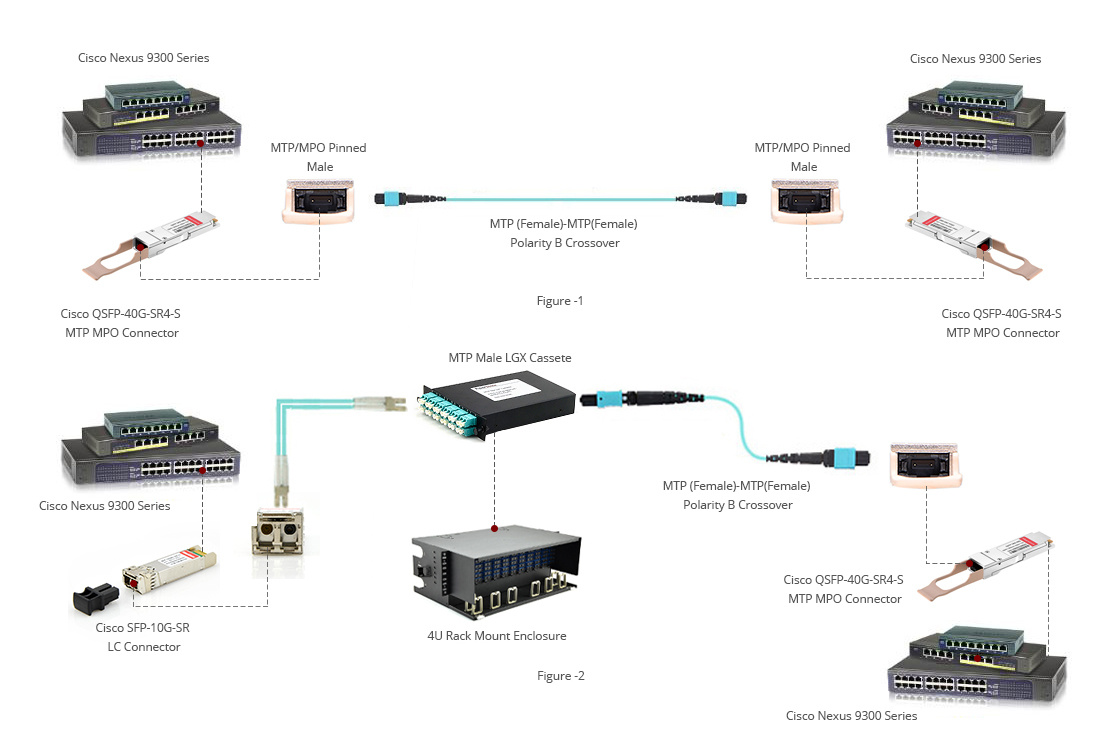

Type B MTP-Female Cabling for 40GBASE SR4 QSFP+ and Multi-Fiber Migration Networks

Star Link IT Co., Ltd was founded in 2007, one of the leading suppliers of LAN Cables, Fiber Optic Cables, HDMI Cables, USB Cables, Patch Cords & CCTV Cables in China. Over the years, we have been serving customers from over 15 countries & regions, helping them lower their buying costs for copper data cabling as well as fiber optic products.

Star Link IT Co., Ltd leads the Cables & Wires manufacturing services industry in technical expertise and operational experience. Through strategic movement and an established long-term customer base, we have deep insight into the needs of the market, the technical convergence requirements and the competitive challenges that drive the need for continuous reevaluations of the supply chain. These insights drive our strategy of providing end-to-end solutions for networking and optical products.

Over the years, we have brought in advanced product facilities and built up a well-trained, qualified team, which continuously guarantees state-of-the-art quality and first-class service. We are young but dynamic, creative, flexible and continually striving to provide our customers with easy solutions. We pride ourself to partner with a certain number of the cross-regional top 500 companies.

Our goal is to be your very first source for data cabling.
