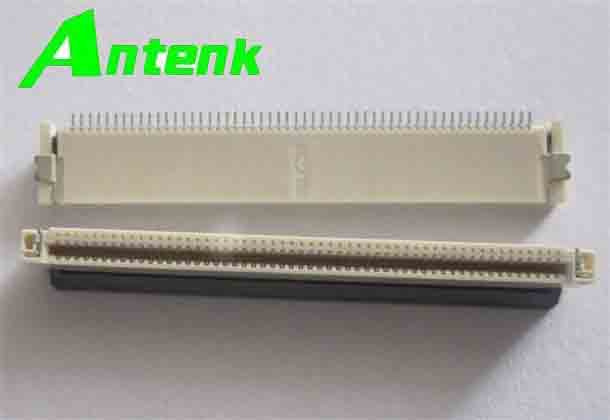

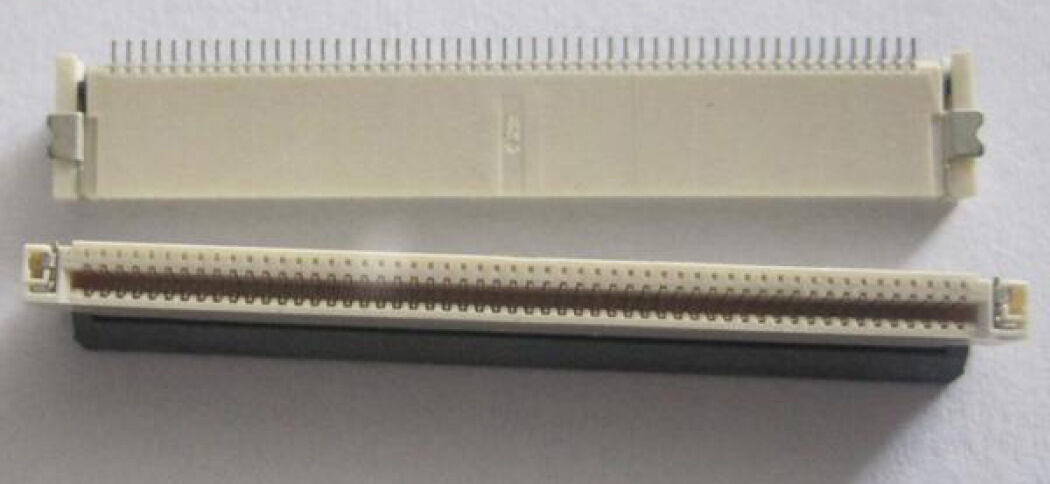

0.5mm FPC Connector with Back Flip Type, H=2.0mm

Name: 0.5mm FPC Connector with Back Flip Type, H=2.0mm
Brand: all-electronics-online.com
SKU: 736759515
Availability: InStock
Rating: 4.3 (54 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	0.5mm FPC Connector Series 001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Polyester Film
Structure:	Double-Sided FPC
Application:	Mobile Phone
Combination Mode:	Adhesive Flexible Plate
Conductive Adhesive:	Anisotropic Conductive Adhesive

Product Description

0.5mm FPC H=0.5mm, Back Flip Type Connectors

Current Rating: 0.5A 50V AC /DC
Dielectric Withstanding Voltage: 150V AC for one minute
Contact Resistance: <50mΩ
Insulation Resistance: >500MΩ
Opperating Temperature: -40°C ~ 105°C

Material:

Body: High termperature plastic UL94V-0 Color Nature
Cover: High termperature plastic UL 94V-0 Color Black
Contact: Phosphor Bronze
Fixed Tab: Brass with tin Plated

Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.
