0.5mm Thick PCB Circuit 2layer RF-35A2 with Green Soldermask
| Price: |
US $ 1.23/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-104-V1.04 |
| Final Foil External: |
1.5oz |
| Board Thickness: |
0.65mm |
| Surface Finish: |
HASL Lead Free Sn>=2.54µm |
| Solder Mask Color: |
Green, Psr-2000gt600d, Taiyo Supplied. |
| Colour Of Component Legend: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Via: |
Plated Through Hole(Pth), Via Tented |
| Flamibility Rating: |
UL 94-V0 Approval Min. |
| Test: |
100% Electrical Test Prior Shipment |
| Type Of Artwork To Be Supplied: |
Email File, Gerber RS-274-X, Pcbdoc etc |
| Type: |
Rigid Circuit Board |
| Flame Retardant Properties: |
V0 |
| Dielectric: |
RF-35A2 |
| Material: |
PTFE Polytetrafluorothylene |
| Insulation Materials: |
PTFE Polytetrafluorothylene |
Product Description

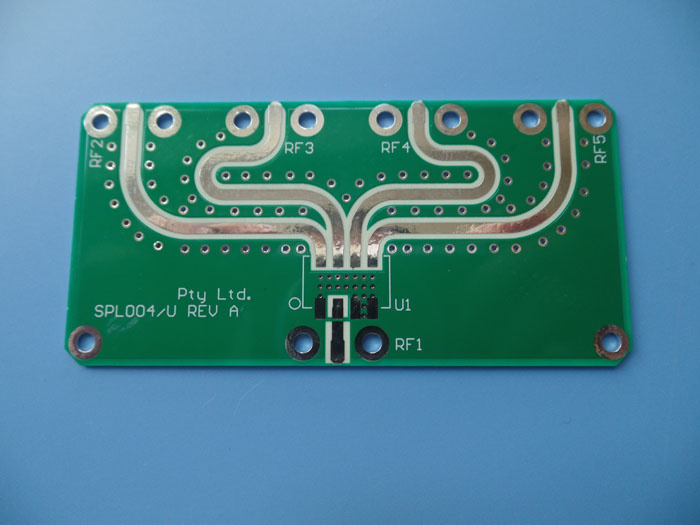

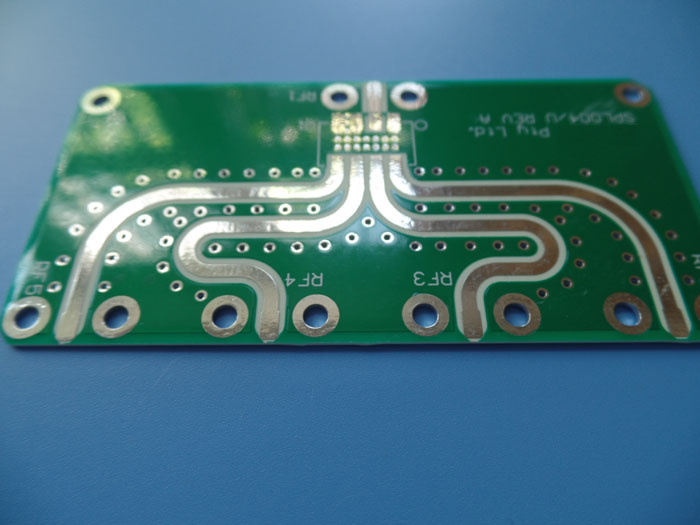

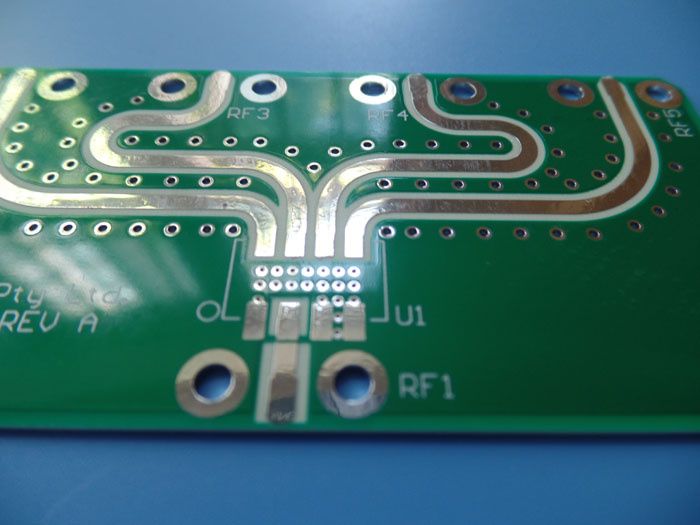

High Frequency PCB Taconic RF-35A2 0.508mm Thick Double Sided HASL Applied In Mixer.
Commodity IntroductionThis is a type of RF-35A2 PCB for the application of Mixer. It's a 2 layer board at 0.65mm thick.The
base laminate is from Taconic, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012
Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 106 x 63mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Double sided PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| RF-35A2 20mil (0.508mm) |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 15.9mil/16.1mil |
| Minimum / Maximum Holes: | 0.6/6.2mm |
| Number of Different Holes: | 5 |
| Number of Drill Holes: | 42 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | NO |
| BOARD MATERIAL | |
| Glass Epoxy: | RF-35A2 20mil (0.508mm) |
| Final foil external: | 1.5oz |
| Final foil internal: | 0oz |
| Final height of PCB: | 0.65mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | HASL ,Lead Free, Sn>=2.54µm |
| Solder Mask Apply To: | Top and Bottom,12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), Via tented |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Mixer, Ac Power Supply
3G Wifi
Modem Wireless
Router USB
Audio Electronics |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Fast PCB prototypes| Category | Fastest lead time | Stanardard lead time |
| 2 layer | 24 hrs | 4 days |
| 4 layer | 48 hrs | 5 days |
| 6 layer | 72 hrs | 7 days |
| 8 layer | 96 hrs | 9 days |
| 10 layer | 120 hrs | 11 days |
| 12 layer | 120 hrs | 12 days |
| 14 layer | 144 hrs | 15 days |
| 16-20 layer | Depends on specifications |
| 20 layer above | Depends on specifications |
