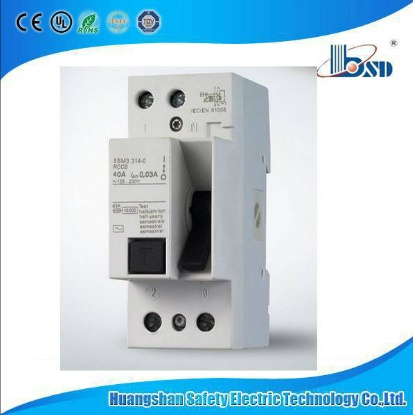

5sm1 2p 40A 30mA RCCB, Residual Current Circuit Breaker

Name: 5sm1 2p 40A 30mA RCCB, Residual Current Circuit Breaker
Brand: all-electronics-online.com
SKU: 812362635
Availability: InStock
Rating: 4.6 (115 reviews)

Price:	US $ 0.85-1.85/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	5SM1
Current:	6-80A
Quality Grade:	A Grade
Warranty Time:	2 or 3 Years
Service:	OEM and ODM Service
Delivery Time:	2 Weeks
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	High-Speed Circuit Breaker
Installation:	Fixed
Structure:	ELCB
Poles Number:	4
Certification:	CCC
Arc-extinguishing Medium:	RCCB

Product Description

Siemens 5SM RCCB (RCCB From 6A to 125A)

Application:

Suitable to the circuit of AC50/60Hz.rated voltage 230V for 2 poles and 400V for 4 poles, and rated current up to 63A.when people come across the electric shock or the leakage current of the electrical network exceeds the fixed value, this product can cut off the fault current in short period so as to protect person and the equipments, It also can be used in the infrequent starting of the circuit and motors.

Specifications:

Number of Poles 2P 4P
Rated Current (A) 6, 10, 16, 20, 25, 32, 40, 50, 63, 80, 125
Rated Residual Operating Current ()(mA) 30
Rated Residual Non-Operating Current ()(mA) 15
Rated Voltage (V) 230/440
Residual Current Off-time ≤ 0.1S
Breaking Capacity 6KA

MAIN TECHNICAL DATA:

Type	Un (V)	hZ	Im IΔm	Inc IΔm	In A	IΔn mA	IΔno mA	The maximum of break-time(s)
Type	Un (V)	hZ	Im IΔm	Inc IΔm	In A	IΔn mA	IΔno mA	IΔN	2IΔN	5IΔN	0.25A	500A
CY101R (5SM1) 2P	240	50/60	500A (In≥50A10In) (In≥50A)	6000A	6,10,16, 25,32,40, 50,63,80	30	15	0.2	0.1	-	0.04	0.04
						50	25	0.2	0.1	-	0.04	0.04
						75	40	0.2	0.1	-	0.04	0.04
						100	50	0.2	0.1	0.04	-	0.04
						300	150	0.2	0.1	0.04	0.04	0.04
						500	250	0.2	0.1	0.04	0.04	0.04
CY101R (5SM1) 4P	415		500A (In≥50A10In) (In50A)	6000A	6,10,16, 25,32,40, 50,63,80	30	15	0.2	0.1	-	0.04	0.04
						50	25	0.2	0.1	-	0.04	0.04
						75	40	0.2	0.1	-	0.04	0.04
						100	50	0.2	0.1	0.04	-	0.04
						300	150	0.2	0.1	0.04	0.04	0.04
						500	250	0.2	0.1	0.04	0.04	0.04

Huangshan Safety Electric Technology Co., Ltd., is located in the Huangshan city, which is one of the leading manufacturer and exporter in the field of low voltage electric appliance in China,

We produce circuit breaker (MCB, ELCB, RCCB, RCBO, MCCB),

AC capacitor (low voltage power capacitor, motor run and starting capacitors, lighting capacitors, )

Pushbutton, switches, contactor, indication lamps, distribution box, etc series products, at present, we have more 200 workers and with about 20000 square meters building workshop for the production line,

We have gotten the ISO9001, CCC, , CE, TUV, UL certificate. We produce top quality all along and meet customers' quality requirement,

We have the development department by ourselves, we can offer OEM, ODM service and develop new products every year.

We promise to offer you superior products, favorable price, and timely delivery.

If you are interested in cooperating with us, please feel free to contact with us in your earliest convenience time.
