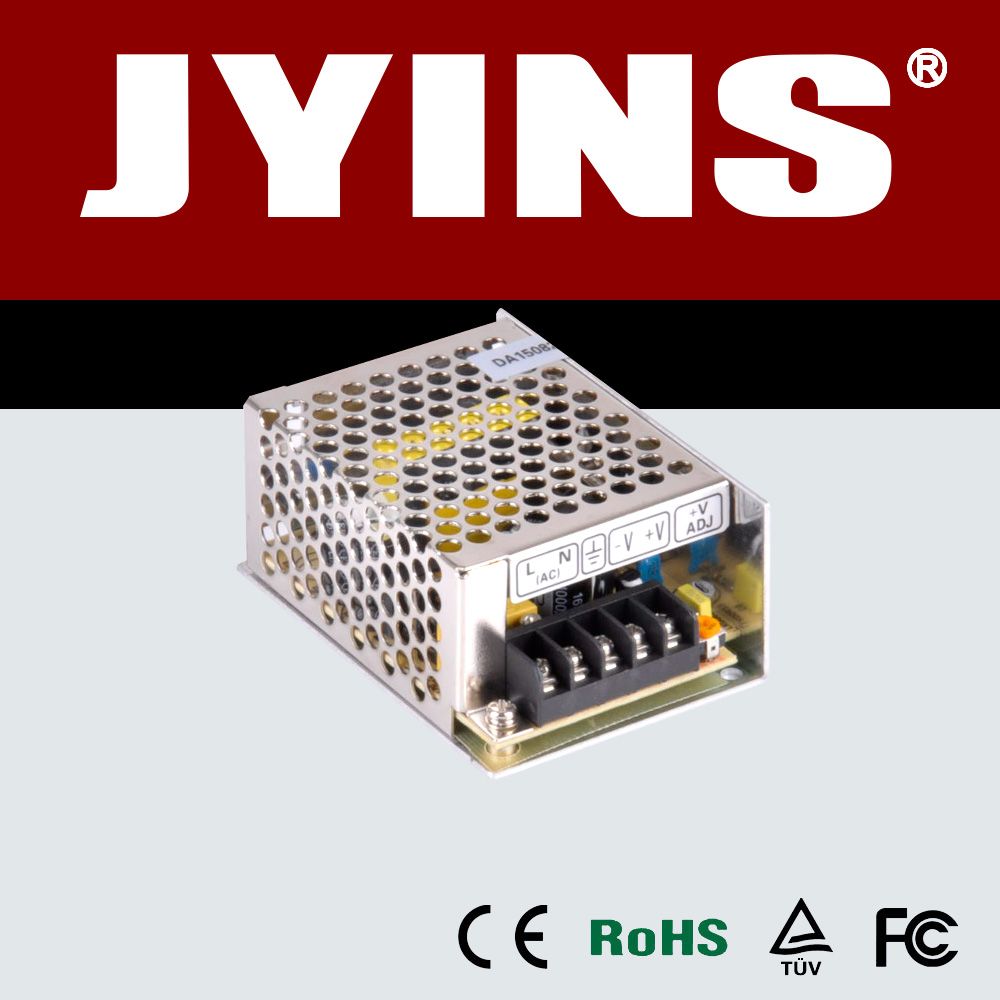

5V/2A, 10W Mini Switching Power Supply
| Price: |
US $ 3.50-5/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
S-10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
18 Months |
| OEM, ODM: |
Accepted |
| Input Volt: |
5V/12V/24V |
| Efficiency: |
88% |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
1 - 50W |
| Input Voltage: |
Full Range |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Level 1 Power Distribution Equipment |
| Certification: |
RoHS |
| Brand: |
Jyins |
Product Description
Mini Switching Power Supply full range, 10W, 18 months warranty(S-10)
1. Our company is a professional manufacture and OEM.
Our products obtain CE and ISO9001 Certificate and according to IEC 521 international standard to.
2. Low price and high reliability
105 C output capacitor
AC input power suitable for the world
Hight efficiency and low operation temperature
Soft-start current can reduce the AC input impact effecticly
With Short-circuit and owwerload protection
Compact size, light weight
100% full-load burning test
Installed with EMI filter, minimum wave
Low price and high reliability105 output capacitorAC input power suitable for the worldHight efficiency and low operation temperatureSoft-start current can reduce the AC input impact effecticlyWith Short-circuit and owwerload protectionCompact size, light weight100% full-load burning testInstalled with EMI filter, minimum wave.
Model /Specification |
S-10-5 |
S-10-12 |
S-10-24 |
DC output voltage |
5V |
12V |
24V |
Output voltage error (Note2) |
±2% |
±1% |
±1% |
Rated output current |
2A |
0.8A |
0.4A |
Output current rage |
0-2A |
0-0.8A |
0-0.4A |
Wave and noise(Note3) |
50mVp-p |
50mVp-p |
100mVp-p |
Inlet stability(Note4) |
±0.5% |
±0.5% |
±0.5% |
Load stability(Note5) |
±1% |
±0.5% |
±0.5% |
DC output power |
10W |
10W |
10W |
Efficiency |
65% |
68% |
72% |
Adjustable range for DC voltage |
±10% |
±10% |
±10% |
AC input voltage range |
85~264VAC 47~63Hz |
Input current |
0.5A/115V 0.25A/230V |
AC impulse current |
Cold-start current 15A/115V 30A/230V |
Leakage current |
<0.5mA/240VAC |
Overload protection |
105%~150%Type: current limiting ;Reset: auto recovery |
Over-voltage protection |
^^ |
High-temperature protection |
^^ |
Temperature coefficient |
±0.02%(0~50) |
Setup rise hold up time |
200ms,100ms,30ms |
Vibration |
10~500Hz,2G 10min./1cycle,Period for 60min,Each axes |
Withstand voltage |
Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC |
Isolation resistance |
Input and output interval,Input and enclosure,Output and enclosure:0500VAC/100M Ohms |
Working temperature and humidity |
-10~+50,20%~90%RH |
Store temperature and humidity |
-20~+85,10%~95RH |
Overall dimension |
69 x 75 x 28mm |
Weight |
0.12Kgs |
Safety standards |
Meet UL1012 |
EMC standards |
^^ |
Note:1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity
2.Error,include the setting error, line stability and load stability.(Note:5)
3.Wave test:adopting"A12"double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
5.Load stability test:The load is from 0% to 100%,others 60%.
6.C2\3\11must be knocked down. |
