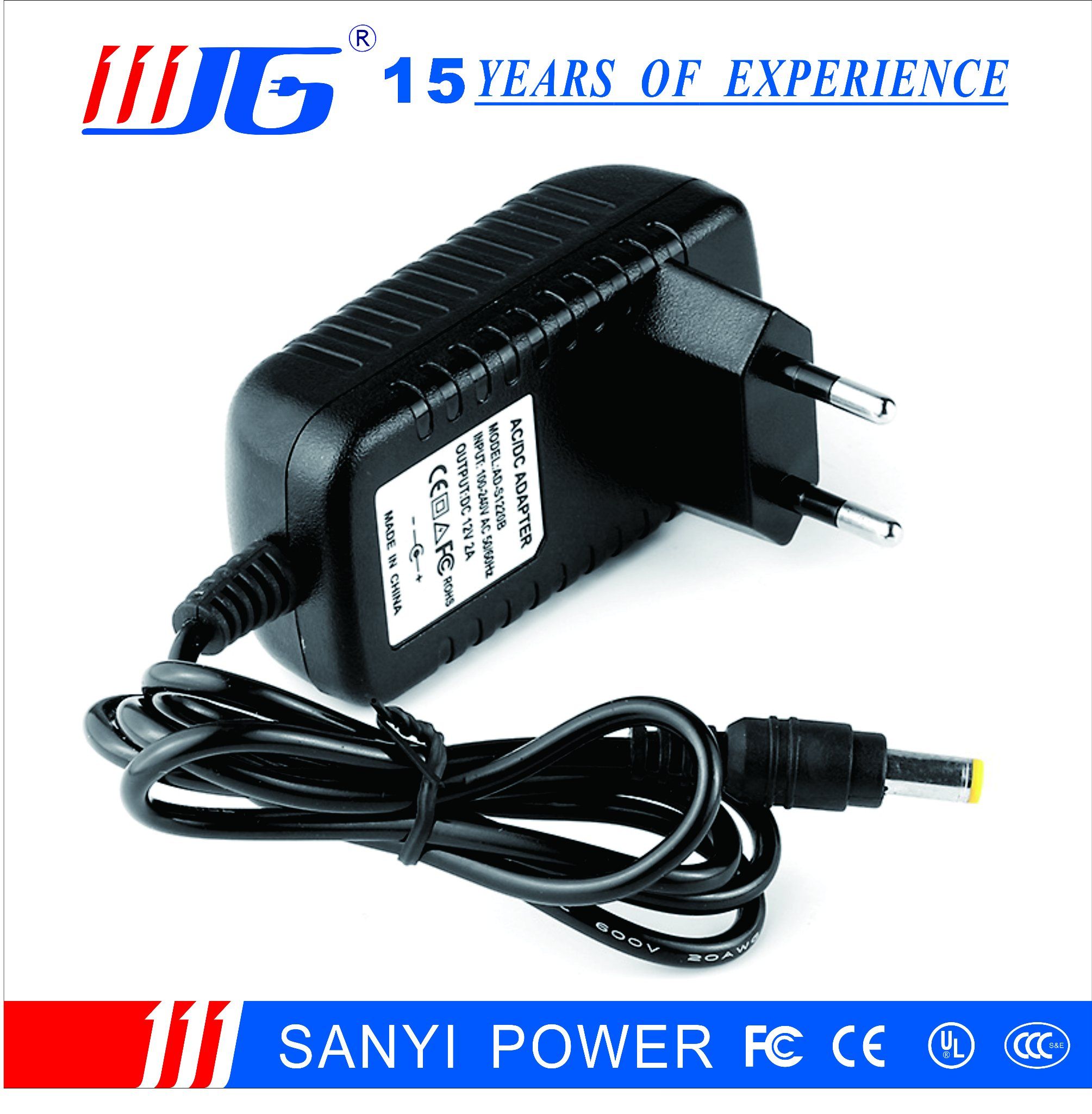

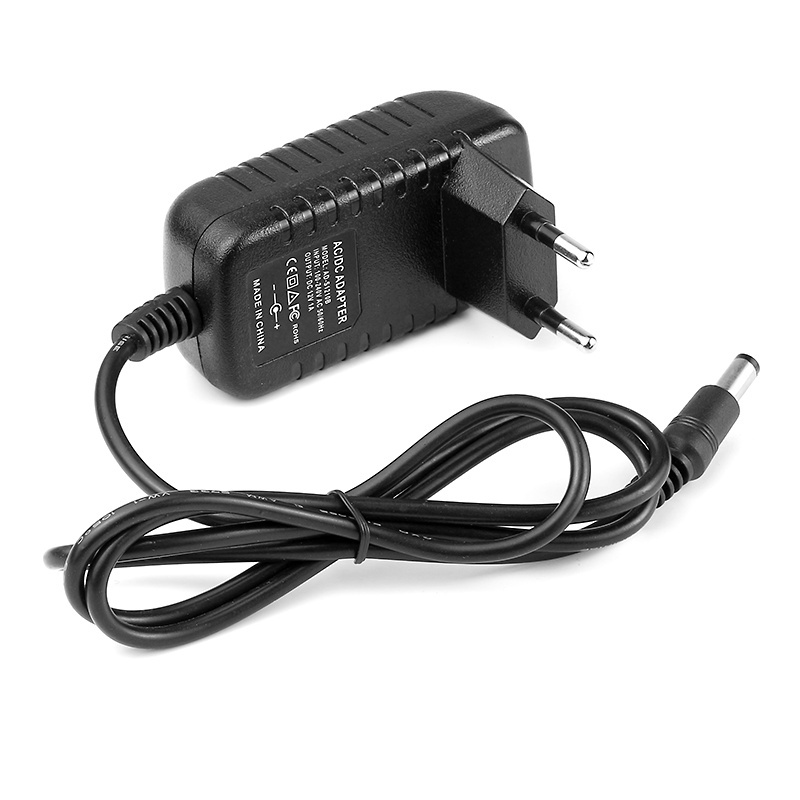

5V/9V/12V AC/DC Power Adapter with EU Plug-in
| Price: |
US $ 1.5-2.5/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
AD-S1210B0(02) |
| Input Frequency Range: |
50/60Hz |
| Input Voltage: |
110V-240V |
| Usage: |
Security System/LED Lighting |
| Output Type: |
AC or DC |
| Connection: |
Plug In |
| Certification: |
FCC Ce |
| Color: |
Black/White |
| Type: |
OEM/ODM |
| Brand: |
Sanyi Power |
Product Description
12V1A EU Plug Universal AC/DC adapter (UK,AU,US,JP,EU plug is are optional)1.FEATURES:
>Input Voltage Range:90Vac-264Vac
>No load power consumption<0.5W
>Input Current Harmonic: EN60950-1
>Output voltage Ripple and Noise: <120mVp-p
>Output 12Vdc 1A
>Universal AC input/Ful range
>Built in EMI filter
>High efficiency,long life and high reliability
>Protections: Short circuit / Over load / Over voltage
>Can be customized according to user selctions(Current and Voltage can be adjusted) >Fully enclosed plastic caseELECTRICAL CHARACTERISTICS>Efficiency: >= 75%
>Turn-On Delay Time:300mS
>Load Regulation: 5% max.
>Hold-up Time: 5mS min.
>Dielectric Strength:(Hi-Pot):Between AC input and secondary applied AC 3.0kV,test time 1 minute, and cut off current shall be less than 10 mA.AC 3.0kV,test time 10 Sec.for mass production.
>Insulation Resistance: Between AC input and secondary applied 500Vdc,test time 1 minute. 500Vdc,test time 10 Sec.for mass production. ≥100MΩENVIRONMENTAL>Operating Temperature: 0 to 50oC
>Storage Temperature: -40 to 85oC>Relative Humidity: 5 to 95%2.Model:Certificated by UL,TUV,CCC,CE,UL,CB,FCC,and RoHS

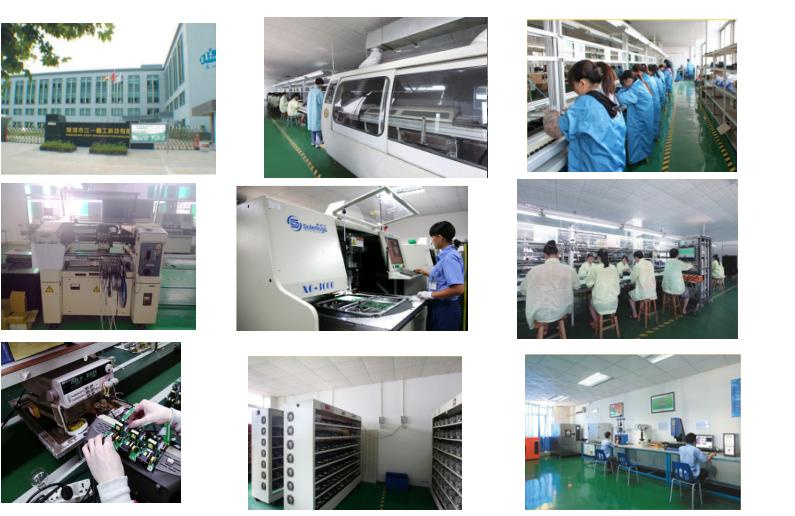

3.Factory Profiles
4.Certificate
5.FAQ| Q1:What kind of payment term do you accept ? |
| A1:T/T,L/C,Paypal,Western Union |
| Q2: What is your MOQ ? |
| A2:The MOQ can be 1Pcs |
| Q3:What's your lead time ? |
| A3:The delivery time is 1-25days which depend on detail items and quantity. |
| Q4:Do you accept OEM ODM ? |
| A4: Yes,Customized specification & structure /Print logo on your products/Customized color package box |
| Q5:What is the warranty for your product? |
A5:All our products have been strictky quality checked before packing. Our repare rate under 0.1%~0.2% .We have the best
professional and experienced engineer and we are very strict QA and QC .So,You don't need worry about the quality
problem if cooperate with us. |
| Q6:Can we be your distributor? |
| A6:Yes,If your annual sales much more than our other customers in your country,that your can be our distributor. |
6.ContactSHENZHEN SANYI TECHNOLOGY CO.,LTD Web: www.szsanyi.com
Attn:Ruby
Phone:+86 15207552952
Tel: +86 755 28986673
Add: Floor 4, Block 1,HongJiaTai Industrial Area, XinTun Village,AiLian Community, LongGang District,Shenzhen 518172,China
SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.
We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.
We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
