| Prod Model: |
CU/XLPE/CTS/PVC/STA/PVC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Jacket: |
PVC |
| Conductor Shape: |
Round/Sector |
| Cores Number: |
1-30 Cores |
| Feature: |
Flame-Retardant |
| Delivery: |
Based on Quantity |
| Voltage: |
Low and Medium Voltage Cable |
| Insulation Material: |
XLPE |
| Current: |
AC Cable |
| Application: |
Power Station |
| Certification: |
CCC |
Product Description

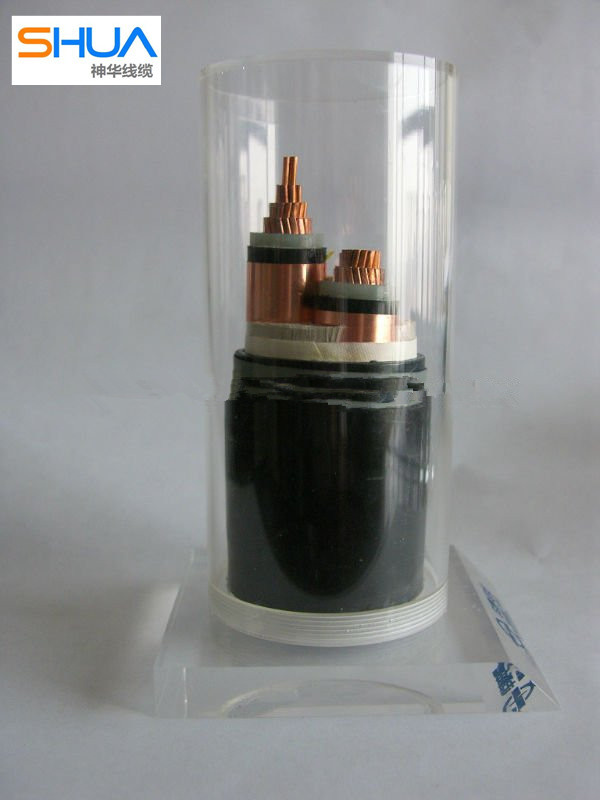

Rate 35kV And Below Armoured Cable XLPE/PVC Insulated Power Cable
Model: NYY, NAYY, YVV, NYCY, NYRY, NA2XY, YE3SV, YE2SHSV, NAYCVVY, NA2XY, N2XY, N2XRY, YVZ3V ETC.
PVC Electrical Cable:
Cu(Al)/PVC/PVC Cable
Cu(AL)/PVC/SWA/PVC Cable
Cu(AL)/PVC/AWA/PVC Cable
Cu(Al)/PVC/STA/PVC Cable
XLPE Electrical Cable:
Cu(Al)/XLPE/PVC Cable
Cu(AL)/XLPE/SWA/PVC Cable
Cu(AL)/XLPE/AWA/PVC Cable
Cu(Al)/XLPE/STA/PVC Cable Cable
Standard: BS5467: 1997 with Amendment 1, IEC60502
Conductor: Solid or stranded copper
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)
Voltage rating: 0.6/1kV, 3.6/6kV; 6/10KV; 8.7/15KV; 12/20KV; 18/20KV; 21/35KV; 6/35KV
Model andSpecification
Model
|
Name
|
Main Application
|
Cu
|
Al
|
ZRA,ZRB,ZRC
|
VV
|
VLV
|
Cu(Al)core flame-retardant PVC insulated PVC sheathed power cable
|
For fixed-laying upon flame-retardant reqiuirement
|
YJV
|
YJLV
|
Cu(Al)core flame-retardant XLPE insulated PVC sheathed power cable
|
For fixed-laying upon flame-retardant reqiuirement.
|
VV22
|
VLV22
|
Cu(Al)core flame-retardant PVC insulated PVC sheathed steel tape armored cable
|
For flame-retardant fixed-laying ,able to bear larger mechanical forces
|
YJV22
|
YJLV22
|
Cu(Al)core flame-retardant XLPE insulated PVC sheathed steel tape armored cable
|
For flame-retardant fixed-laying ,able to bear larger mechanical forces
|
VV32
|
VLV32
|
Cu(Al)core flame-retardant PVC insulated PVC sheathed thin steel wire armored power cable
|
For flame-retardant fixed-laying ,able to bear larger mechanical forces with high tensile strength
|
YJV32
|
YJLV32
|
Cu(Al)core flame-retardant XLPE insulated PVC sheathed thin steel wire armored power cable
|
For flame-retardant fixed-laying ,able to bear larger mechanical forces with high tensile strength
|
VV42
|
VLV42
|
Cu(Al)core flame-retardant PVC insulated PVC sheathed thick steel wire armored power cable
|
For flame-retardant fixed-laying ,able to bear larger mechanical forces with high tensile strength
|
YJV42
|
YJLV42
|
Cu(Al)core flame-retardant XLPE insulated PVC sheathed thick steel wire armored power cable
|
For flame-retardant fixed-laying ,able to bear larger mechanical forces with high tensile strength
|
