6 12 Core 0.9mm LC PC Fiber Optic Om3 Pigtail

Name: 6 12 Core 0.9mm LC PC Fiber Optic Om3 Pigtail
Brand: all-electronics-online.com
SKU: 821820035
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	US $ 5-10/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	LK-04LC112
Sample:	Avaliable
Application:	Probe
Type:	Single-mode Fiber
Connection Structure:	LC
Certification:	ISO9001

Product Description

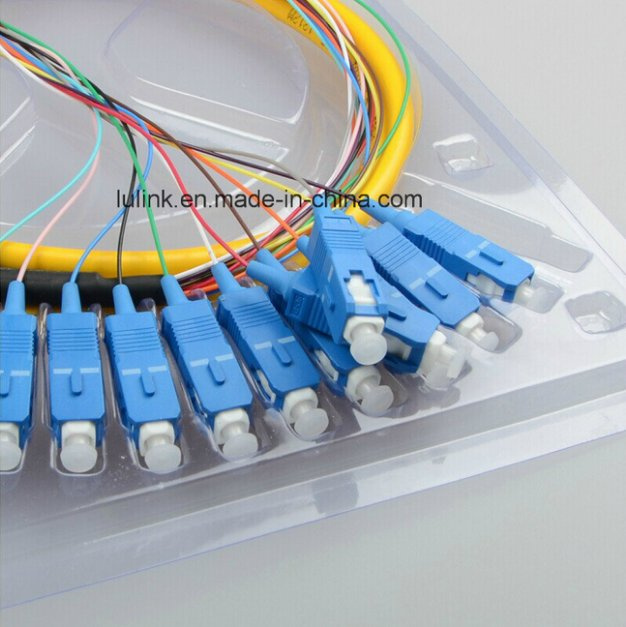

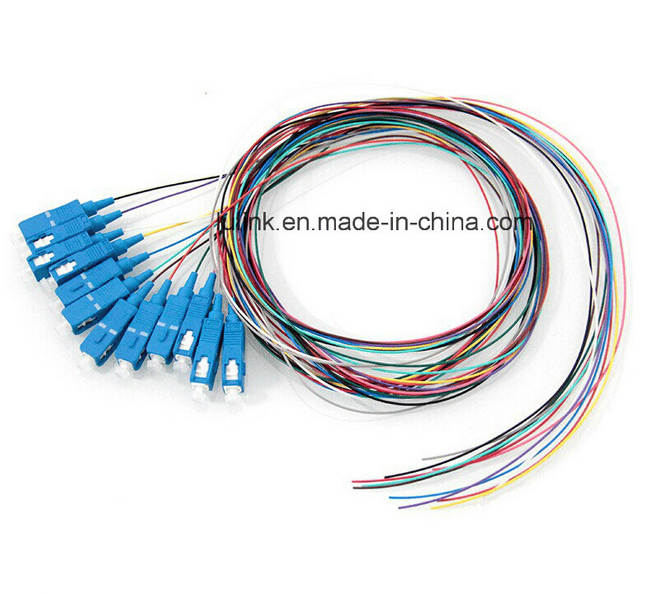

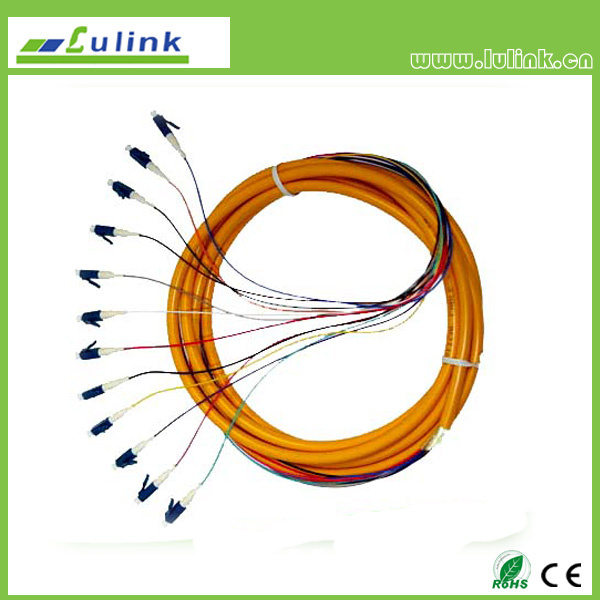

6 12 Core 0.9mm LC PC Fiber Optic Om3 Pigtail

Descripction:
Fiber optic fan-outs are designed for patch
panels or cable ducts where space-saving is required. The patch panels have either array
fusion splicing (between outside plant cables
and bare ribbon pigtails) or array interconnections (MPO/MTP fan-out). For cables that run from patch panels to equipment or patch panels to patch panels, the fan-out cords with either ribbon cables or distribution cables can save space for cable ducts. Distribution cables are more rugged than ribbon cables. Most popular connectors, such as SC*1, FC*1, ST*2, LC, E2000*3, MU, DIN, D4, and MPO/MTP*4 are available. A fan-out cord can have MPO/MTP at one end, and fan-out terminated with single fiber connectors at the other end. The fan-out tube has a choice of 900um or 2mm.

Features Applications:
n 4, 6, 8 and 12-fiber count available
n Save duct space and installation time
n 900um, or 2mm fan-out tube
n Easy to use
n Jacketed ribbon cables, bare ribbons, or
distribution cables
n Telecommunication
n Long haul networks
n CATV networks
n Building interconnections

Characteristics Unit Value/Performance:
Fiber Count - 4, 6, 8 or 12
Cable Type - Bare ribbon, jacket ribbon or distribution cable
Optical Performance - See corresponding patch cord data sheets
Fan-out Diameter 900um 2mm
Operating Temperature °C 0 ~ +70°C -20 ~ +70°C
Storage Temperature °C -5 ~ +70°C -40 ~ +70°C
Tensile strength kg >2.5kg >6.8k
